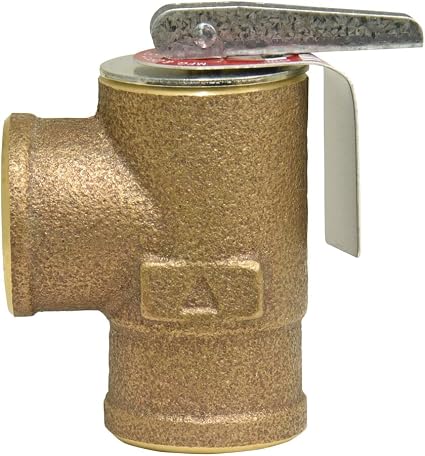

Watts 335M2-030 3/4 Bronze Boiler Pressure Relief Valve 30 PSI 3/4 Inch

Product Description

The WATTS 335M2-030 3/4 pressure safety relief valve is designed for commercial and industrial applications, specifically for low pressure steam heating boilers and process equipment. It features a durable bronze body construction with NPT threaded female inlet and outlet connections. This valve incorporates a stainless steel spring, a top-guided stem, and a non-stick Teflon disc-to-metal seating, with a pressure relief setting of 30 psi.

• High heat resisting silicone disc
• Positive shut off
• ASME Section IV at 30 psi set point

Product Highlights

This valve ensures pressure protection for boilers and process equipment with a 30 psi relief setting and robust bronze construction.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 335M2-030 3/4
• Country of Origin: UNITED STATES

Technical Specifications

• Body Material: Bronze
• EAN: 098268784190
• Inlet Connection Size: 3/4 Inch
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Lead Free: Not In Scope
• Maximum Temperature: 250 Fahrenheit
• Maximum Working Pressure: 20 PSI
• Outlet Connection Size: 3/4 Inch
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPT
• Part Number: 0342691
• Pressure Relief Setting: 30 PSI
• Pressure Steam Discharge Capacity: 510,000 BTU per hour
• Protection Type: Pressure
• Series: 335
• Exterior Finish: Bronze
• Number of Ports: 2
• Smart Home Compatibility: Not Smart Home Compatible
• Valve Type: Safety Relief Valve
• Specification Met: ASME
• Model Number: 335M2-030 3/4
