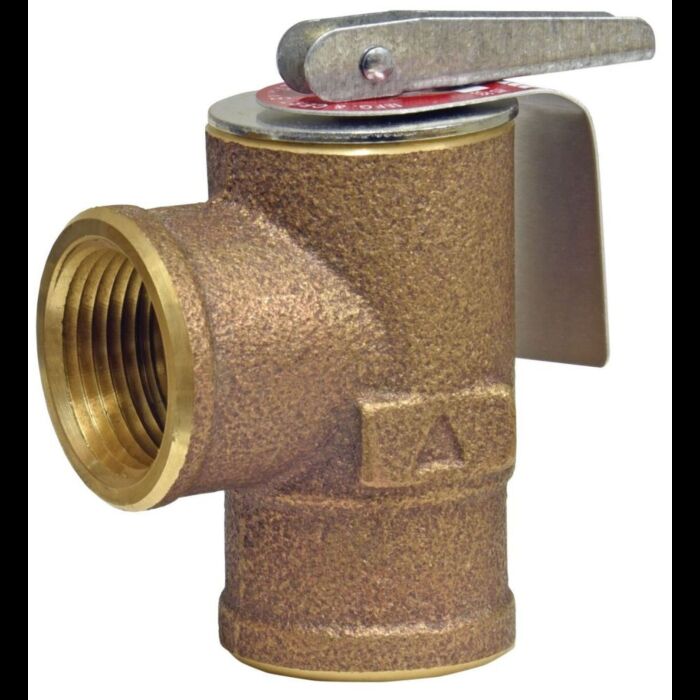

Watts 33534 335M2-030 3/4 inches Female 30 psi Press

Product Description

The Watts 33534 (0342691) is a 335M2-030 3/4" Female 30 psi Press Relief Valve, 550,000 Btu. It features a seat located above the drain and positive shut-off. Designed for commercial, industrial, steam heating boiler, and process equipment applications. Compact design with all bronze construction.

• Seat Located above Drain
• ASME Section IV at 30 PSI Set Point
• Positive Shut-Off

Product Highlights

3/4" Female 30 psi Press Relief Valve with bronze body, stainless steel spring, and high heat resisting silicone disc.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 33534

Technical Specifications

• Body Material: Bronze
• Individual Item Weight: 0.500 Pound
• Inlet Size: 3/4 Inch
• Manufacturer Name: Watts Water Technologies, Inc. (Watts)
• Manufacturer Part Number: 0342691
• Outlet Size: 3/4 Inch
• Series/Model: 335
• Set Pressure Range: 30 PSI
• Temperature Rating: 250 Deg F
• Type: Pressure
• UNSPSC: 40141606
• UPC: 098268784190
