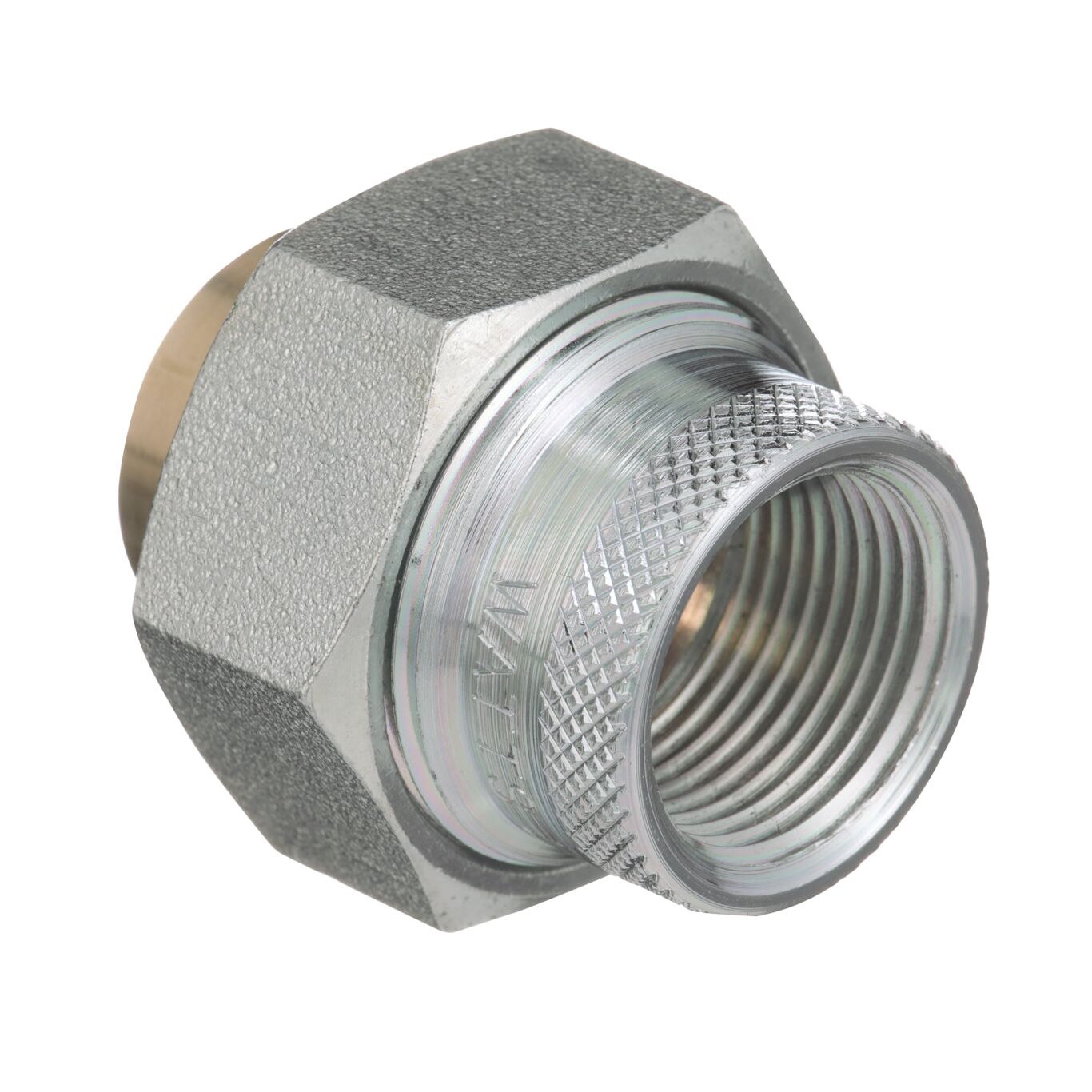

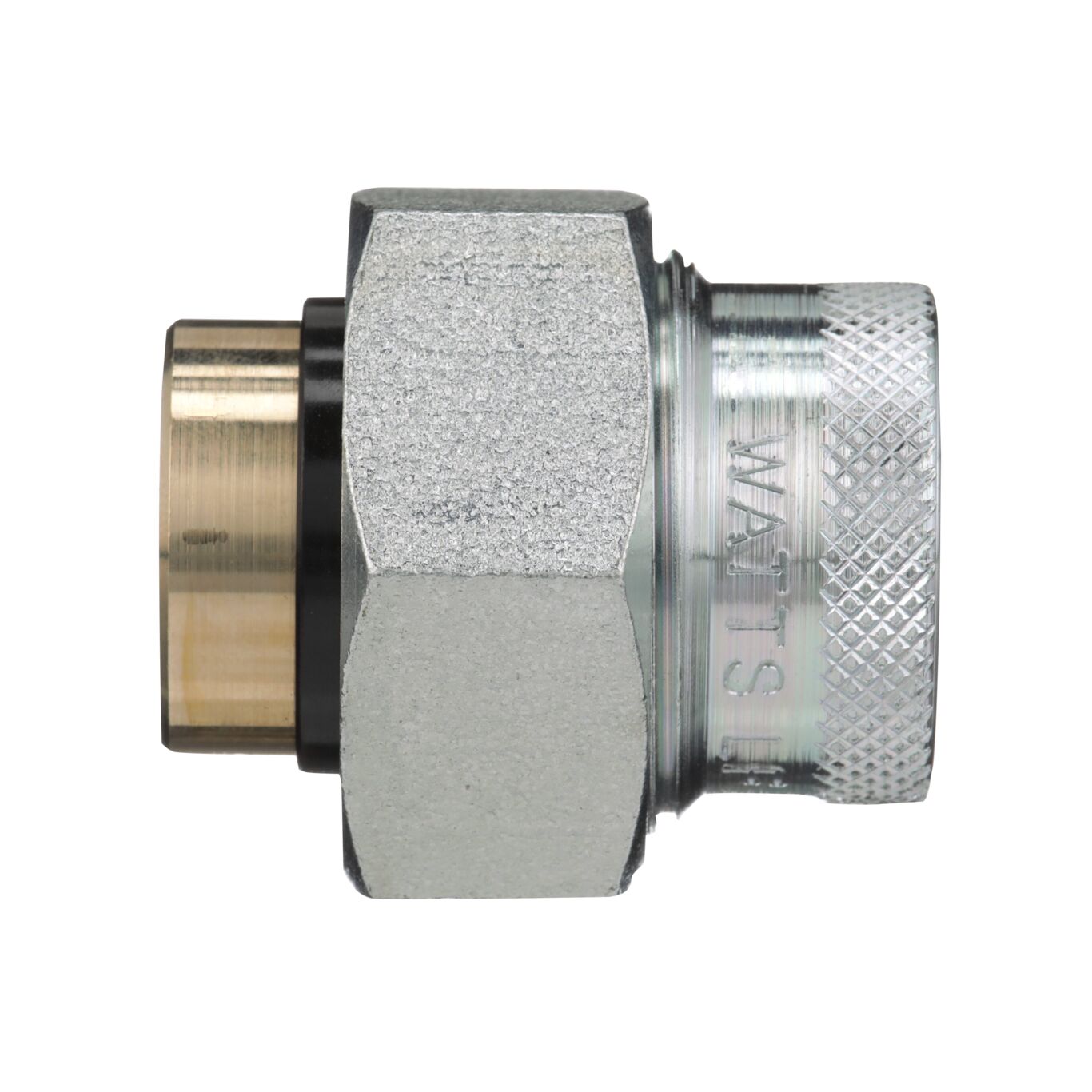

WATTS 3001A Dielectric Unions FIP Thread to Solder Connections

Product Description

The WATTS 3001A Series Dielectric Unions serve as essential components in both commercial and residential plumbing systems. This union helps to prevent corrosion caused by galvanic and stray currents. It effectively connects pipes made of different metals, ensuring minimal wear and maintenance over time.

• Prevents corrosion between dissimilar metal piping
• Rated for a maximum pressure of 250 psi
• Ideal for various applications including water heaters and air conditioning systems

Product Highlights

This dielectric union is an effective solution for extending the life of your piping systems, especially for hot water applications.

Product Information

Standard Information

• Brand: WATTS
• MPN: 3001A

Technical Specifications

• Maximum Pressure: 250 psi
• Connection Type: Female Iron Pipe Thread to Solder
• Nominal Size: 1-1/4 inch
• Material: Brass
• Length: 2-1/2 inches
• Temperature Rating: 180 Degrees F
• Industry Standards: Meets Federal Specifications
• Width Across Flat: 1-7/8 inches
