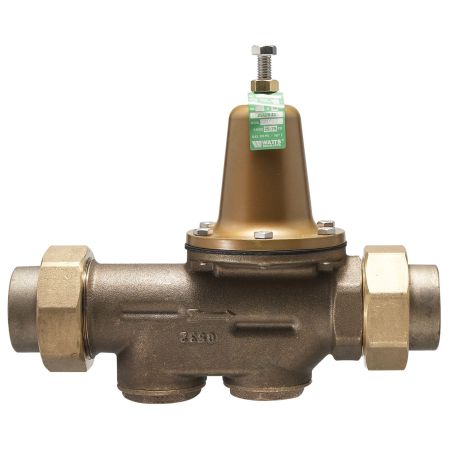

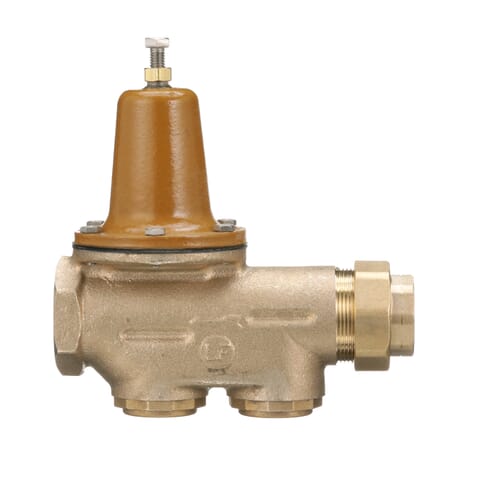

WATTS 25AUB-Z3 1 1/4 IN Water Pressure Reducing Valve NPT Female Union x NPT Female

Product Description

The WATTS 25AUB-Z3 is a one and one-fourth inch water pressure reducing valve made from bronze. It lowers incoming water pressure in various settings including commercial, industrial, and residential spaces. The valve features a replaceable seat module and connections designed for NPT threaded female unions.

• Bypass feature manages thermal expansion pressure
• Sealed spring cage with stainless steel screws
• Integral stainless steel strainer that can be removed for easy cleaning

Product Highlights

This device is suitable for pressures up to three hundred psi and allows users to adjust the pressure within a range of twenty-five to seventy-five psi.

Product Information

Standard Information

• Body Material: Bronze
• Brand: WATTS
• Lead Free: No
• Bypass Feature: Yes
• Strainer: Yes

Technical Specifications

• Adjustable Reduced Pressure Range: 25 to 75 psi
• Inlet Connection Size: 1 1/4 IN
• Inlet Connection Type: Union Joint
• Outlet Connection Size: 1 1/4 IN
• Maximum Working Pressure: 300 psi
• Maximum Operating Temperature: 160 °F
• Minimum Temperature: 33 °F
• Strainer Material: Stainless Steel
