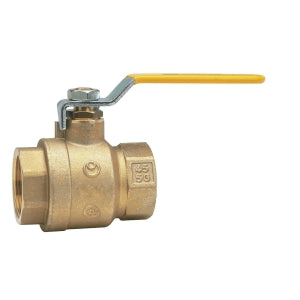

Watts 250FBV3BV 2-1/2 FP THRD BRZ BALL VALVE

Product Description

The Watts 250FBV3BV is a two-piece, full-port brass ball valve. This valve is suitable for use in various commercial and industrial applications. It provides reliable performance in managing a broad range of liquids and gases. The design includes a bottom-loaded, blowout-proof stem and virgin PTFE seats for durability.

• Works with liquids and gases
• Full-port design minimizes pressure drop
• Temperature range from minus forty to four hundred degrees Fahrenheit

Product Highlights

This valve is built with a forged brass body and has a lever handle made from steel. It features a chrome-plated brass ball and adjustable stem packing. The minimal operating torque supports quick quarter-turn operation, making it ideal for various throttling tasks.

Product Information

Standard Information

• Manufacturer: Watts
• Type: 2-Piece, Full-Port

Technical Specifications

• Nominal Size: 2-1/2 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (WOG), 125 PSI (WSP)
• Temperature Rating: -40 To 400 DEG F
• Body Material: Forged Brass
• Operator Type: Lever Handle
• Handle Material: Steel
• Stem Material: Brass
