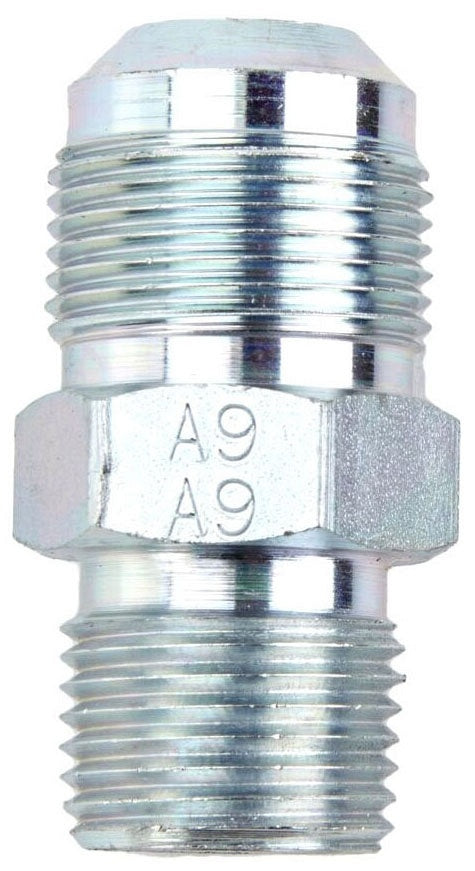

Watts 240194 Gas Connector Adapter 5/8 Od Flare X 1/2M X 3/8 Fip

Product Description

The WATTS 240194 is a gas connector adapter designed to transition between three distinct connection types in a single fitting: a 5/8 inch OD flare inlet, a 1/2 inch male threaded outlet, and a tapped 3/8 inch female iron pipe (FIP) port. This type of multi-port adapter is used to connect flexible gas connectors to appliance valves or supply lines where the thread and flare specifications do not match directly. Licensed plumbers and gas fitters install this fitting during appliance hookup or line conversion work on natural gas and propane systems.

This adapter is suited for residential and light commercial gas appliance installations where flexible stainless steel gas connectors terminate in a 5/8 inch OD flare and the appliance or valve inlet calls for a 1/2 inch male thread with an auxiliary 3/8 inch FIP tapped port. It is commonly encountered during range, dryer, or water heater connections where a branch or secondary gas takeoff is required at the same fitting location.

Key Features

• Three-way adapter combines 5/8 inch OD flare, 1/2 inch male, and 3/8 inch FIP in one fitting
• Tapped 3/8 inch FIP port allows a secondary gas connection or branch line without additional fittings
• Designed for use with flexible gas connectors on natural gas and propane appliances
• Compact single-body construction reduces potential leak points versus multi-fitting assemblies

Compatibility

Designed as a replacement or installation adapter for gas connector applications requiring a 5/8 inch OD flare inlet mated to a 1/2 inch male thread outlet with a tapped 3/8 inch FIP port. Also cataloged under reference number 90-3031.

Installation Notes

Installation must be performed by a licensed plumber or qualified gas fitter in accordance with local gas codes and IFGC requirements. Shut off the gas supply at the meter or main shutoff valve before making any connections. Apply an approved thread sealant or PTFE tape rated for gas service to all threaded connections. After installation, test all joints with a listed leak-detection solution before restoring gas service.

Technical Specifications

• Inlet Connection: 5/8 inch OD Flare
• Outlet Connection: 1/2 inch Male Thread
• Tapped Port: 3/8 inch Female Iron Pipe (FIP)
• Reference Number: 90-3031

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 240194
