Watts 220084 Wye Strainer 2.5 in Cast Iron 250 Psi

Product Description

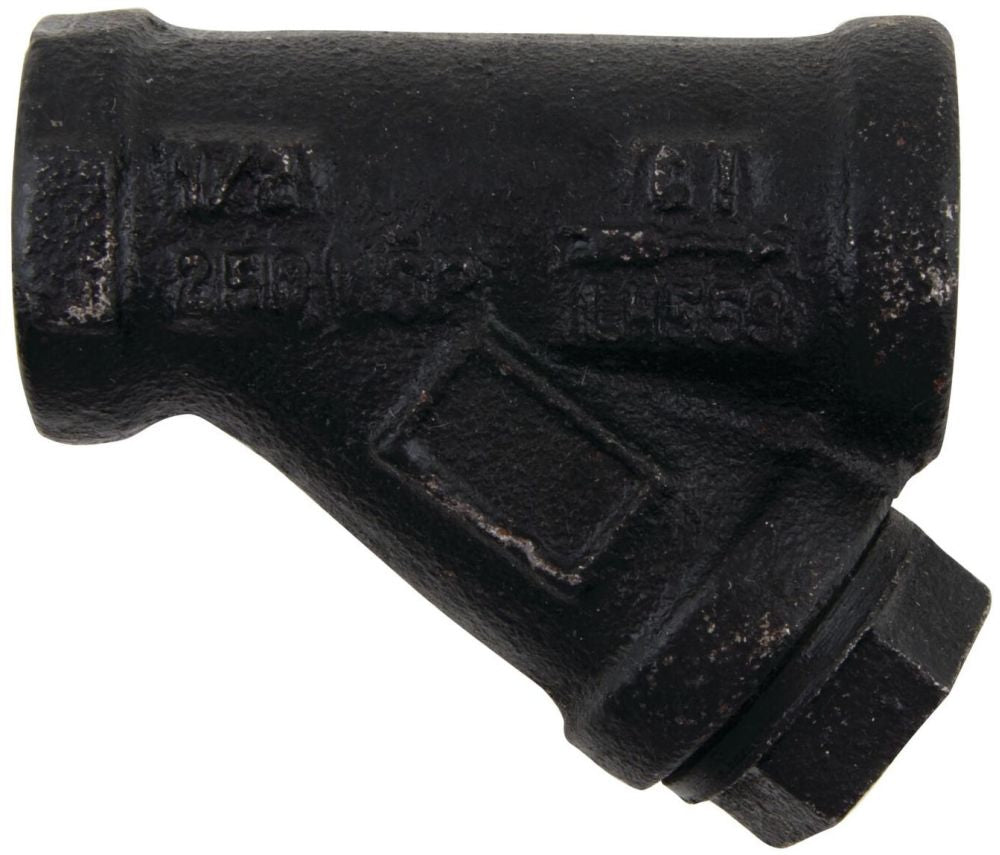

The WATTS 220084 is a 2.5-inch cast iron wye strainer designed for IPS piping systems rated to 250 psi. It features a 3/64-inch mesh screen that captures debris and particulates before they reach downstream equipment such as valves, pumps, meters, and control devices. A 1-inch female pipe thread (FPT) blowdown port allows technicians to flush collected debris without removing the strainer body from the line. At 25.90 pounds, this is a heavy-duty unit suited for commercial and industrial piping installations. Licensed plumbers and pipefitters typically install this strainer as part of a mechanical room or process piping layout.

This strainer is used in commercial plumbing, HVAC hydronic systems, and industrial fluid-handling applications where protecting downstream components from pipe scale, sediment, and debris is required. The wye configuration allows in-line installation with minimal pressure drop. The cast iron body is appropriate for closed-loop water systems, chilled water lines, and similar non-corrosive fluid services. The FPT blowdown connection makes periodic maintenance straightforward without full system shutdown.

Key Features

• Cast iron body rated to 250 psi for heavy-duty piping applications
• 2.5-inch IPS end connections for standard pipe system integration
• 3/64-inch mesh screen captures fine particulates and pipe scale
• 1-inch FPT blowdown port allows field cleaning without removing strainer from line
• Wye-style geometry minimizes flow restriction and pressure drop
• Heavy construction at 25.90 pounds supports long service life in demanding installations

Compatibility

Designed as an OEM-style replacement or new-installation wye strainer for 2.5-inch IPS cast iron piping systems operating at up to 250 psi in commercial plumbing and hydronic applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC and local mechanical codes. Shut off and depressurize the system completely before making any pipe connections or opening the blowdown port. The wye body should be oriented so the strainer screen pocket points downward or as specified by the system designer to allow sediment collection and effective blowdown. Use appropriate pipe thread sealant on all threaded connections and verify torque with pipe wrenches sized for the connection diameter.

Technical Specifications

• Fitting Size: 2.5 inches
• Fitting Material: Cast Iron
• Type: Wye Strainer
• Pressure Rating: 250 psi
• End Connection: IPS
• Mesh Size: 3/64 inch
• Blowdown Connection: 1 inch FPT
• Weight: 25.90 pounds

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 220084
