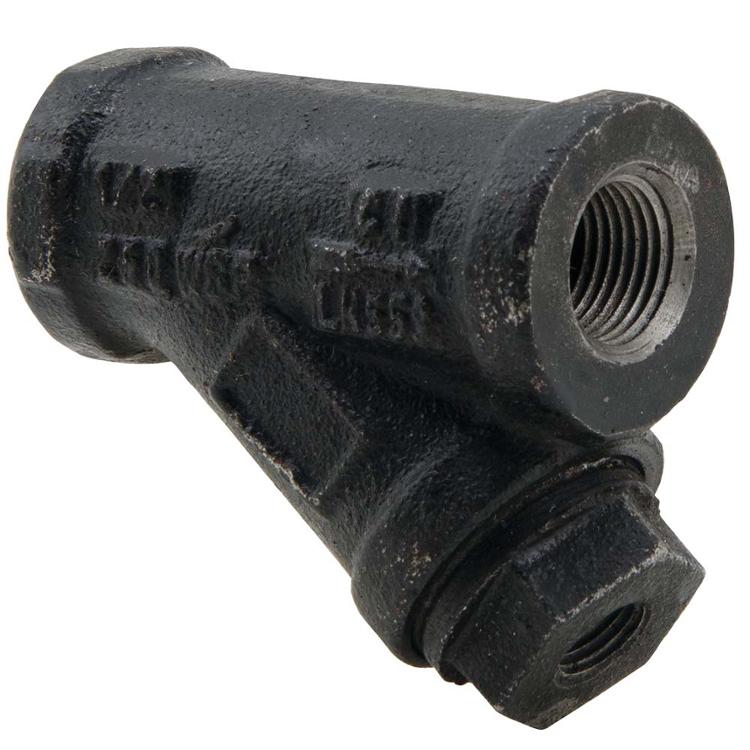

Watts 220075 1 Inch Cast Iron Wye Strainer 400 Psi

Product Description

The WATTS 220075 is a wye pattern pipe strainer designed to remove dirt, rust, scale, and debris from piping systems carrying water, oil, or gas. Built with a cast iron body and threaded IPS connections, this 1-inch strainer fits inline to protect downstream components such as valves, meters, pumps, and control equipment. The machined seat ensures the mesh screen is self-aligning for a reliable, consistent fit during installation and service. Rated to 400 psi, it is suited for demanding liquid and steam applications where system cleanliness is critical. Licensed plumbing and pipefitting contractors are the primary installers of this type of inline strainer.

The 220075 is used in residential and commercial piping systems handling water, oil, or gas. Its wye configuration allows the strainer basket to be accessed and cleaned without removing the body from the line, making it a practical choice for mechanical rooms, boiler systems, and process piping where regular maintenance access is needed. The tapped retainer cap provides a convenient port for blowdown or inspection. Steam and liquid service applications are both supported.

Key Features

• Cast iron body construction for durability in demanding piping environments
• Wye pattern design allows inline screen removal and cleaning without line disassembly
• Tapped retainer cap enables blowdown or inspection access
• Machined seat provides self-aligning screen fitment for a consistent seal
• Threaded IPS connections for standard pipe installation
• Rated to 400 psi for high-pressure water, oil, and gas service

Compatibility

Designed as an OEM-style inline strainer for 1-inch IPS threaded piping systems in water, oil, and gas service, including steam and liquid applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code. Shut off and depressurize the line completely before installing or servicing the strainer. Orient the wye body so the screen leg points downward to allow debris to collect by gravity and to facilitate drainage during cleaning. Do not overtighten threaded connections; use appropriate thread sealant compatible with the service fluid.

Technical Specifications

• Connection Size: 1 inch IPS
• Connection Type: Threaded
• Body Material: Cast Iron
• Pattern: Wye
• Pressure Rating: 400 psi
• Cap Type: Tapped Retainer Cap
• Service: Water, Oil, Gas, Steam, Liquid

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 220075
