Watts Regulator 100XL-8-150 Relief Valve 3/4 Inch 150 PSI Brass

Product Description

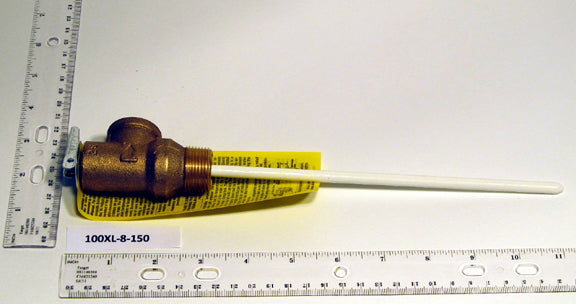

The Watts Regulator 100XL-8-150 relief valve, constructed from robust brass, features a 3/4 inch male NPT inlet and female outlet. Designed for protecting hot water heaters and storage tanks up to 105,000 Btu/hr, it automates temperature and pressure relief ensuring safe operation.

• Adjustable pressure relief range of 75 to 150 PSI.
• Temperature relief up to 210 degrees Fahrenheit.
• Includes a test lever and a unique thermostat with a thermo-bonded coating.

Product Highlights

This ASME rated and CSA listed valve provides reliable performance in water heating applications. Integrating advanced features such as a specialized thermostat enables efficient system management and safety protocols.

Product Information

Standard Information

• Connection Type: MNPT x FNPT
• Body Material: Bronze

Technical Specifications

• Pressure Relief Range: 75 to 150 PSI
• Temperature Relief: Up to 210 degrees Fahrenheit
• Thermostat: Thermo-bonded coating
• Safety Certifications: ASME, CSA
• Country of Origin: United States
