Watts 0856811 1 Lead Free Flow Measurement Valve 125 psi 1 LFCSM-61-M1-S

Product Description

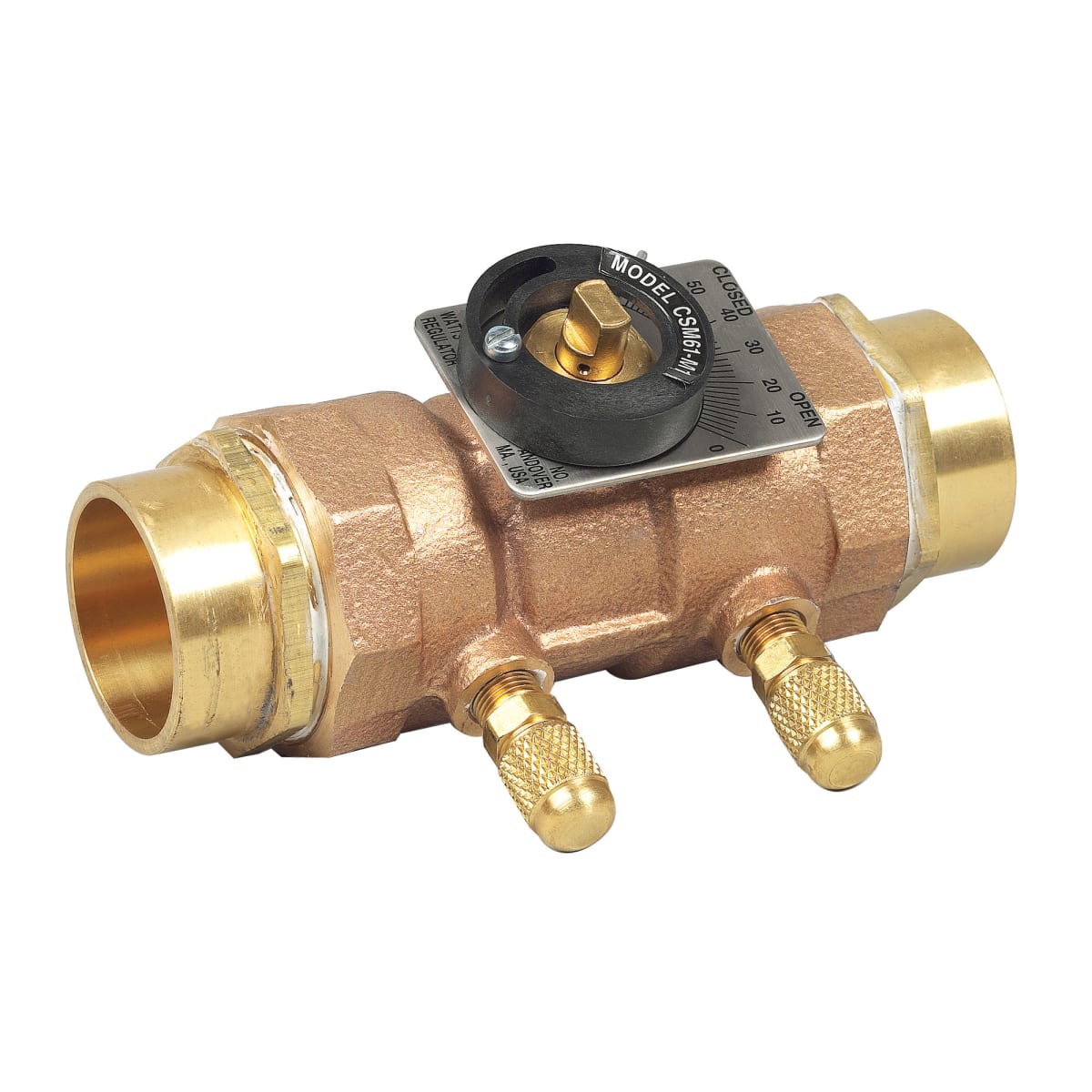

The Watts 0856811 is a flow measurement valve designed for HVAC systems. It has a nominal size of one inch and solder connections. This valve can handle pressures up to 125 psi and temperatures up to 200 degrees Fahrenheit. The inlet to outlet length is three and thirteen-sixteenths inches, with a height from the top to the inlet center of one and seven-eighths inches.

• Lead free body construction
• Bi-directional flow design
• Positive shut off with blow-out proof stem

Product Highlights

This valve is suitable for fan coil units, water source heat pumps, and small domestic hot water lines. Its compact design facilitates easy installation in tight spaces.

Product Information

Standard Information

• Brand: Watts Regulator Company
• MPN: 0856811

Technical Specifications

• Body Material: Brass
• Domestic/Import: Domestic
• End Style: Solder
• Inlet to Outlet Length: 3-13/16 inches
• Nominal Size: 1 inch
• Pressure Rating: 125 psi
• Temperature Rating: 200 degrees Fahrenheit
• Top to Inlet Center: 1-7/8 inches
• Trim Material: Glass filled PTFE
