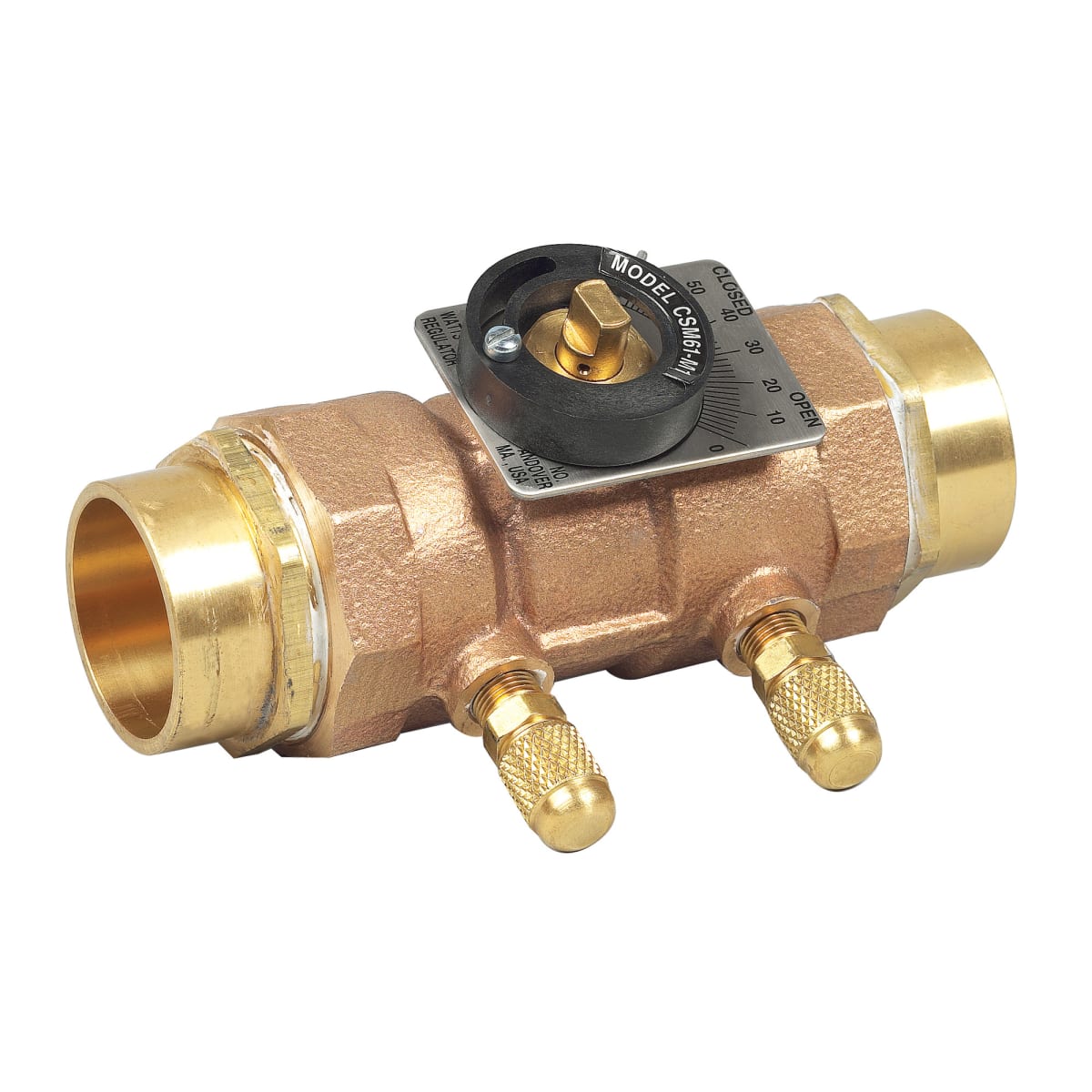

Watts 0856810 3/4 LFCSM-61-M1-S Limited Flow Measurement Valve

Product Description

The Watts Regulator Company 0856810 is a flow measurement valve designed for HVAC systems. This valve has a nominal size of three-fourths of an inch and features solder end connections. It operates at a pressure of up to one hundred twenty-five psi and can handle temperatures up to two hundred degrees Fahrenheit.

• Integral drain port
• 3-1/8 inch inlet to outlet length
• Brass body with carbon/glass filled PTFE seat

Product Highlights

This flow measurement valve offers bi-directional flow and a positive shut off feature, making it suitable for various applications.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• UPC: 098268463446

Technical Specifications

• Body Material: Brass
• End Style: Solder
• Inlet to Outlet Length: 3-1/8 inches
• Media: Water
• Nominal Size: 3/4 inches
• Port Type: Integral Drain
• Pressure Rating: 125 psi
• Series: LFCSM-61-M1-S
• Softgoods Material: Carbon/Glass Filled PTFE Seat
• Temperature Rating: 200 degrees Fahrenheit
• Top to Inlet Center: 1-11/16 inches
