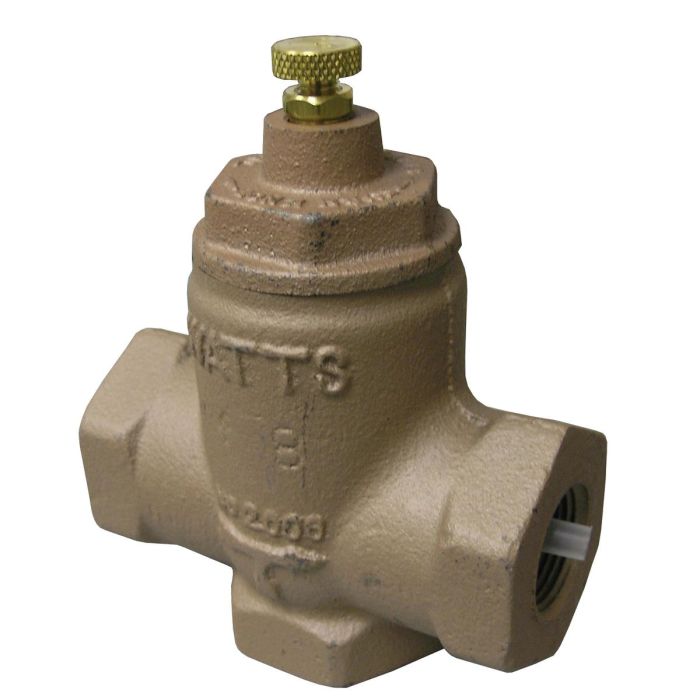

Watts 0856761 2000M5 1 FNPT 2-Way Universal Flow Check Valve

Product Description

The Watts Regulator Company 0856761 is a hydronic flow check valve designed for use in heating systems. This two-way universal valve provides a reliable shutoff when the circulator is not operating. It is easy to open for gravity circulation. The device combines both angle and horizontal check capabilities, made with a durable iron body and female threaded connections.

• Provides positive gravity shutoff when circulator is not running
• Compatible with hydronic heating systems
• Total pressure rating of fifty psi

Product Highlights

This flow check valve is suitable for residential and commercial applications, preventing unwanted water flow to radiation units.

Product Information

Standard Information

• Brand: Watts Regulator Company
• MPN: 0856761

Technical Specifications

• Body Material: Iron
• Dimensions: 4-1/8 inches W x 5 inches H
• End Style: FNPT
• Nominal Size: 1 inch
• Pressure Rating: 50 psi
• Series: 2000
• Softgoods Material: Bronze
• Temperature Rating: 33 to 250 degrees F
