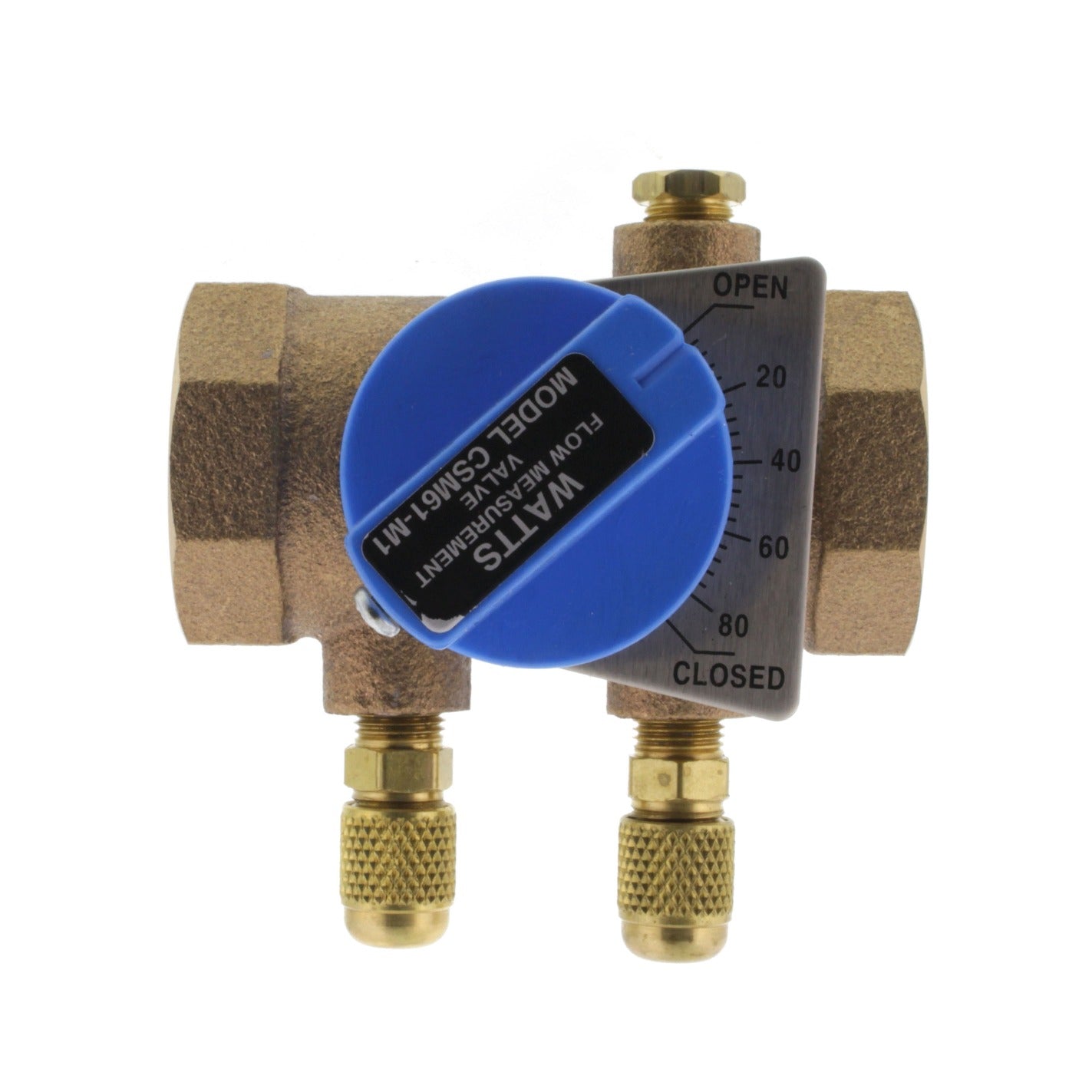

Watts 0856742 CSM-61 Flow Measurement Valve (1-1/4 inches)

Product Description

Watts 0856742 is a CSM-61 series 1-1/4" flow measurement valve designed to monitor system flow in low- to medium-flow HVAC units. It has a bronze body with a bi-directional positive-shutoff ball valve, blow-out proof stem, position indicator and memory device, checked metering ports with drip caps, two brass pressure taps and integral drain ports with a brass drain plug. The unit uses female threaded FPT connections and is not compliant for potable water use.

• Bronze body with bi-directional positive-shutoff ball valve, blow-out proof stem, position indicator and memory device
• Checked metering ports with drip caps, two brass pressure taps, integral drain ports and brass drain plug
• 1-1/4" female threaded (FPT) connections; maximum temperature 250 F; maximum working pressure 300 PSI (21 bar); not for potable water

Product Highlights

Accurate flow monitoring for low- to medium-flow HVAC applications including fan coil units, water source heat pumps, reheat coils and small branch lines.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0856742
• Country of Origin: United States
