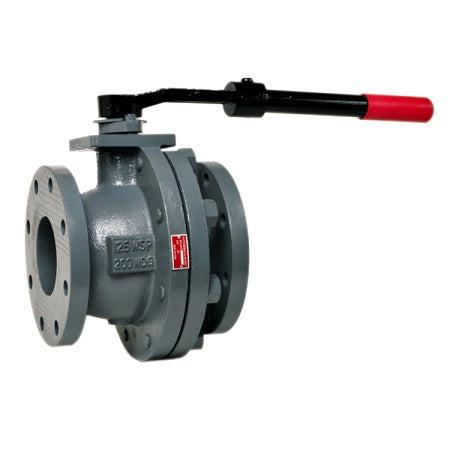

Watts 0822651 Full Port Cast Iron Flanged Ball Valves 2.5 inches

Product Description

The Watts 0822651 is a full port cast iron flanged ball valve with a 2.5" diameter and G4000 CWP200 rating. It is used in commercial HVAC and steam applications and is ideal for replacing cast iron gate valves. Features a stainless steel ball and stem with PTFE seats and packing.

• 200psi CWP rating and 125psi WSP rating
• Same end-to-end dimensions as conventional flanged iron gate valves
• Quarter-turn open or close operation

Product Highlights

The Watts full port cast iron flanged ball valve features positive shutoff and 2-piece body construction.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0822651
• Country of Origin: United States

Technical Specifications

• Brand: Watts
• Housing Material: Cast Iron
• WOG Rating: 200 psi
• Valve Operation: Manual
• MPN: 0822651
• WSP Rating: 125 psi
• Diameter: 2 1/2 in
• Country of Origin: United States
• Seat/Stem Packing/Thrust Washer Material: PTFE
• Maximum Working Pressure: 200psi (14 bar) CWP; 125psi (9 bar) WSP
• Maximum Temperature: 353 0F (178 0C)
• Inlet/Outlet Connection Type: Flanged Joint
• Inlet/Outlet Connection Size: 2 1/2 inch
• CV Rating: 420
• Operating Torque: 620.0
• Body Material: Cast Iron
• Ball Material: 304 Stainless Steel
• Pressure Rating: 125psi WSP, 200psi CWP
• Application: Commercial HVAC and steam applications
