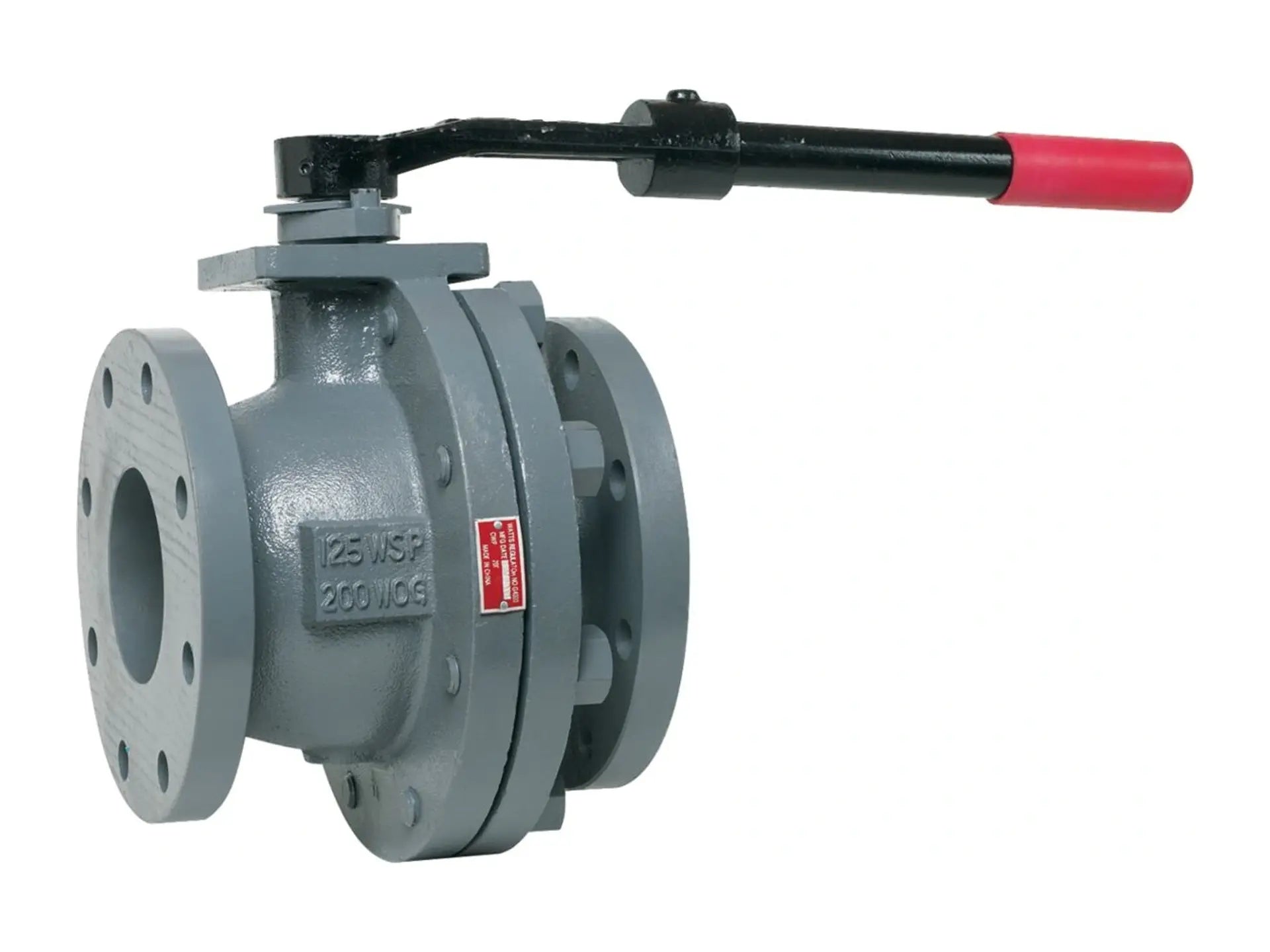

Watts 0822650 2-Piece Ball Valve With Handle, 2 inches, Flange

Product Description

The WATTS 0822650 2-Piece Full Port Cast Iron Flanged Ball Valve, 2 in Model G4000M1, is used in commercial HVAC and steam applications. It features a 125 psi steam rating, stainless steel ball and stem and PTFE seat and packing. It has a quarter turn operation and positive shut-off.

• Positive shut-off
• 125 psi working steam pressure
• Cast iron

Product Highlights

This Watts ball valve features a 2-inch flanged connection and is constructed from cast iron.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0822650

Technical Specifications

• Body Material: Cast Iron
• Domestic / Import: Import
• End Style: Flanged
• Nominal Size: 2 in
• Port Type: Full
• Ball Material: 304 Stainless Steel
• Inlet to Outlet Length: 7
• Manufacturer: Watts
• Part Number: 0822650
• Orifice Size: 2
• Temperature Rating: 353 deg F
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Type: 2-Piece
• Actuation: No
• Assembled Dry: No
• Balance Stop Plate: No
• Body Finish: Cast Iron
• Brand: Watts
• Buy American Act Compliant: NO
• Class Rating: 125
• Control Type: Lever Handle
• CV Rating: 330
• EAN: 098268908831
• Electrical Rating: Does Not Apply To Product
• Inlet Connection Size: 2 IN
• Inlet Connection Size-Metric: 50 MM
• Inlet Connection Type: Flanged Joint
• Inlet Thread Type: Does Not Apply To Product
• Lead Free: NO
• Maximum Temperature-Fahrenheit: 353
• Minimum Temperature - Celsius: -18.00
• Minimum Temperature-Fahrenheit: 0
• Operating Torque: 450
• Outlet Connection Size: 2 IN
• Outlet Connection Type: Flanged Joint
• Outlet Thread Type: Does Not Apply To Product
• Seat Material: PTFE
• Series: G4000M1
• Stem Packing Material: PTFE
• Stem Shaft Material: 304 Stainless Steel
• Stem Type: Standard
• Thrust Washer Material: Stainless Steel
• Valve Style: 2-piece
• WOG Rating: 200 PSI
• Inlet/Outlet Connection Size: 2 inch
• Inlet/Outlet Connection Type: Flanged Joint
• Maximum Temperature: 353°F (178°C)
• Maximum Working Pressure: 200psi (14 bar) CWP; 125psi (9 bar) WSP
