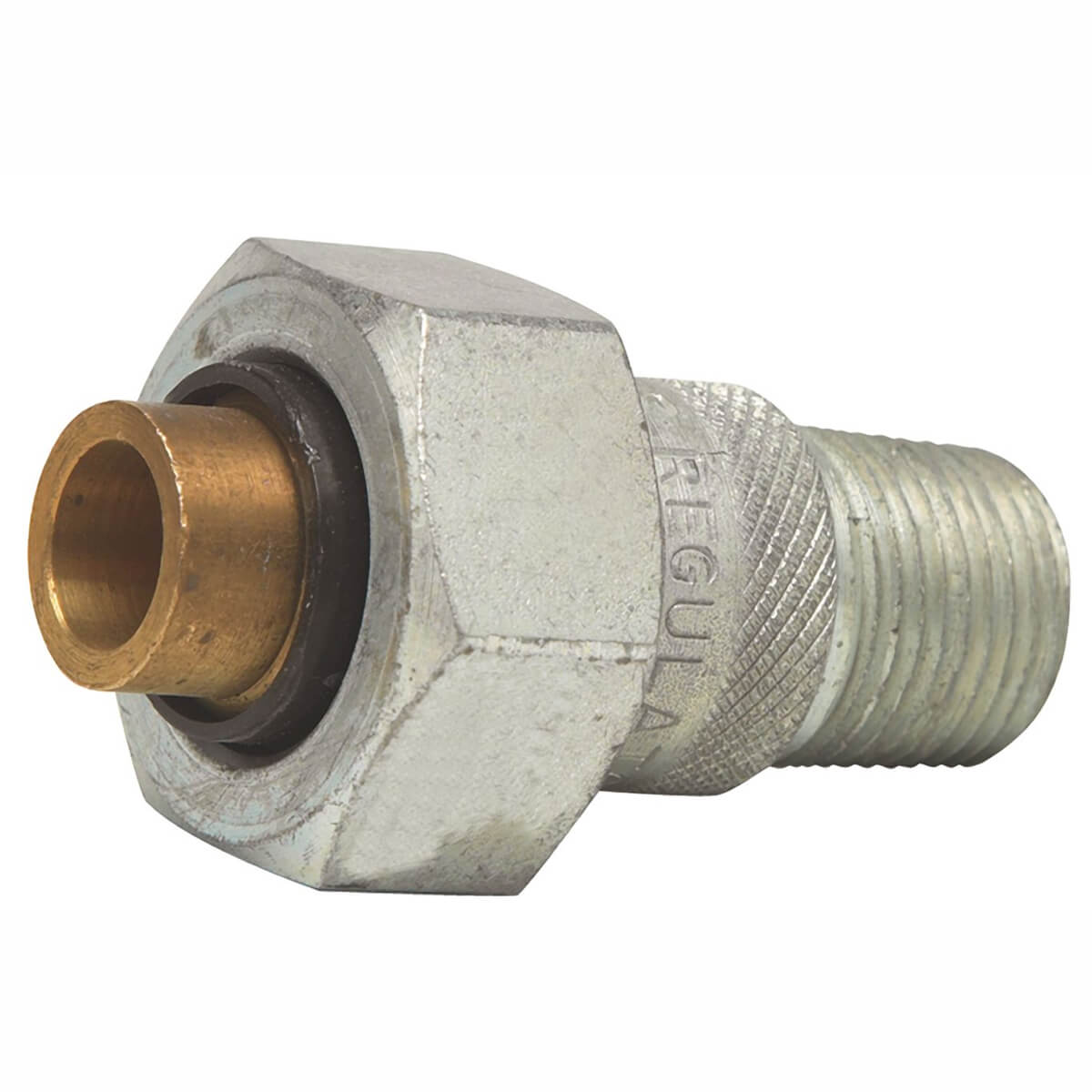

Watts 0821937 3/4 inches mip x 1/2 inches solder lf3007 dielectric union (lead free)

Product Description

The WATTS 0821937 3/4 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, and steam, gas, and water piping. It has a maximum temperature rating of 180 degrees F at 250 psi.

• MIP thread to female solder connections
• Buna-N gasket
• Maximum temperature 180 degrees F (82 degrees C)

Product Highlights

Prevents corrosion in piping systems with a male iron pipe thread to female solder connection. Ideal for hot water tanks and HVAC systems.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0821937

Technical Specifications

• Adapter Material: Steel
• Gasket Material: Buna-N
• Gasket Maximum Pressure: 250 PSI
• Gasket Maximum Pressure-BAR: 17.20
• Gasket Maximum Temperature: 180 Degree F
• Inlet Connection Size: 3/4"
• Inlet Connection Size-Metric: 19 MM
• Inlet Connection Type: Male Threaded
• Inlet Material: Iron
• Inlet Thread Type: IPS
• Insulator Material: Polysulfone
• Lead Free: YES
• Maximum Working Pressure-PSI: 250
• Maximum Working Temperature-Fahrenheit: 180
• Nut Material: Steel
• Outlet Connection Size: 1/2"
• Outlet Connection Type: Socket
• Outlet Material: Lead Free Brass
• Series: LF3007
