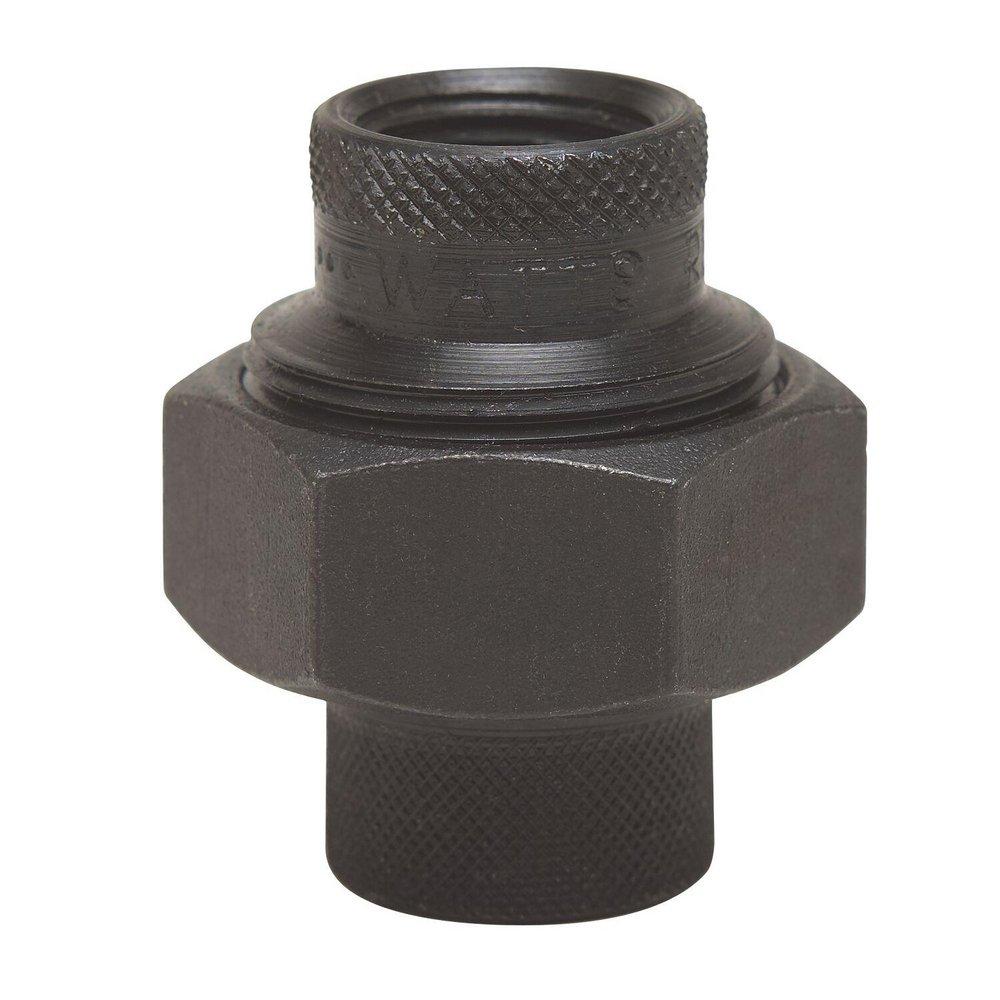

Watts 0821787 Series LF3006 3/4 x 3/4 in. Female Threaded Malleable Iron Dielectric Union

Product Description

The Watts Series LF3006 with MPN 0821787 is designed as a 3/4 inch female threaded malleable iron dielectric union. This product is essential in preventing corrosion and deterioration of piping systems created by dissimilar metal connections.

• Maximum pressure rating of 250 PSI (17.2 BAR).
• Maximum temperature capacity reaches 180 degrees F (82 degrees C).
• Includes a Buna-N gasket that isolates connections to avoid electric currents.

Product Highlights

This dielectric union provides a safe connection between piping systems made of different metals, suitable for various applications such as hot water systems, gas, and steam piping.

Product Information

Standard Information

• Brand: Watts
• MPN: 0821787

Technical Specifications

• Material: Malleable Iron
• Size: 3/4 in.
• Connection Type: Female Threaded
• Pressure Rating: 250 PSI (17.2 BAR)
• Temperature Rating: 180 degrees F (82 degrees C)
• Gasket Material: Buna-N
• Insulator Material: Polysulfone
• Applications: Commercial and Residential
