WATTS 0821400 WATTS 3001A Series 821400 Dielectric Union

Product Description

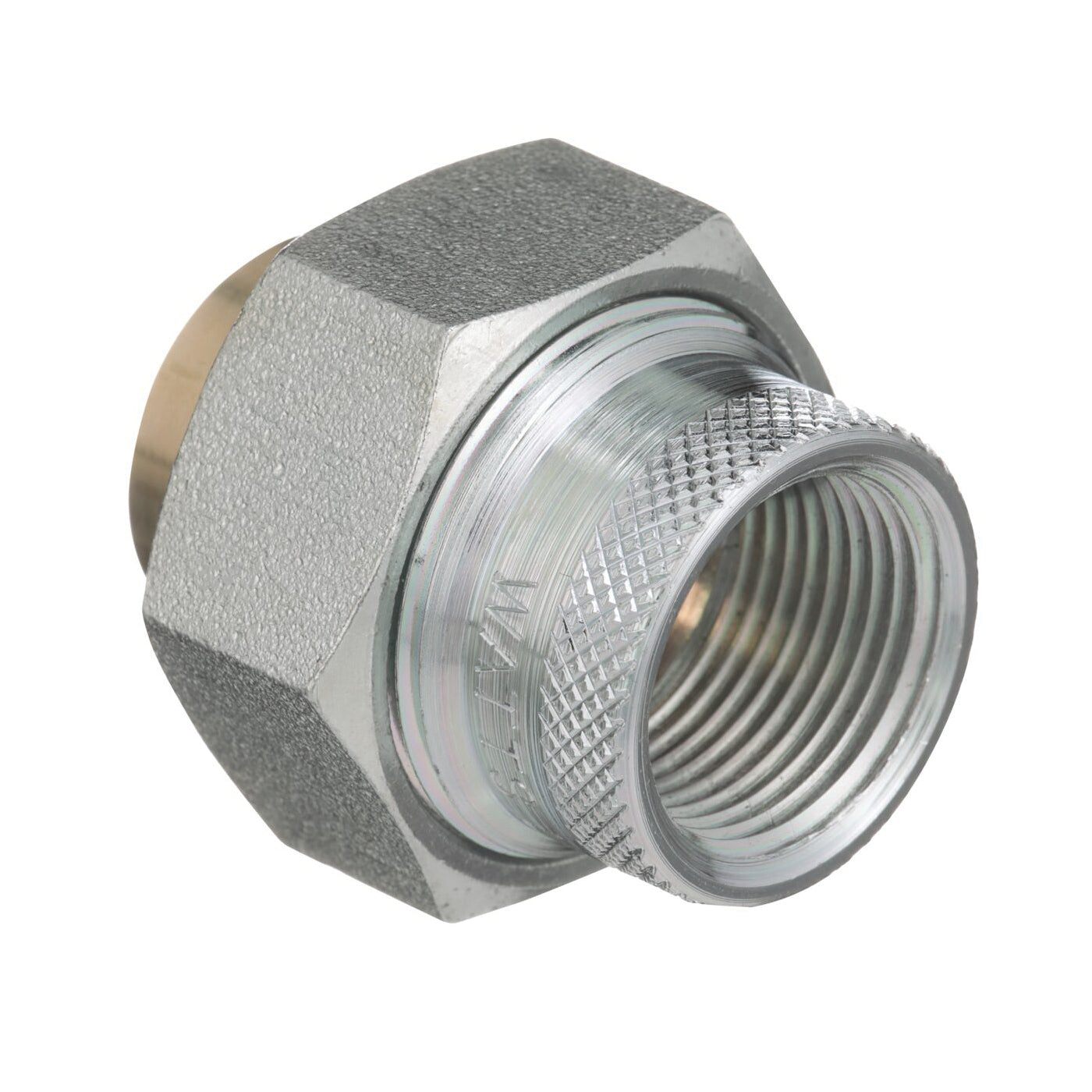

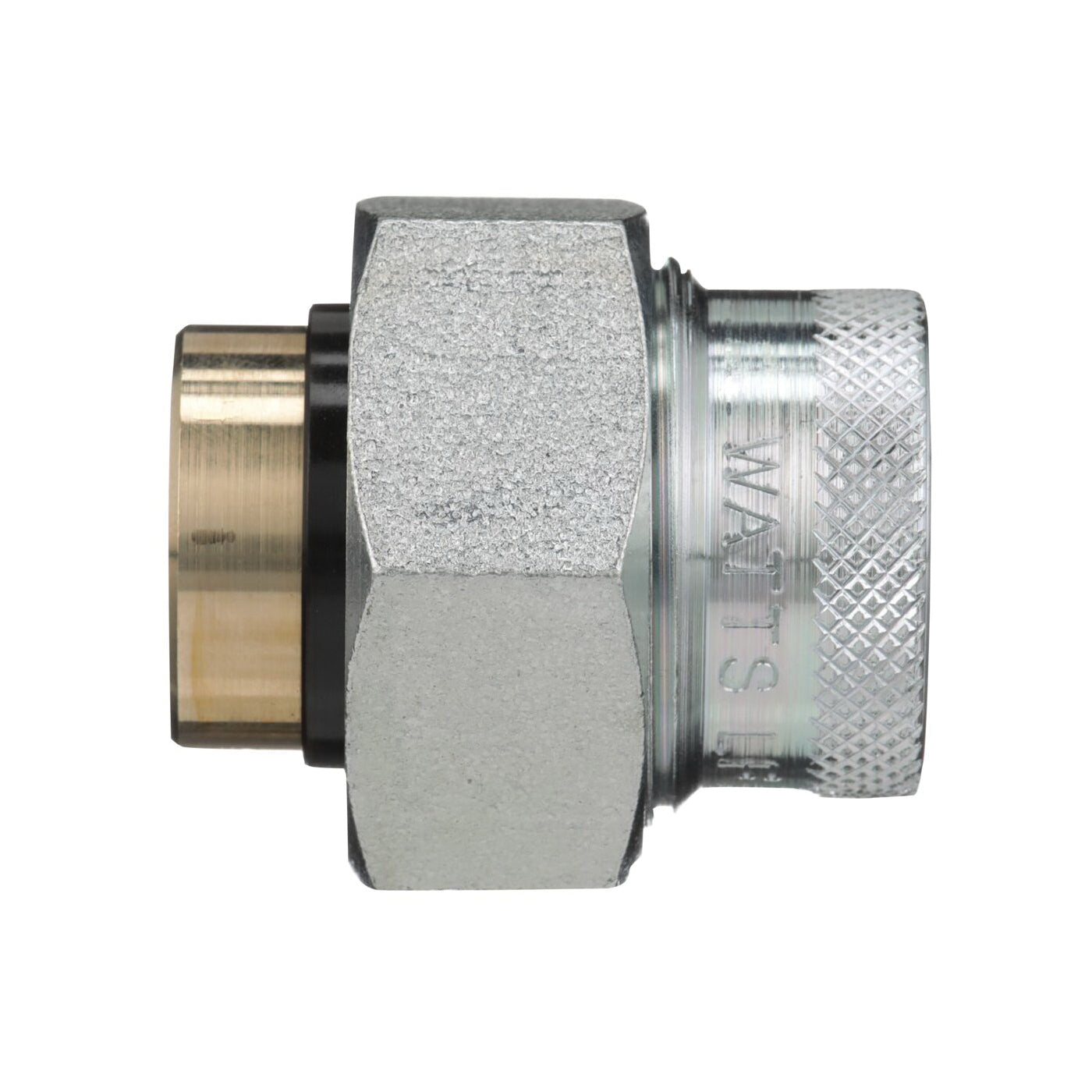

The WATTS 3001A Series 821400 dielectric union solves corrosion issues in piping systems with dissimilar metals. It is suitable for both residential and commercial use. The design includes a female iron pipe thread to solder connection. A union nut, two tailpieces, and a gasket help in electrically isolating the tailpieces.

• 1/2 inch FNPT x 1/2 inch copper solder joint connections.
• Compatible with hot water storage tanks and water and air conditioners.
• Made from durable brass.

Product Highlights

Product Information

Standard Information

• Series: 3001A Series
• Fitting Type: Union

Technical Specifications

• Connection Size 1: 1/2 inch
• Connection Type 1: FNPT
• Connection Size 2: 1/2 inch
• Connection Type 2: Copper Solder Joint
• Material: Brass
• Pressure Rating: 250 psi
• Temperature Rating: 180 degrees F
• Hex Size: 1-1/2 inches
• Dimensions: 1-7/8 inches H
