Watts 0820955 1/2 BD-QT Boiler Drain Shutoff

Product Description

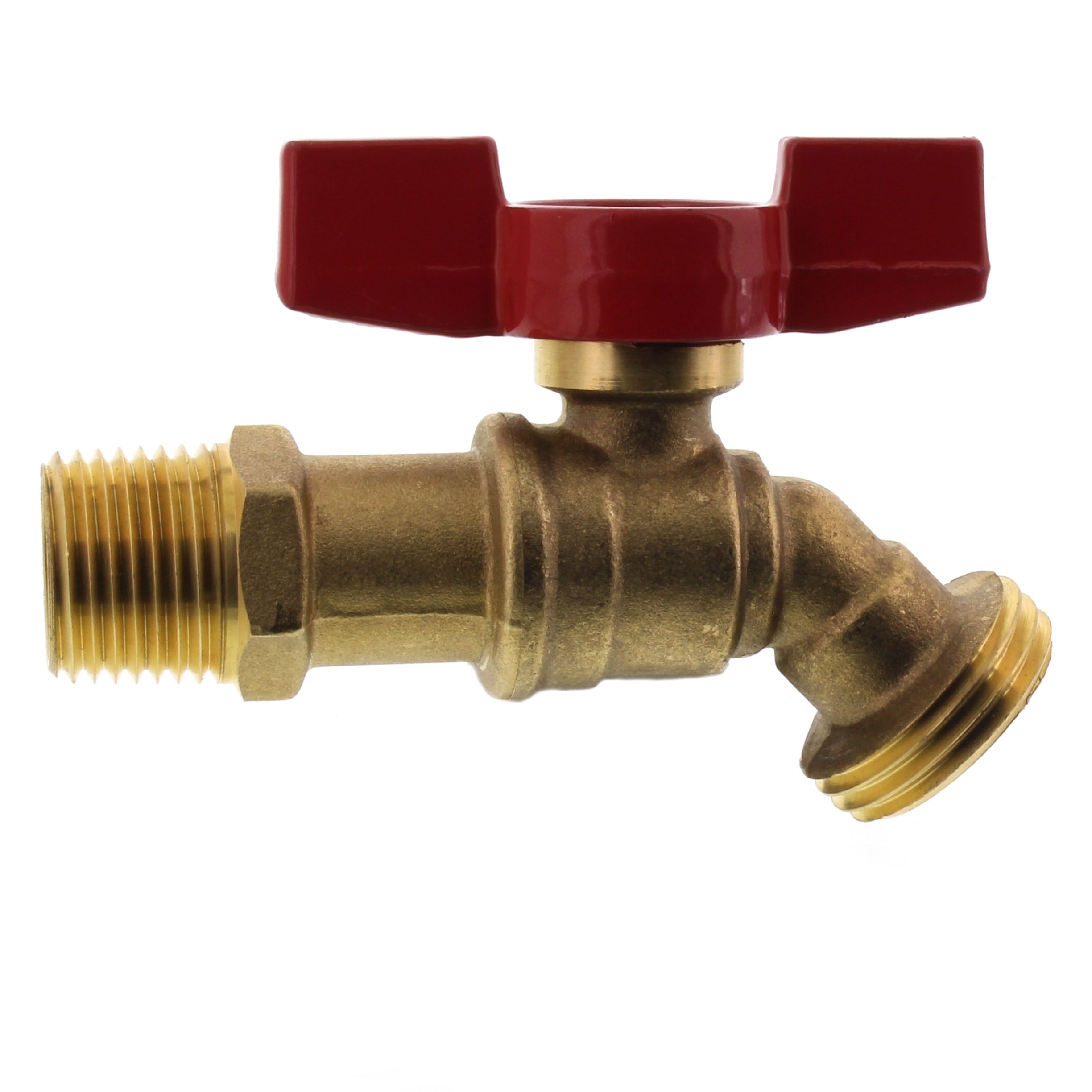

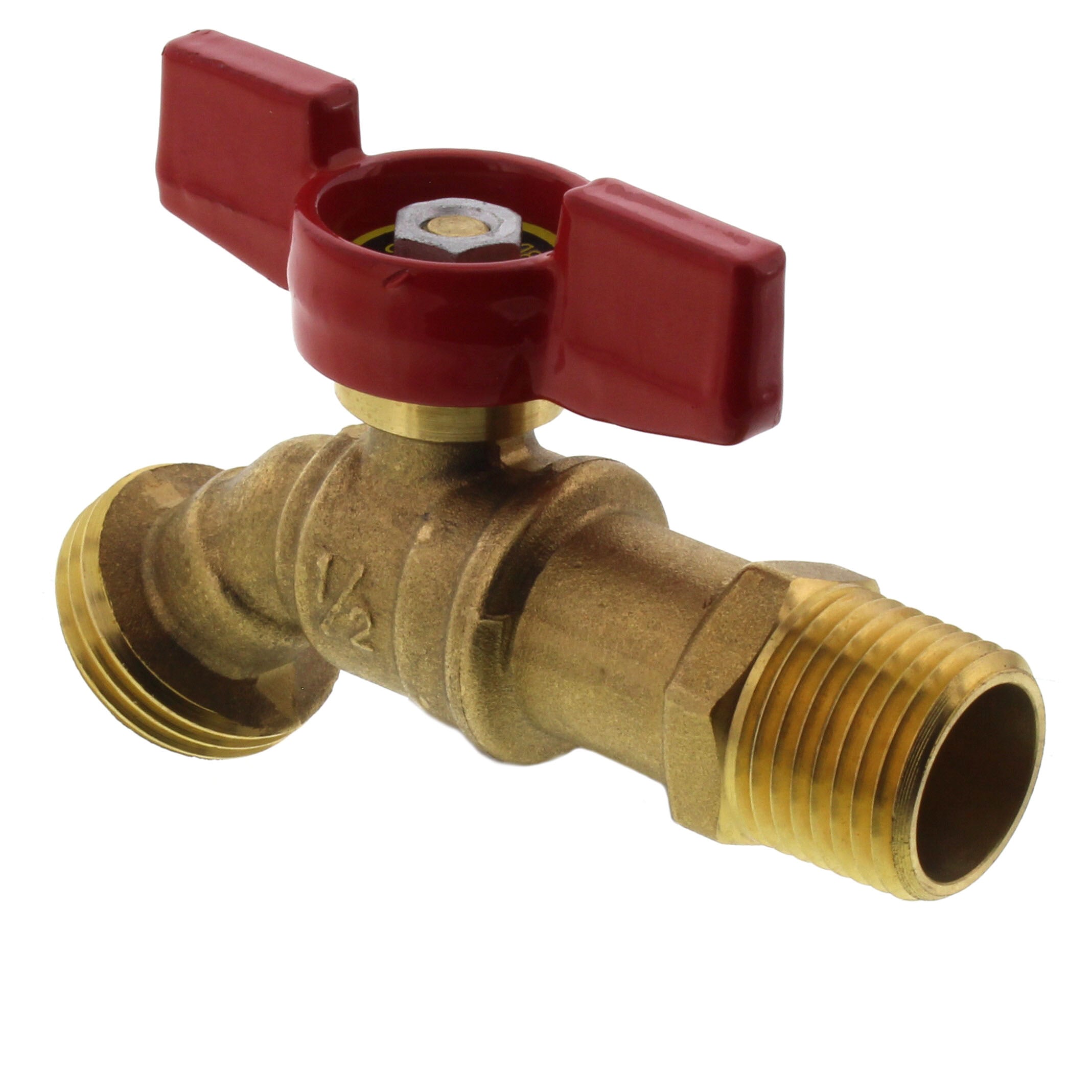

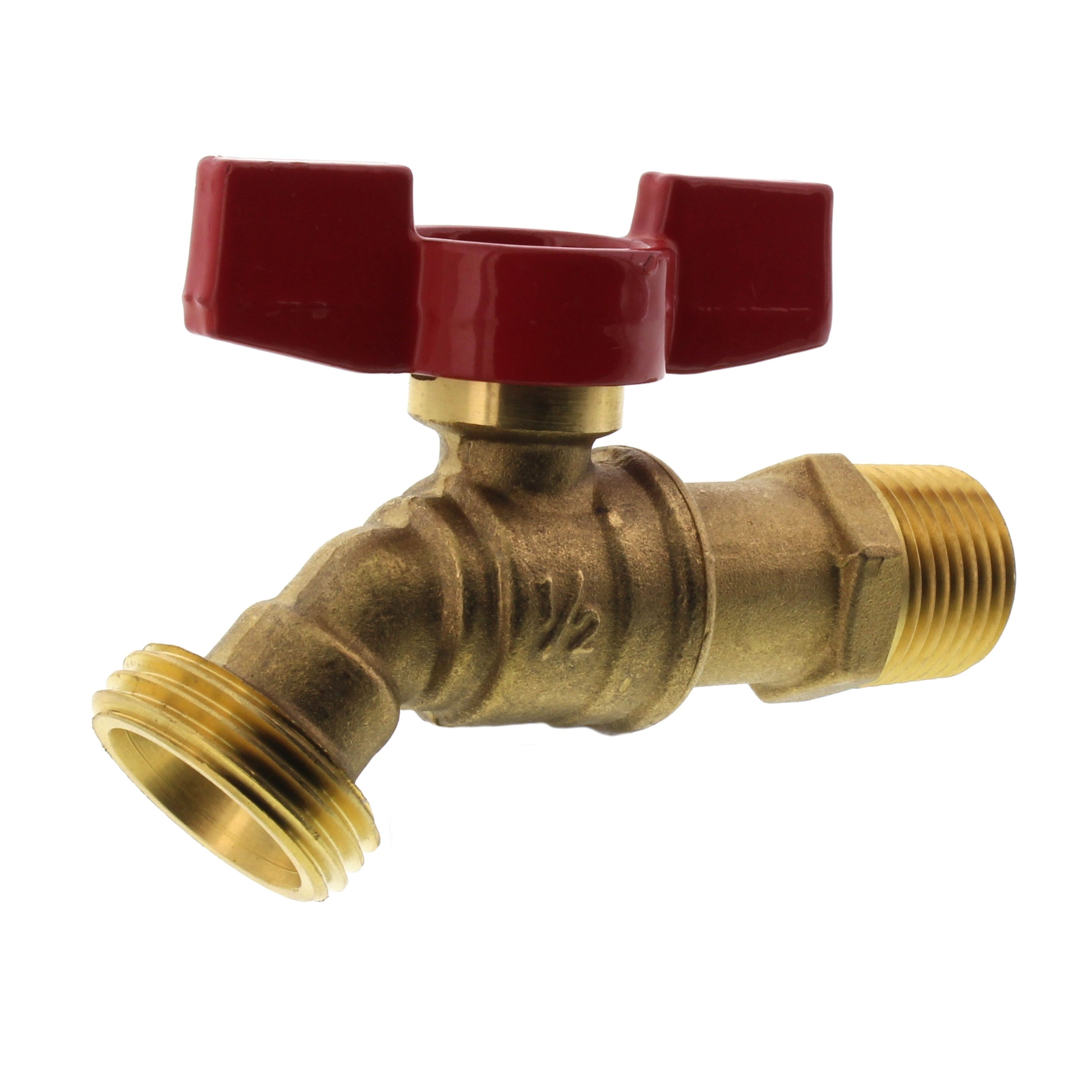

The Watts Regulator Company 0820955 is a 1/2 inch boiler drain shutoff designed for hydronic heating systems. This quarter-turn shutoff valve features a forged brass body and is equipped for use with threaded and solder connections. It operates at a pressure rating of 200 psi and a maximum temperature of 250 degrees Fahrenheit.

• Manufactured from durable forged brass
• Quarter-turn operation for quick shutoff
• T-handle actuator for ease of use

Product Highlights

This product is ideal for boiler drain applications. It ensures safe and efficient control of water flow in heating systems.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Type: Quarter-Turn Valve

Technical Specifications

• Body Material: Forged Brass
• Nominal Size: 1/2 inch
• Actuator Type: T-Handle
• Pressure Rating: 200 psi
• Temperature Rating: 250 degrees Fahrenheit
• End Style: Threaded x Solder
• Inlet to Outlet Length: 3-3/8 inches
• Top to Inlet Center: 2-1/4 inches
• Softgoods Material: PTFE
• Domestic/Import: Import
