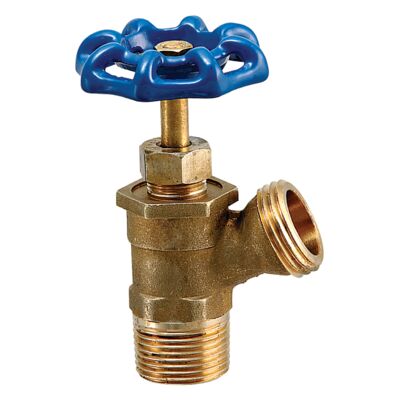

Watts 0820905 3/4 IN Boiler Drain Shutoff, Male IPS, Angle

Product Description

The WATTS 0820905 is a 3/4 inch angle pattern brass boiler drain shutoff designed for water service in commercial and residential hydronic heating systems. It provides positive shutoff for boiler drain or sill cock applications. It features a 3/4 inch hose thread connection on the outlet side and a 3/4 inch male IPS inlet.

• Brass body construction
• Angle pattern
• Male IPS inlet
• Hose thread outlet

Product Highlights

This boiler drain shutoff is ideal for use in hydronic heating systems, providing reliable shutoff functionality with its durable brass construction.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0820905

Technical Specifications

• Body Material: Brass
• Body Pattern: Angle
• Brand: Watts
• Hydronic Item Type: Boiler Drain Valve
• Inlet Connection Size: 3/4 IN
• Inlet Connection Size-Metric: 20 MM
• Inlet Connection Type: Male Threaded
• Inlet Thread Type: IPS
• Lead Free: NO
• Maximum Operating Temperature-Fahrenheit: 250
• Maximum Pressure-PSI: 200
• Maximum Temperature-Fahrenheit: 250
• Maximum Working Pressure-PSI: 200
• Outlet Connection Size: 3/4 IN
• Outlet Connection Type: Male Threaded
• Outlet Thread Type: GHT
• Part Number: 0820905
• Series: BD
• Maximum pressure: 200 psi (13.8 bar) WOG
• Temperature rating: 250 degrees F (121 degrees C)
