Product Description

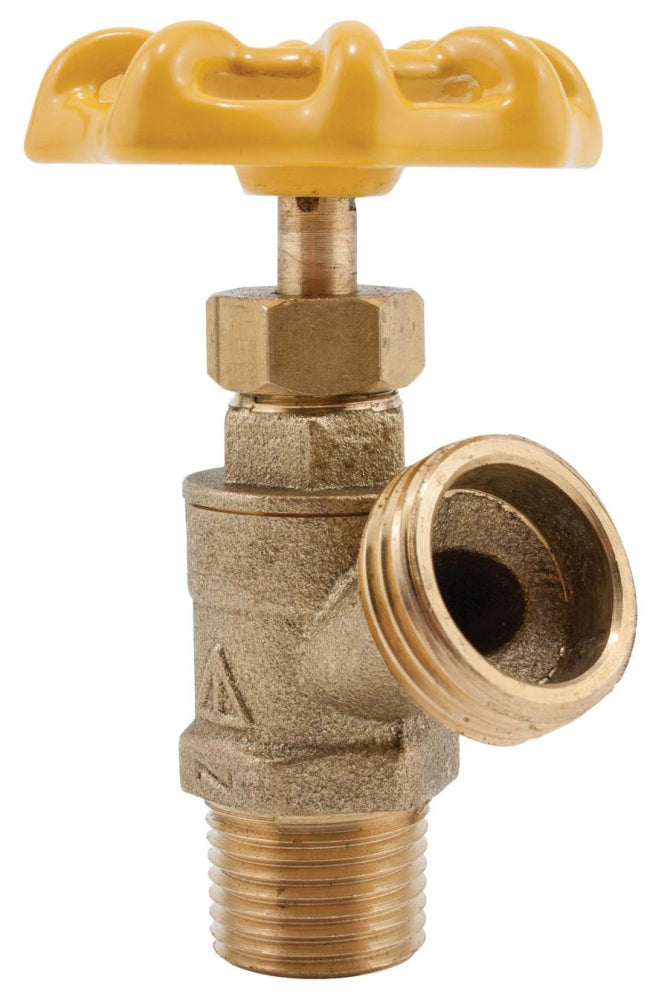

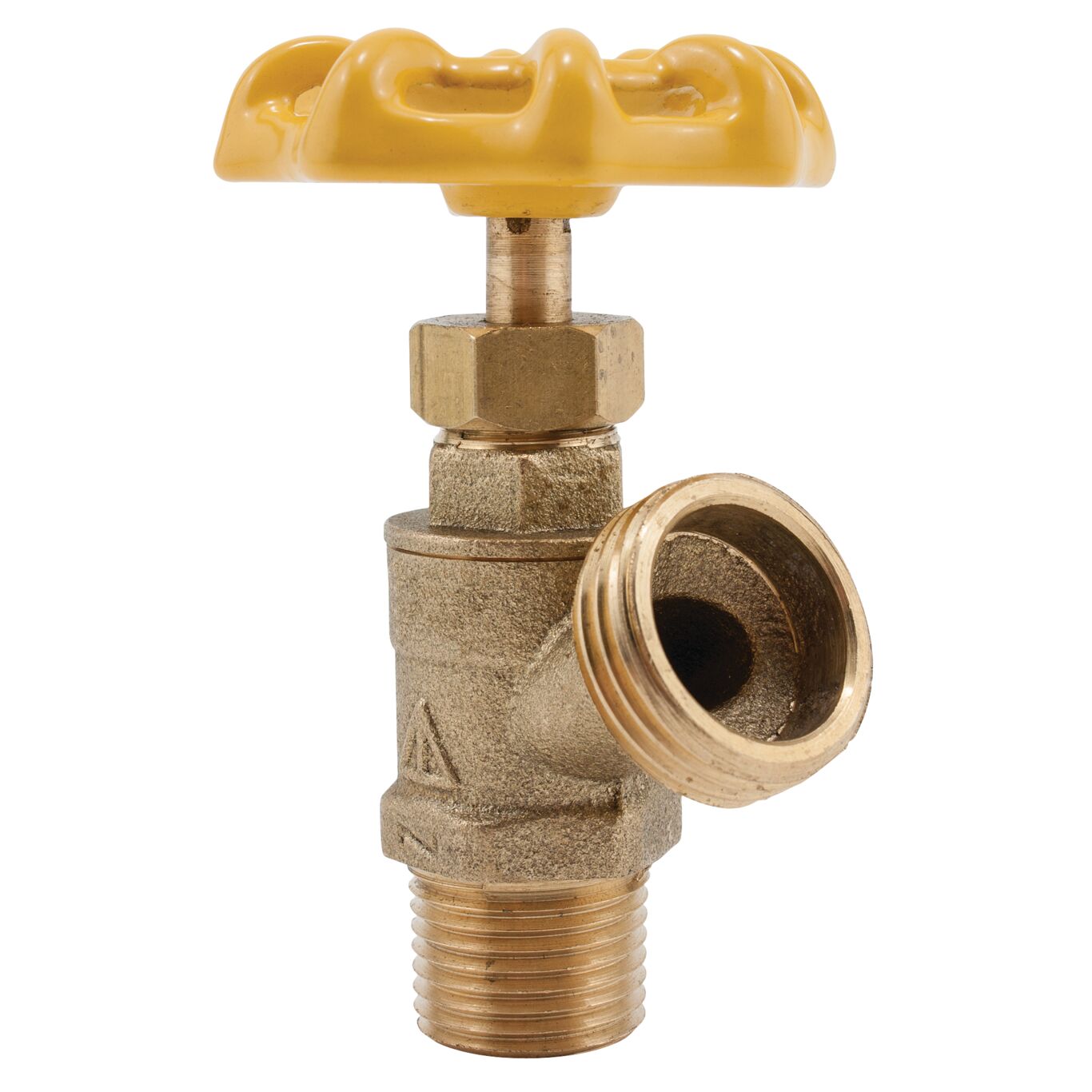

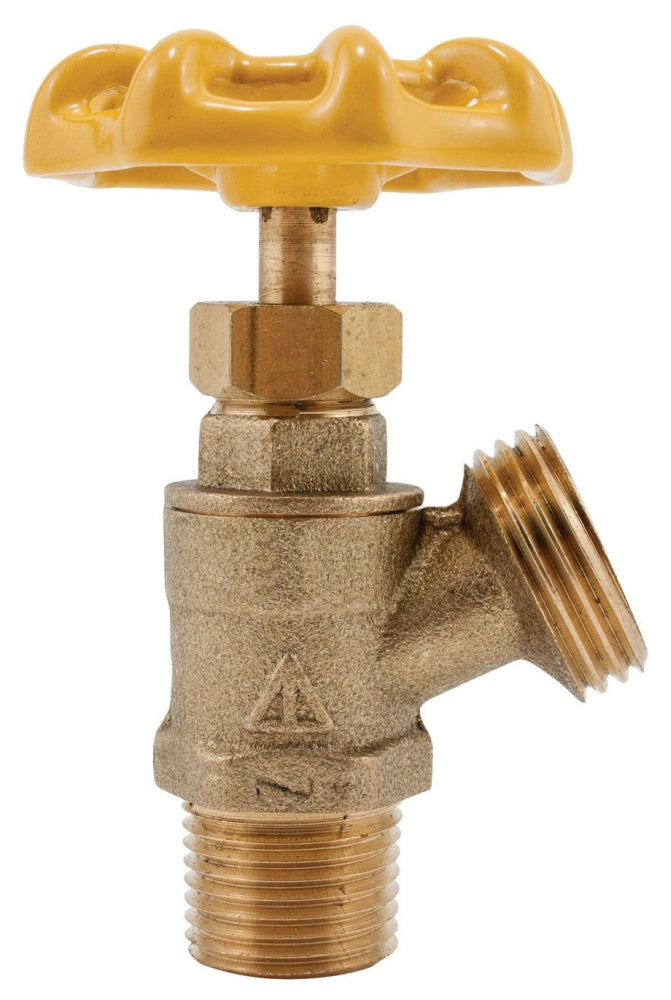

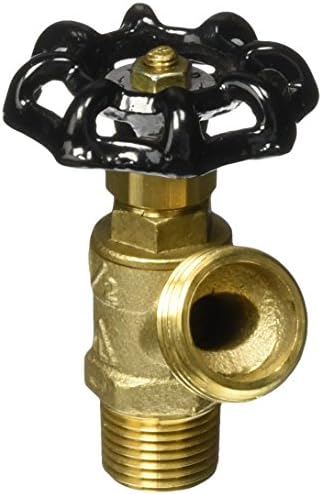

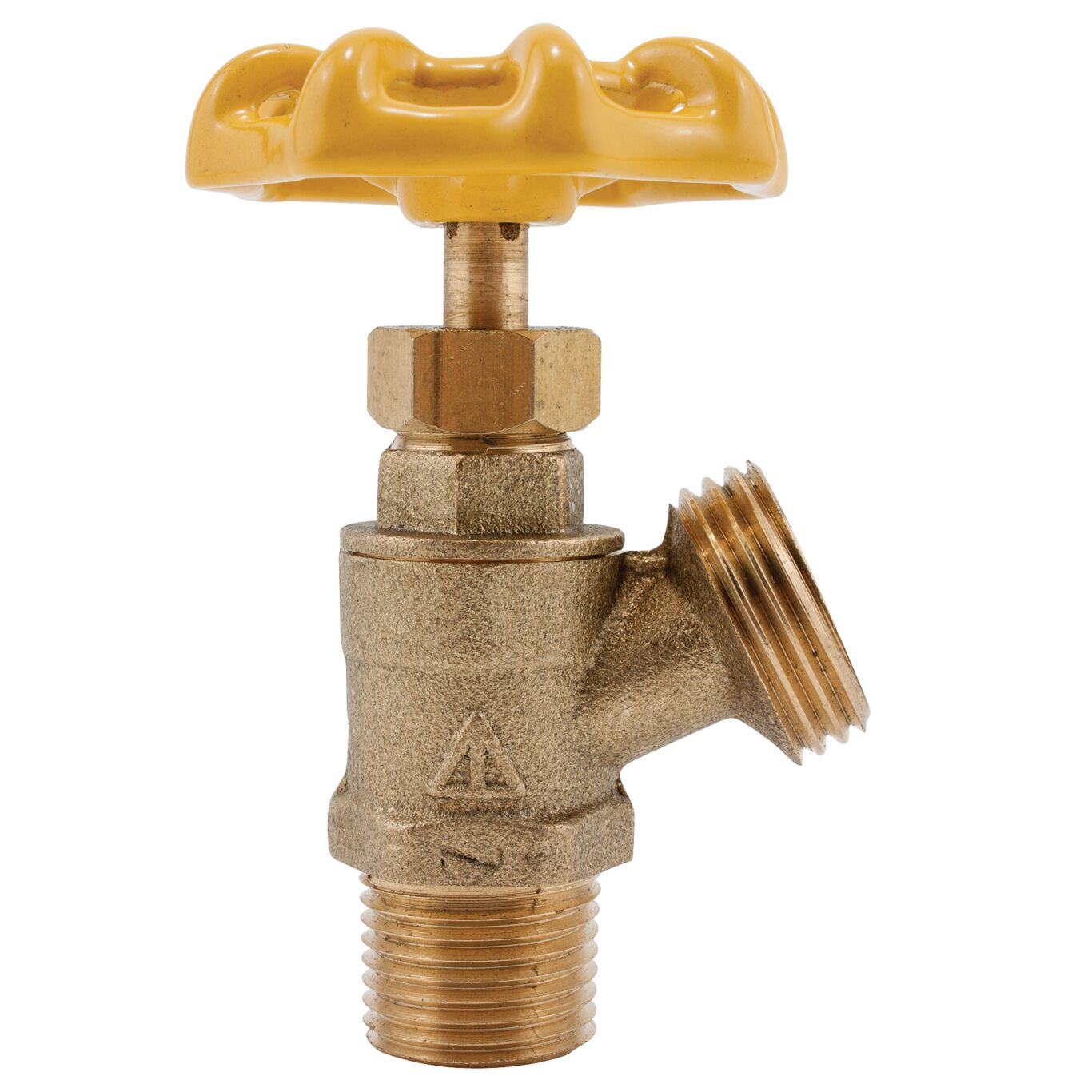

The Watts 0820901 BD-1 BD-1-C boiler drain shutoff is designed for water service in commercial and residential hydronic heating systems. This angle type valve provides positive shutoff for boiler drain or sill cock applications. Constructed with a brass body, it features a 1/2 inch male threaded x hose threaded end connection and a cast iron handwheel.
- Designed for water service use in commercial and residential hydronic heating systems.
- Provides positive shutoff for boiler drain or sill cock applications.
- Brass body construction
Product Highlights
The Watts boiler drain shutoff is ideal for plumbing and bath applications, specifically in kitchen fixtures, offering reliable shutoff and durable brass construction.
Product Information
Standard Information
-
Brand: WATTS
-
Manufacturer Part Number: 0820901
Technical Specifications
-
Actuation Type: Handwheel
-
Application: Commercial, Residential, Water Service
-
Body Material: Brass
-
Catalog Number: 0820901
-
Category: Plumbing & Bath / Kitchen Fixtures
-
End Connection: Male Threaded x Hose Threaded
-
Nominal Size: 1/2 Inch x 3/4 Inch
-
Overall Dimensions: 3-1/2 Inch Height
-
Pressure Rating: 200 PSI Non-Shock WOG
-
Temperature Rating: 180 Deg F
-
Type: Angle
-
UNSPSC Code: 40141600
-
Body Pattern: Angle
-
Brand: Watts
-
Buy American Act Compliant: NO
-
EAN: 098268260441
-
Hydronic Item Type: Boiler Drain Valve
-
Inlet Connection Size: 1/2 IN
-
Inlet Connection Size-Metric: 15 MM
-
Inlet Connection Type: Male Threaded
-
Inlet Thread Type: IPS
-
Lead Free: NO
-
Maximum Operating Temperature-Fahrenheit: 250
-
Maximum Pressure-PSI: 200
-
Maximum Working Pressure-PSI: 200
-
Outlet Connection Size: 3/4 IN
-
Outlet Connection Type: Male Threaded
-
Outlet Thread Type: GHT
-
Part Number: 0820901
-
Series: BD
-
Strainer: No
-
ADA Compliant: No
-
End Connection 1: GHT
-
End Connection 2: IPS
-
Fitting Size 1: 1/2 in.
-
Fitting Sizes: 1/2 in.
-
Maximum Temperature: 180
-
Pressure - Maximum: 200 psi
-
Valve Stem: PTFE
-
Outlet Type: Hose Threaded
-
Valve Body Material: Brass
-
Style Name: BD Series
-
Valve Body Style: Angle
-
Air Venting: No Vent
