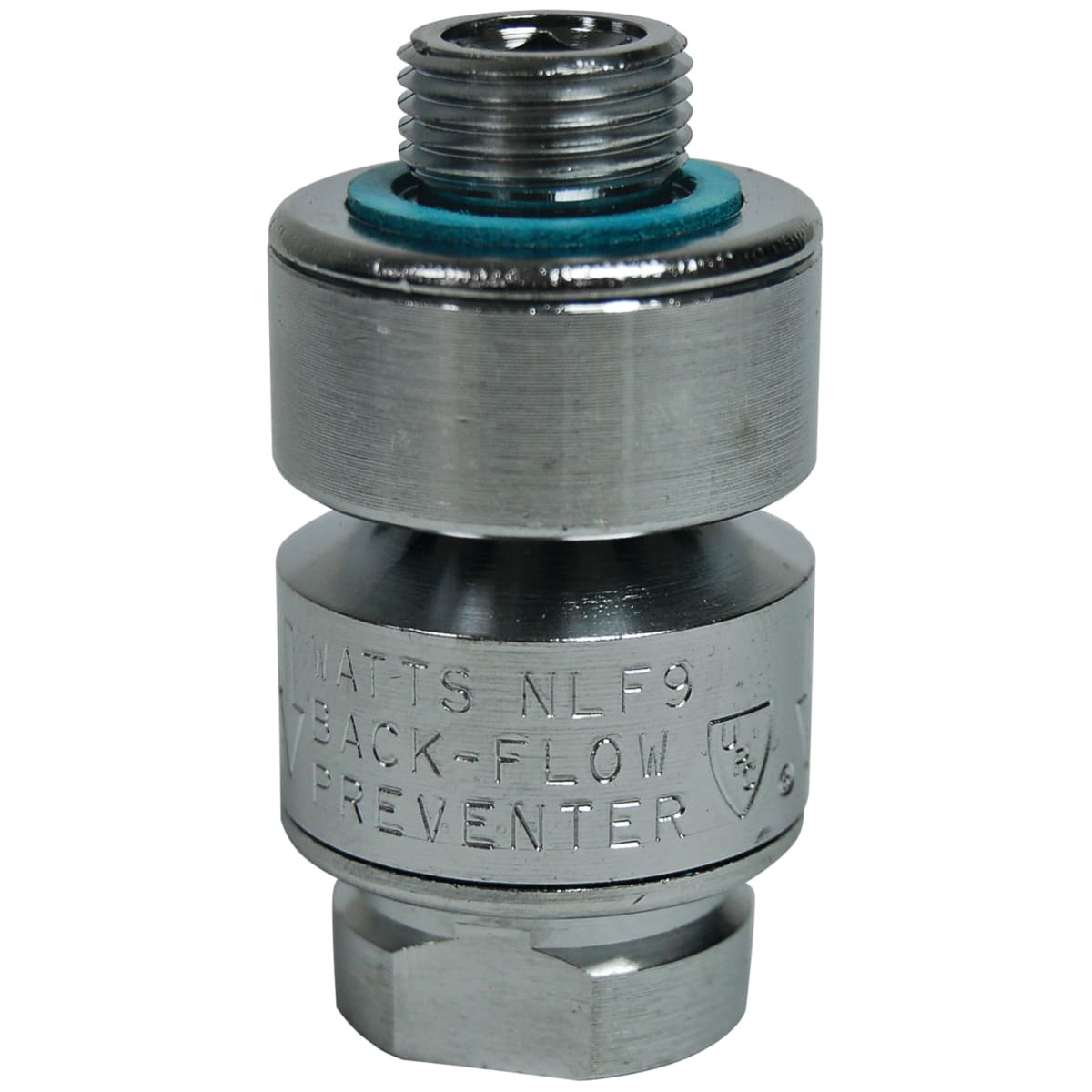

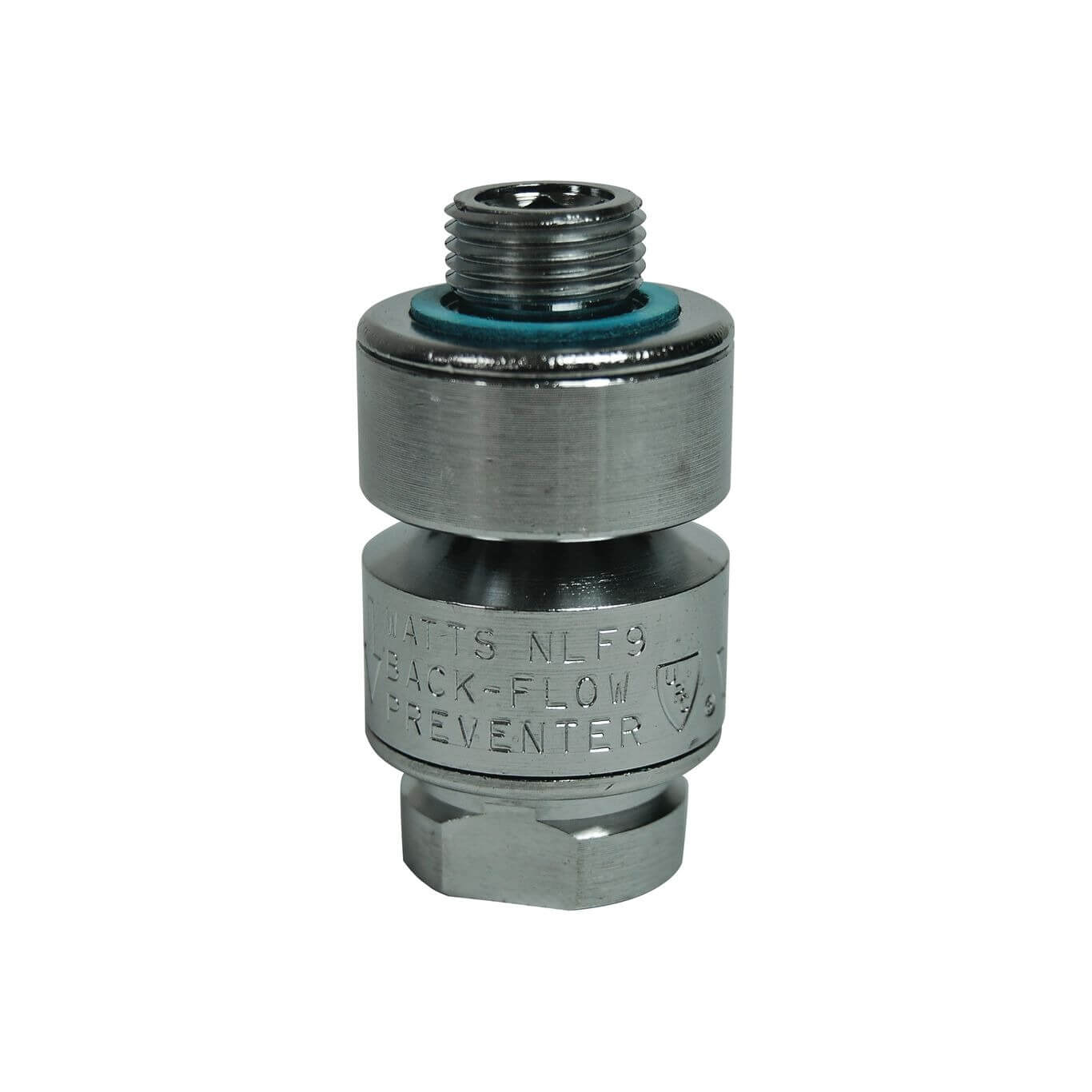

Watts 0792095 Series LFNLF9 3/8 in. Check Vacuum Breaker

Product Description

The WATTS 0792095 Series LFNLF9 3/8 in. Check Vacuum Breaker prevents the reverse flow of polluted water from entering the potable water supply where portable hoses can be attached. Designed for health hazard non-continuous pressure applications, it features faucet threads and a compact design. It consists of chrome-plated lead-free body construction, dual check valves and stainless steel working parts.

• Chrome finish
• Faucet threads
• Lead free construction

Product Highlights

Prevents back-siphonage of contaminated water into a potable water supply. Designed for laboratory faucets and health hazard non-continuous pressure applications.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0792095
• Country of Origin: Mexico

Technical Specifications

• Type: Vacuum Breakers
• Material: Brass, Stainless Steel
• Test_Status: Non Testable
• Connection_Size: 3/8"
• Connection_Type: Male Threaded
• Dimension: 2-3/8 in L
• Disc Material: Rubber
• Finish: Chrome
• Item Name: Dual Check Vacuum Breaker
• Pressure Rating: 150 psi
• Series: LFNLF9
• Temperature Rating: 33 - 140 deg F
• Bypass: No
• Brand: Watts
• MPN: 0792095
• Model: NFL9
• Lead Free: Yes
• Application: Plumbing
• Max Temp (F): 140°F
• Max Pressure (PSI): 150
• Inlet Connection Size: 3/8 IN
• Outlet Connection Size: 3/8 IN
• Inlet Thread Type: NPT
• Outlet Thread Type: NPT
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-PSI: 150
• Minimum Temperature - Celsius: 0.50
• Minimum Temperature-Fahrenheit: 33
• Body Finish: Chrome
• Body Material: Lead Free Brass
• Body Pattern: Inline
• Cap And Tether: No
• Elbow Fitting: No
• Hazard Protection Level: Health Hazard
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Connection Size-Metric: 10 MM
• Inlet Connection Type: Male Threaded
• Outlet Connection Type: Female Threaded
• Outlet Shutoff Valve Type: No Shutoff Valve
• Part Number: 0792095
• Polymer Coating: No
• Pressure Operation: Non Continuous
• Protection Type: Backsiphonage
• Strainer: No
• Height: 2 3/8 Inches
• Diameter: 1 1/4 Inches
• NSF Certified: NSF Certified
• Inlet / Outlet Size: 3/8 Inch
• Temperature Range: 33 - 180 Degrees F
• Width: 1.88"
• Depth: 2.19"
• Connection Type: FNPT x MNPT
