Watts 0792040 Series LF288A FNPT BFP Vacuum Breaker (1 in.)

Product Description

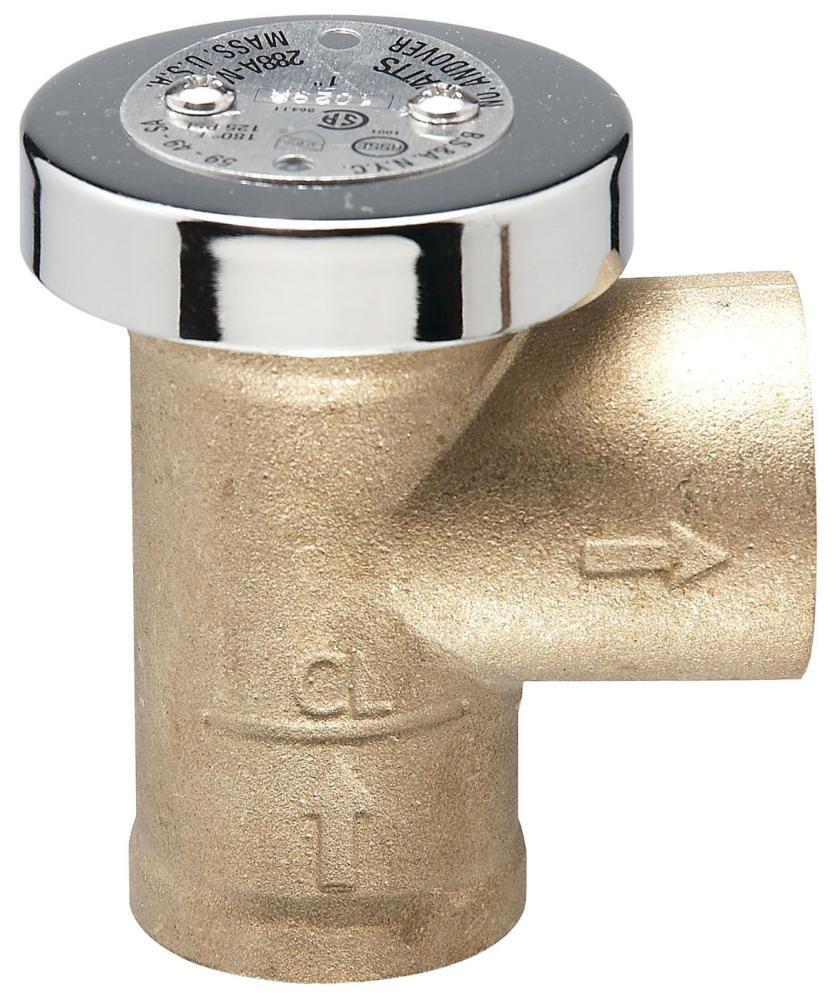

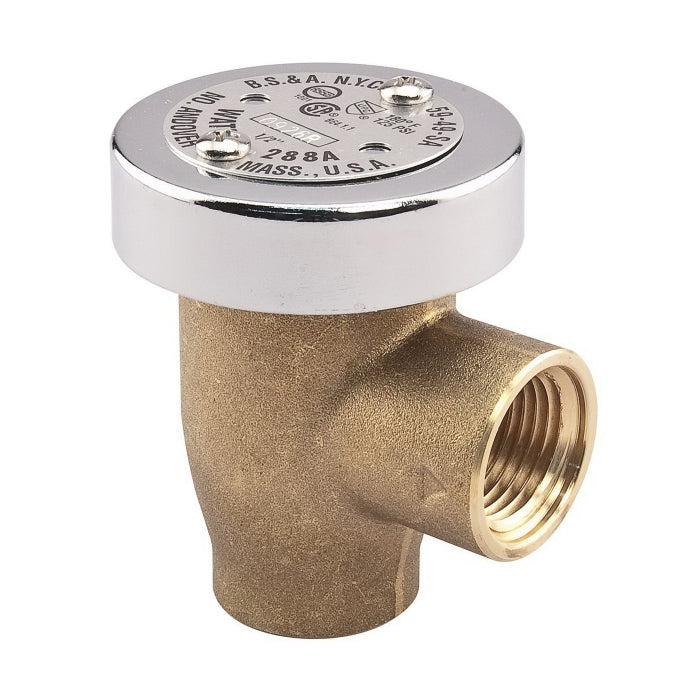

Watts 0792040 is a Series LF288A lead-free brass backflow preventer vacuum breaker with FNPT connections for 1 in. piping, rated to 125 psi. It prevents back-siphonage and protects potable water supplies in low-flow, non-continuous hot or cold water applications such as laboratory equipment. The unit includes a chemical-resistant silicone seat disc, chrome hood with atmospheric vent, and a full-size orifice to maintain pipe-size capacity and maximum flow.

• 1 in. female NPT (FNPT) inlet/outlet; full-size orifice for pipe-size flow
• Lead-free brass body with silicone seat disc and chrome hood with atmospheric vent
• Rated to 125 psi; temperature range 33 to 180 deg F; ASSE 1001, UPC, CSA B64.1.1 certified

Product Highlights

Lead-free brass 1 in. FNPT vacuum breaker, 125 psi rating, silicone seat, chrome vented hood, ASSE 1001/UPC/CSA certified

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0792040

Technical Specifications

• Brand: Watts
• MPN: 0792040
• Part Number / Model: WLF288AM4G
• Series: LF288A
• Type: BFP vacuum breaker
• Connection Type: Female NPT (FNPT)
• Connection Size: 1 in.
• Pressure Rating: 125 psi
• Material: Lead free brass
• Lead Free: Yes
• Disc Material: Silicone
• Seat Material: Silicone
• Finish: Brass with chrome hood
• Orifice: Full-size
• Temperature Rating: 33 - 180 deg F
• Dimensions: 2-7/8 in W x 3-5/8 in H
• Weight: 0.74 lb
• Certifications: ASSE 1001; UPC; CSA B64.1.1
• Applications: Low-flow, non-continuous hot or cold water health hazard applications such as laboratory equipment
• Bypass: No
• Test Status: Non Testable
