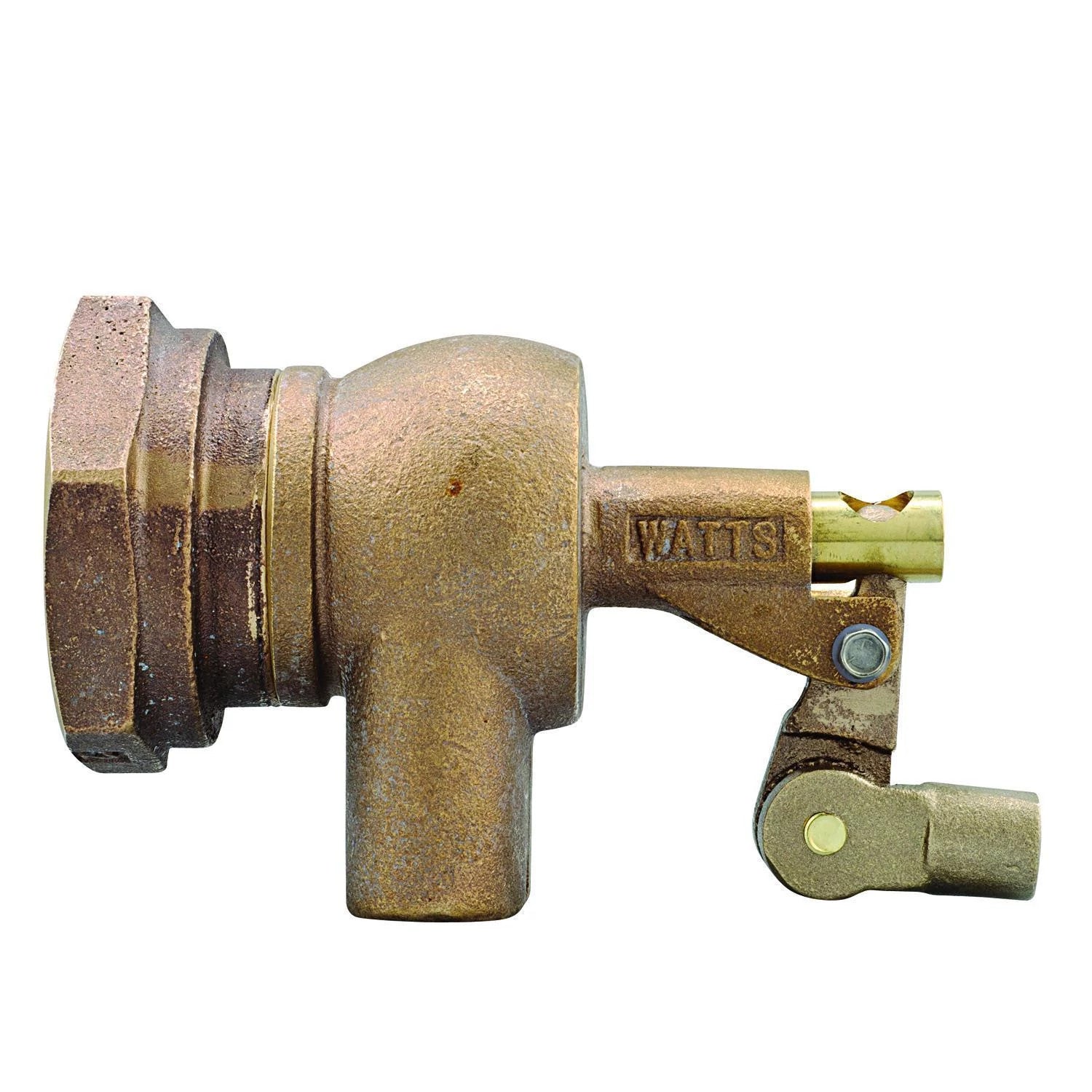

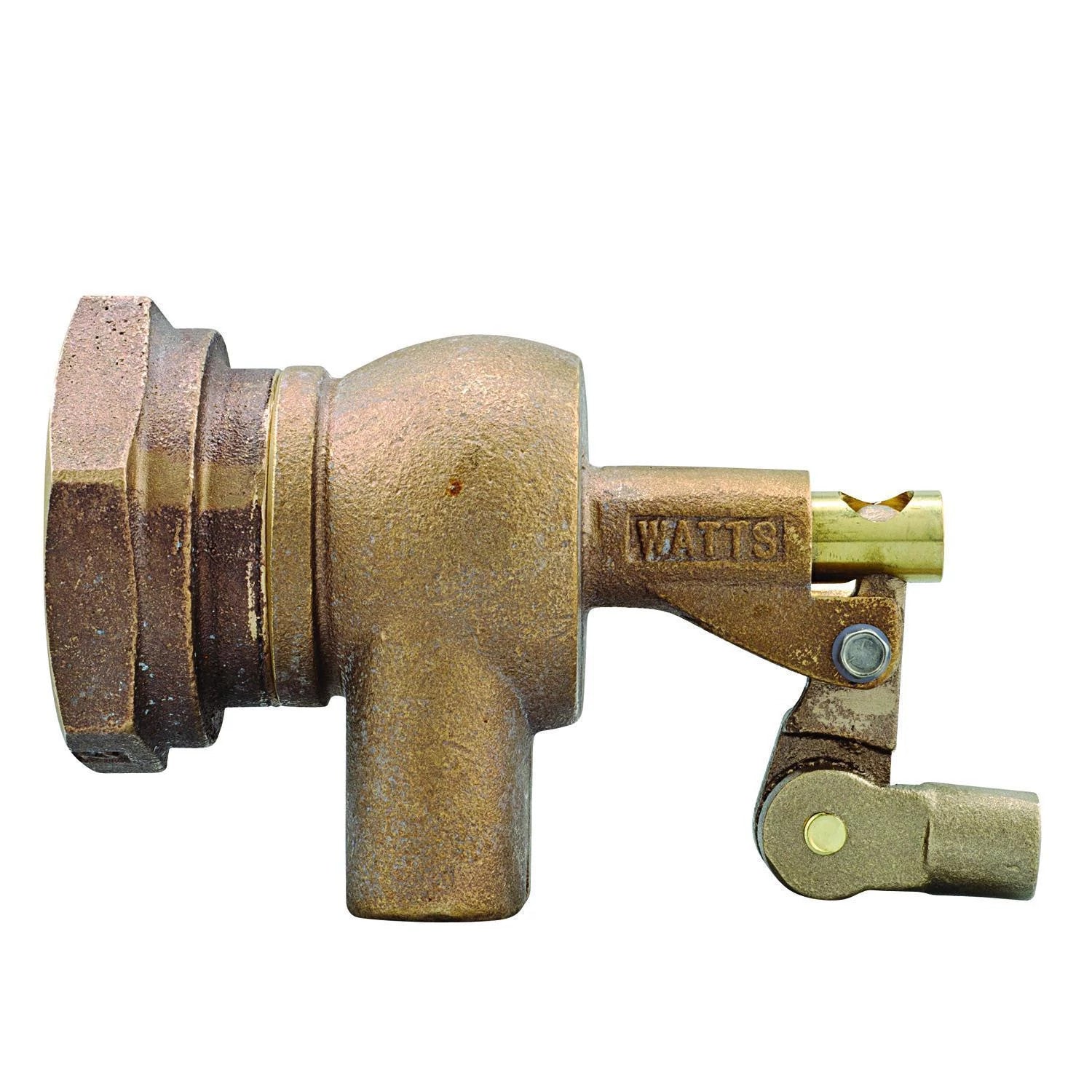

Watts 0780284 ST2000 Standard Duty Mechanical Float Valves 2 in

Product Description

The WATTS 0780284 ST2000 Standard Duty Mechanical Float Valve is designed for controlling water flow in commercial, industrial, and agricultural applications. Featuring a durable bronze body and 2-inch female NPT threaded connections, it includes a cotter pin pivot arm assembly, replaceable seals, and plungers. This valve is suitable for air conditioning, refrigeration, and irrigation systems, handling a maximum pressure of 125 psi.

• Controls water flow in commercial, industrial, and agricultural settings.
• Features a bronze body with 2-inch female NPT threaded end connections.
• Equipped with a cotter pin pivot arm assembly, replaceable seals, and plungers.

Product Highlights

Standard duty mechanical float valve for water flow control in various systems.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0780284

Technical Specifications

• Body Material: Bronze
• Connection Type: Female NPT Threaded
• Connection Size: 2 inch
• Assembly Type: Cotter Pin Pivot Arm
• Seals: Replaceable
• Plungers: Replaceable
• Maximum Pressure: 125 psi (8.7 bar)
• Series: ST2000
• End Style: FNPT
• Nominal Size: 2 in
• Rod Thread: 3/8-16
• Valve Type: Standard Duty
• Flow Specifications: 64 Gpm @ 5 Psi to 233 Gpm @ 125 Psi
• Inlet Pressure: 55 psi
• Maximum Temperature: 180°F
• Outlet Connection Thread Type: Female Threaded
• Outlet Thread Type: FPT
