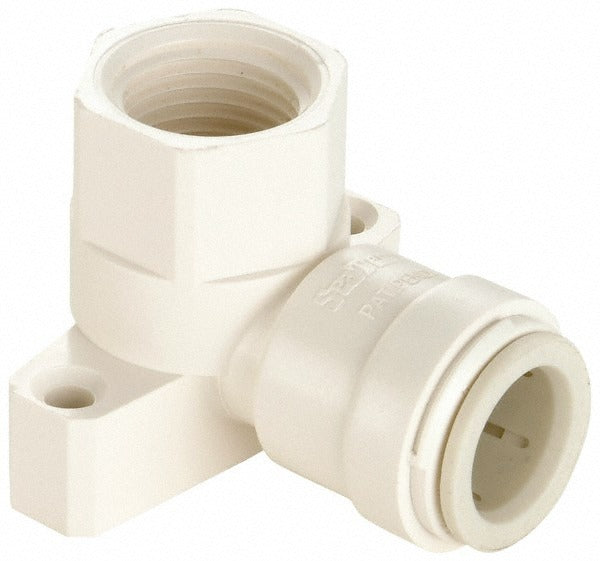

Watts 0650065 Push-to-connect Drop Ear Elbow 1/2 in

Product Description

The WATTS 0650065 is a push-to-connect drop ear elbow tube fitting designed for fast, tool-free connections in plumbing distribution systems. Constructed from polyethersulfone (PSU), this fitting accepts 1/2-inch OD tubing and provides a 1/2-inch threaded port for wall-mount or bracket-mount installations. It is rated to 250 psi, making it suitable for standard residential and light commercial potable water applications. The drop ear design allows the fitting to be secured to a structural surface, keeping supply lines fixed and reducing movement stress at the connection point. Licensed plumbers and pipefitters install this type of fitting where a pipe terminates at a wall-mounted fixture outlet.

This fitting is suited for residential and light commercial plumbing systems where push-to-connect technology is used to reduce labor time and eliminate the need for soldering or crimping tools. Typical applications include potable water supply lines, fixture stub-outs, and in-wall plumbing rough-in where the fitting is fastened to blocking or framing before drywall installation. The white PSU body is compatible with standard push-to-connect tubing in 1/2-inch OD sizing.

Key Features

• Push-to-connect design allows tool-free tubing insertion without soldering or crimping
• Drop ear configuration provides a mounting flange for securing to wall framing or blocking
• Rated to 250 psi for standard residential and light commercial water supply service
• Polyethersulfone (PSU) construction offers chemical resistance and durability
• Accepts 1/2-inch OD tubing with a 1/2-inch threaded wall-mount port
• White finish for clean, consistent appearance in visible plumbing installations

Compatibility

Designed as an OEM-style push-to-connect replacement or new-installation fitting for residential and light commercial plumbing systems using 1/2-inch OD supply tubing.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off the water supply and depressurize the line before connecting or disconnecting the fitting. Ensure tubing is cut cleanly and squarely, and that the tube end is fully inserted until it seats against the fitting stop to achieve a proper seal. Do not exceed the 250 psi pressure rating.
