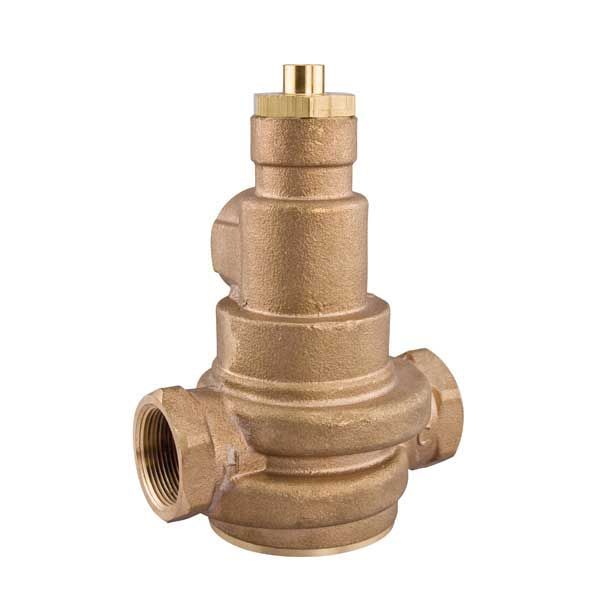

Watts 0559167 LFN170-M3-CSUT - 3/4 x 3/4 NPT w/Check Valves Thermostatic Mixing Valve

Product Description

The Watts LFN170-M3-CSUT is a thermostatic mixing valve designed for hot water applications. The MPN for this product is 0559167. It features a paraffin-based thermostat that adjusts the outlet temperature to ensure safe water delivery. This valve is suitable for larger hot water systems, mixing hot and cold water to maintain consistent temperatures.

• Designed for tempered domestic potable water applications
• Constructed with a durable bronze body
• Supports a maximum pressure of 150 psi

Product Highlights

This mixing valve ensures efficient water temperature management, providing safety in commercial and institutional settings.

Product Information

Standard Information

• Brand: Watts
• MPN: 0559167

Technical Specifications

• Model: LFN170-M3-CSUT
• Valve Application: Tempered Domestic Potable Water
• Body Material: Bronze
• Valve Connection: NPT w/Check Valves
• Inlet Connection Size: 3/4 inches
• Outlet Connection Size: 3/4 inches
• Minimum Flow GPM: 3 GPM
• Minimum Outlet Temperature: 90 degrees Fahrenheit
• Maximum Outlet Temperature: 180 degrees Fahrenheit
• Max Pressure: 150 psi
• Point-of-Source Certified: Yes
• ASSE Classification: 1017
• Weight: 9.80 lbs
