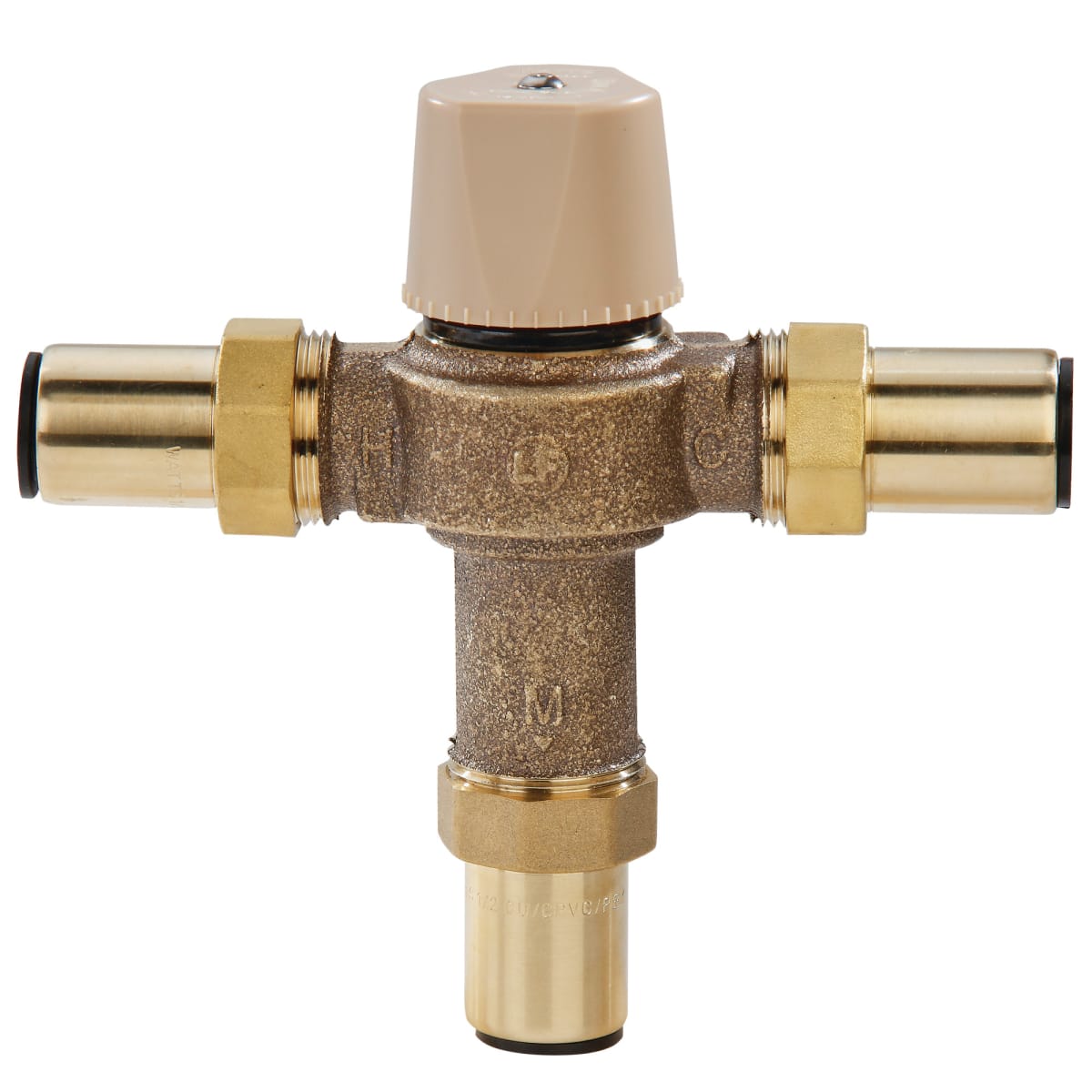

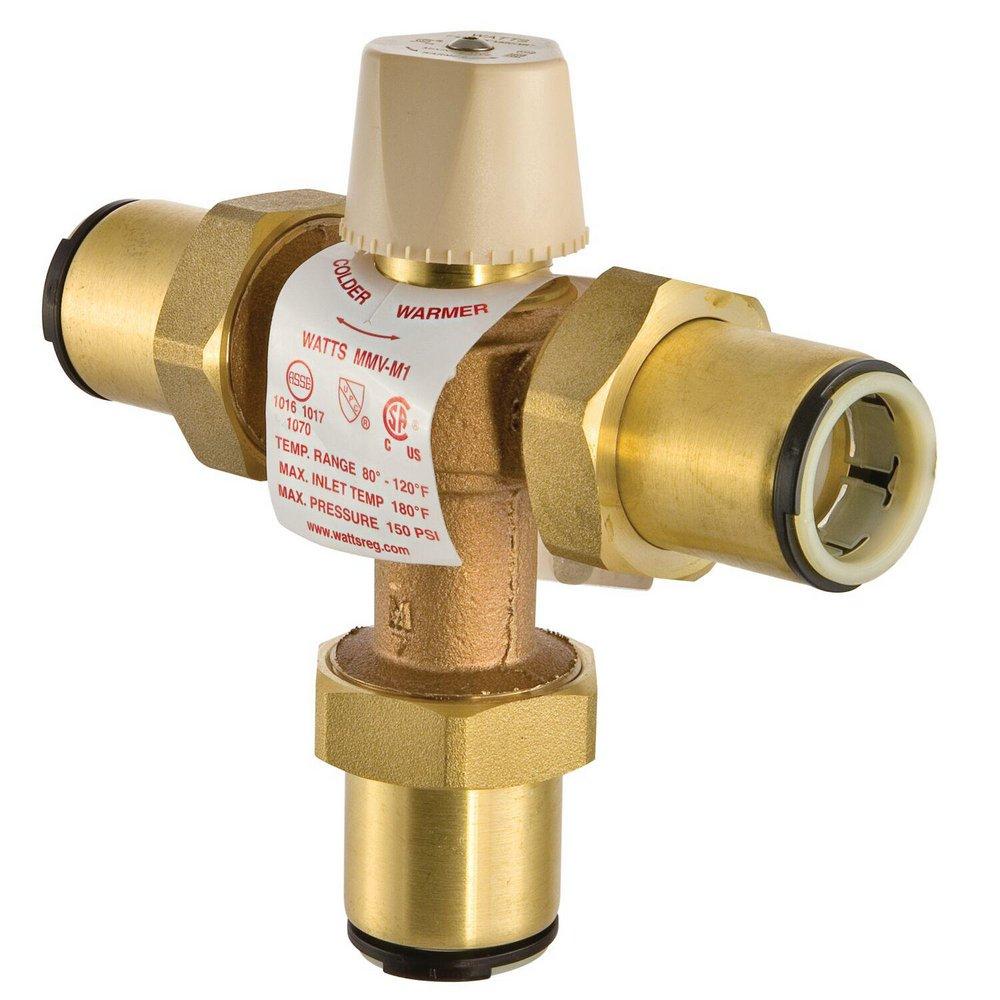

Watts 0559165 Series LFMMV 3/4 in Quick Connect Thermostat Mixing Valve

Product Description

The Watts 0559165 Series LFMMV is a thermostatic mixing valve designed for applications requiring accurate temperature control. This mixing valve features a quick-connect design and is suitable for both residential and commercial environments. The valve utilizes thermal actuation technology, ensuring precise regulation of water temperatures.

• Lead free brass construction for safety.
• Locking mechanism to maintain set temperature.
• Solid wax hydraulic principle for reliable mixing.

Product Highlights

This valve is ideal for supplying tempered water to baths and lavatories, providing effective control over hot and cold water supplies.

Product Information

Standard Information

• Brand: Watts
• Part Number: 0559165

Technical Specifications

• Body Material: Copper Silicon Alloy
• Nominal Size: 3/4 in
• Flow Capacity: 20 gpm
• Pressure Rating: 150 psi
• Temperature Rating: 200 deg F
• Inlet to Outlet Length: 6-15/16 in
• Adjustment Range: 80 to 120 deg F
• Compliance: ASSE 1017, ASSE 1069, ASSE 1070
