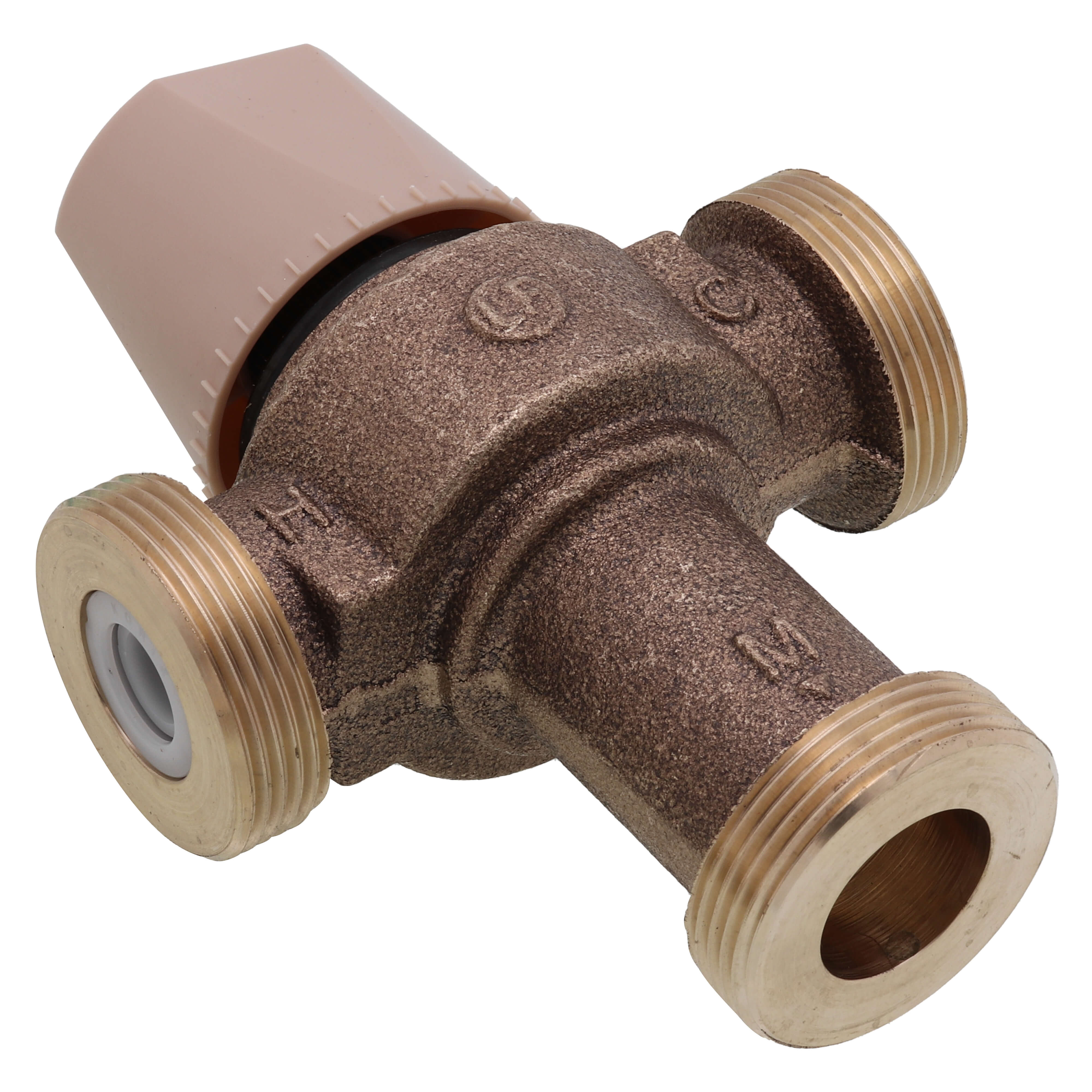

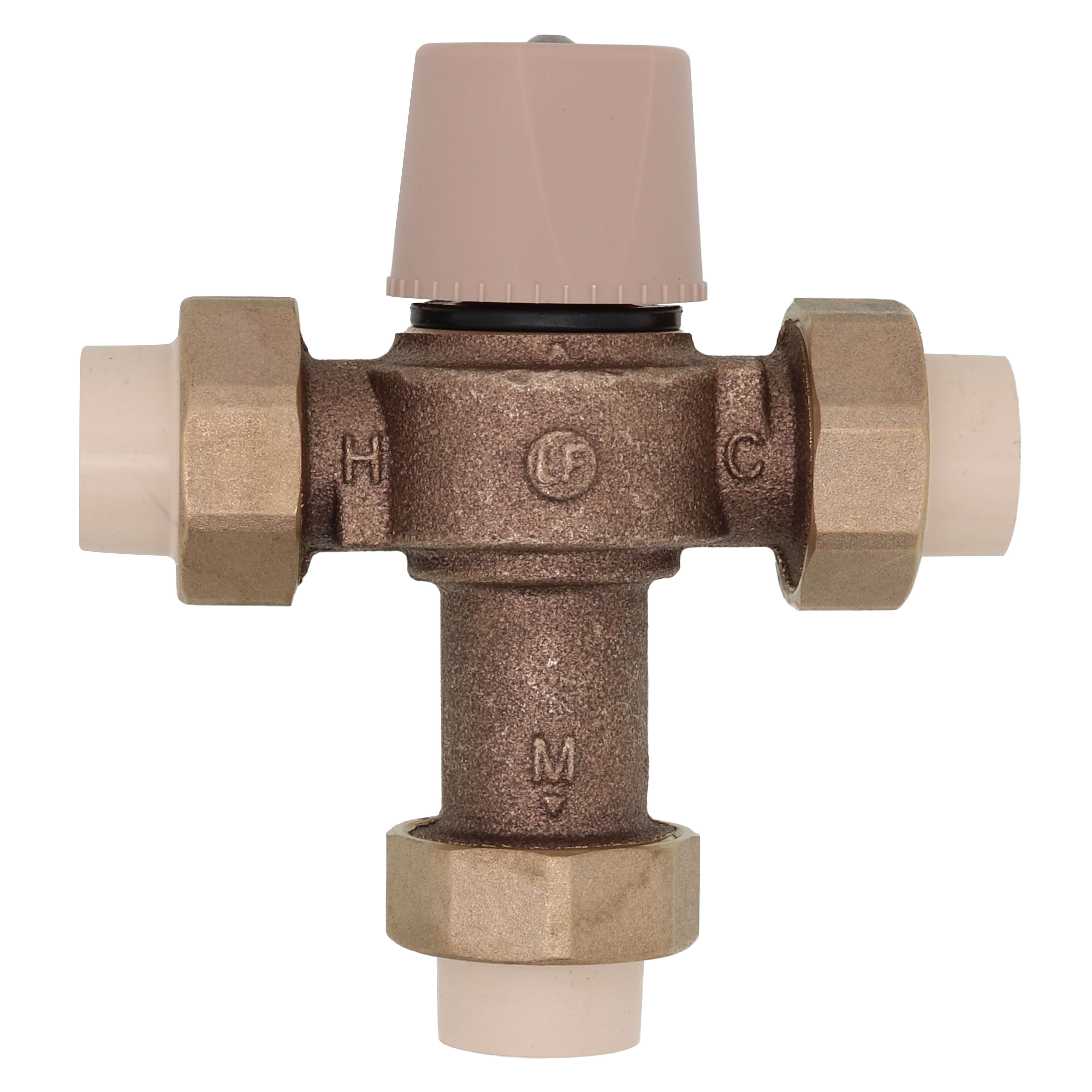

Watts 0559162 thermostatic mixing valve 3/4 inches CPVC end connections adjustable out 80-120 F

Product Description

The WATTS 0559162 is a 3/4" lead-free thermostatic mixing valve with CPVC end connections, designed for residential, commercial, or institutional use. It supplies baths and lavatories with tempered water. The valve features a double throttling design to control both hot and cold water, ensuring a consistent mixed outlet temperature between 80°F and 120°F.

• Lead-free brass body
• Solid wax hydraulic principle thermostat for dependable mixing

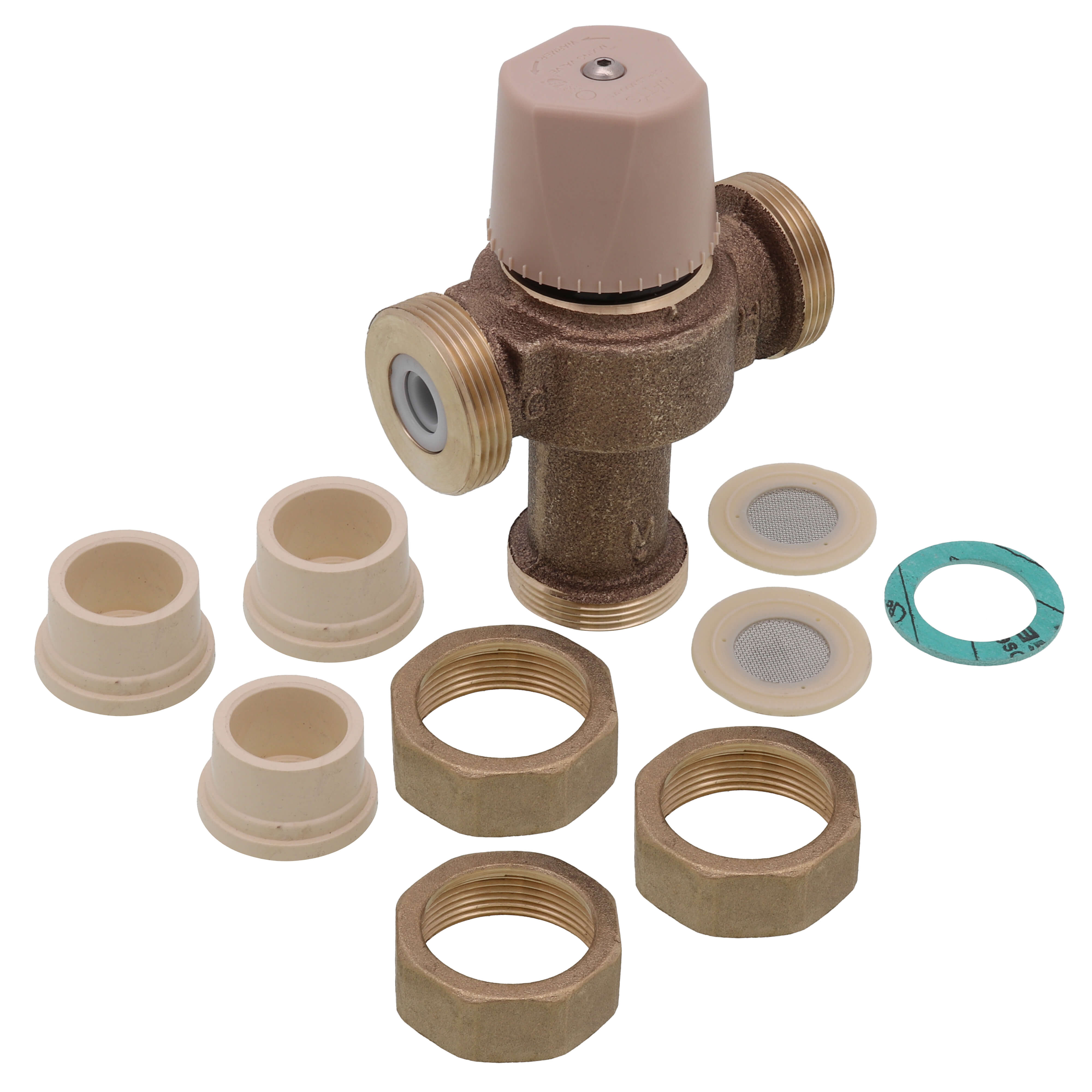

• Integral filter washers and check valves

Product Highlights

This thermostatic mixing valve ensures safe and consistent water temperatures for various applications.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0559162
• Country of Origin: Unknown

Technical Specifications

• Description: 3/4 In Lead Free Thermostatic Mixing Valve, Cpvc End Connections, Adjustable Out 80-120 F
• Manufacturer: Watts
• PDW MFR CAT: 0559162
• Pittman #: 228495
• Brand: Watts
• Model: LFMMV-CPVC-M1
• MPN: 0559162
• UPC: 098268452402
• Valve Application: Tempered Domestic Potable Water
• Body Material: Lead Free Copper Silicon Alloy
• Valve Connection: CPVC
• Inlet Connection Size: 3/4"
• Outlet Connection Size: 3/4"
• Minimum Flow GPM: 0.5 GPM
• Minimum Outlet Temperature: 80
• Maximum Outlet Temperature: 120
• Max Pressure: 150 psi
• Point-of-Use Certified: Yes
• Point-of-Source Certified: Yes
• ASSE Classification: 1017, 1069, 1070
• Body Finish: Rough Bronze
• Buy American Act Compliant: YES
• Capacity: 13 GPM at 45PSI
• Cold Inlet Temperature Range: 39°F to 85°F
• Cold Water Bypass: No
• Cold Water Inlet Connection Size: 3/4 IN
• Cold Water Inlet Connection Type: Push
• Hot Inlet Temperature Range: 120°F to 180°F
• Hot Water Inlet Connection Size: 3/4 IN
• Hot Water Inlet Connection Type: Push
• Lead Free: YES
• Maximum Pressure Differential: 25%
• Maximum Working Pressure-PSI: 150
• Minimum Differential Temperature-Fahrenheit: 5°F
• Minimum Static Pressure-PSI: 30
• Outlet Connection Type: Push
• Outlet Temperature Accuracy: +/- 7°F
• Part Number: 0559162
• Series: LFMMV
• Temperature Adjustment Range: 80°F to 120°F
• Wi-Fi Enabled: No
• Outlet Connection Size-Metric: 20 MM
• Category: Mixing Valves
• Outlet Type: Push
• Inlet Type: Push
• Depth: 5.56 in
• Length: 5.25 in
• Width: 0.81 in
• Connection Size: 3/4 inch
• Minimum Supply Pressure Static: 30psi (207 kPa)
• Hot Inlet Pressure: 120°F – 180°F (49°C – 82°C)
• Cold Inlet Pressure: 39°F – 85°F (4°C – 29°C)
• Maximum Temperature: 200°F (93°C)
• Maximum Pressure: 150psi (1034 kPa)
• Minimum Flow: 0.5 gpm (1.9 lpm) @ 0.8psi (0.55 kPa)
• Maximum Flow: 20 gpm (76 lpm) @ 125psi (862 kPa)
