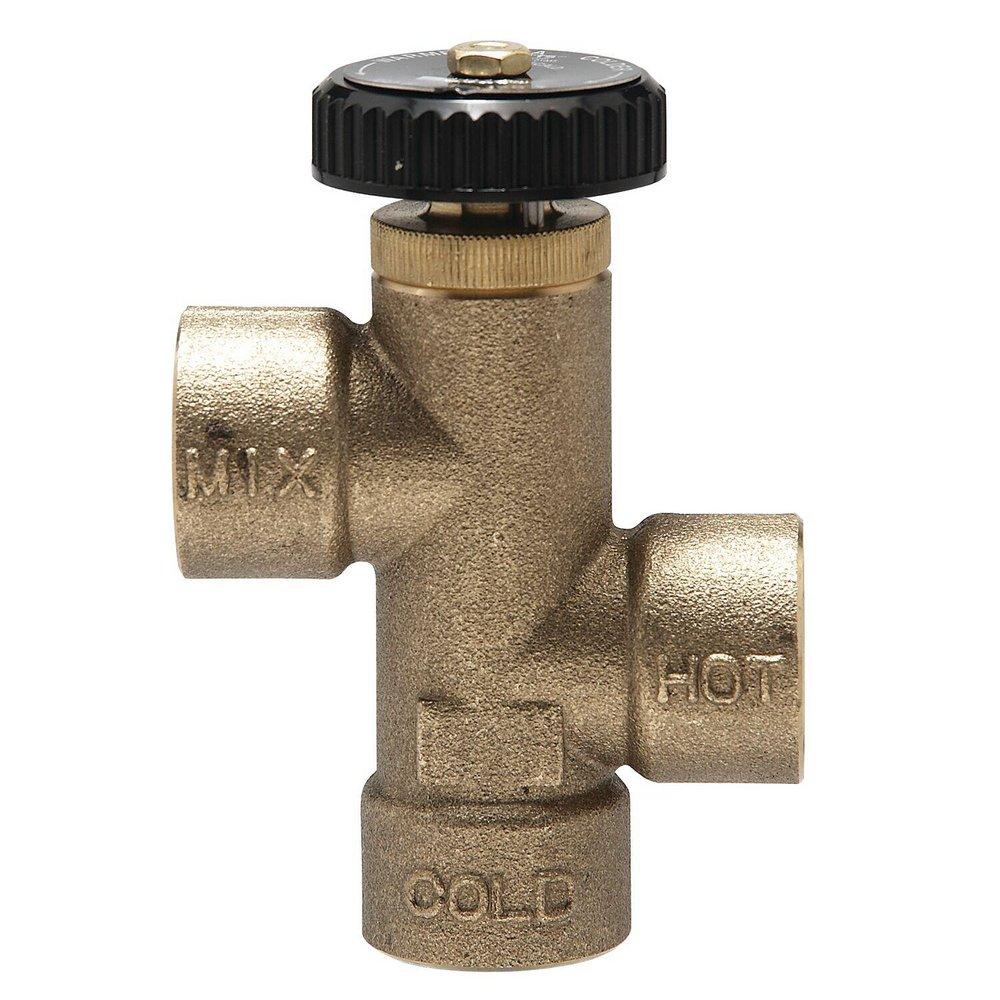

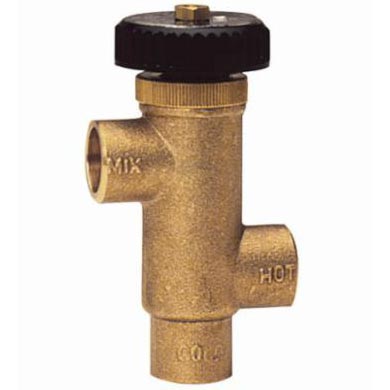

Watts 0559136 Series LF70A 3/4 in Sweat Thermostat Mixing Valve

Product Description

The Watts Series LF70A Mixing Valve with MPN 0559136 is designed to provide precise temperature control for domestic water supply systems. This valve is ideal for lower tempered radiant heating applications located at or near boilers and hot water heaters. This device features a lead-free brass body and is constructed with reliable threaded connections. The integral thermostat allows for effective mixing of hot and cold water, ensuring optimal performance in heating systems.

• Lead-free brass body construction
• Easy to maintain thermostat assembly
• Dial adjustment cap for precise control

Product Highlights

This valve is particularly useful in residential settings, ensuring safety without compromising water quality. It operates effectively within a temperature range from one hundred to one hundred thirty degrees Fahrenheit.

Product Information

Standard Information

• Application: Commercial and Residential
• Body Material: Brass

Technical Specifications

• End Style: Threaded
• Flow Rate: 2 gpm
• Maximum Pressure: 150 psi
• Dimensions: Four and one-eighth inches long by two and three-quarter inches wide
• Temperature Rating: 100 to 130 degrees Fahrenheit
• Warranty: Limited
