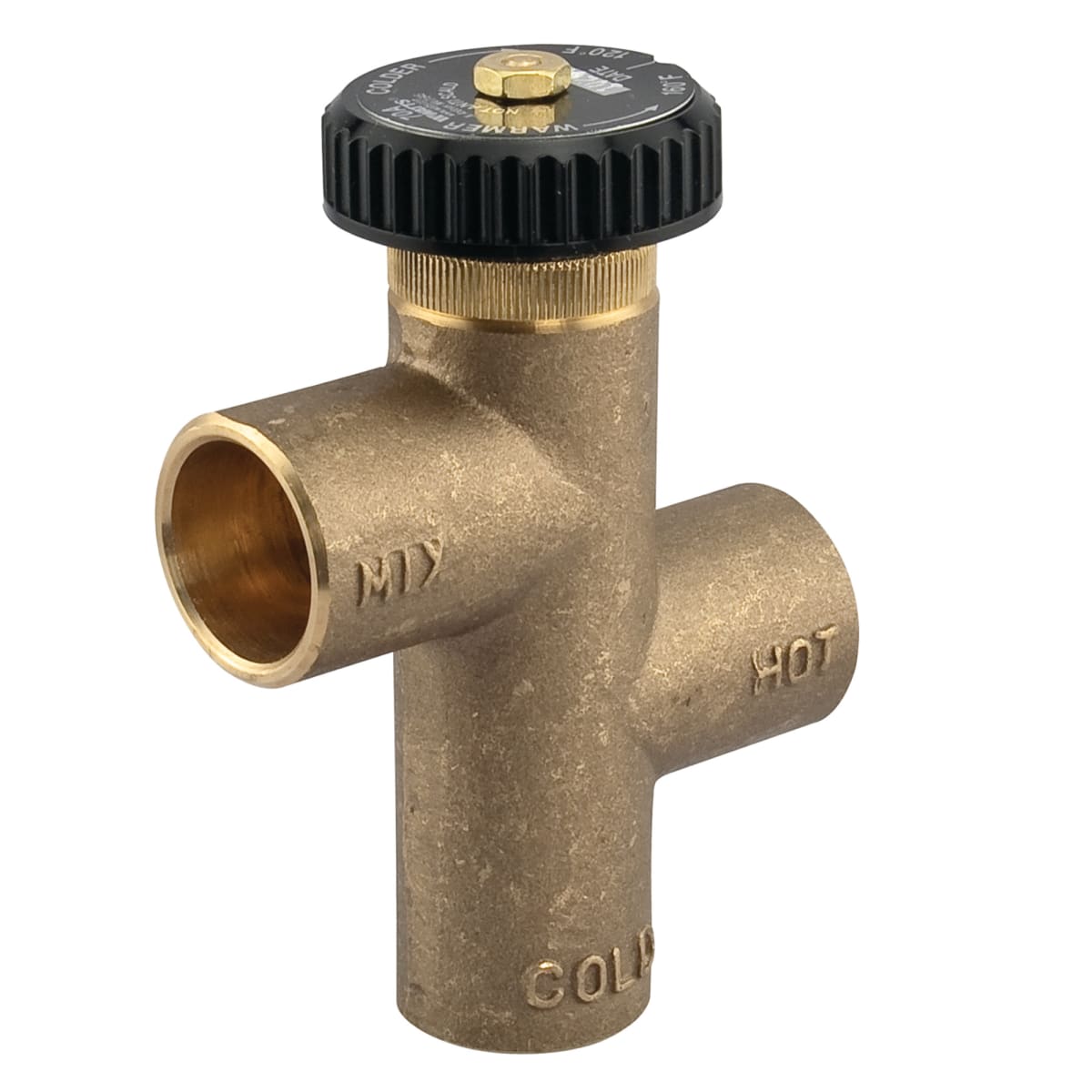

Watts 0559133 3/4 Brass Lead Free Hot Water Extender Mixing Valve

Product Description

The Watts 0559133 is a three quarters brass lead-free hot water extender mixing valve designed for domestic water supply systems. This valve is suitable for use in tankless heaters, water heaters, and solar applications. It is typically installed at or near the boiler or hot water heater. The construction includes a lead-free brass body, solder connections, a thermostat, and stainless steel springs. This facilitates effective temperature management.

• Lead free brass body construction
• Temperature range from 120 to 160 degrees F
• Solder connections for secure installation

Product Highlights

The valve offers a hydraulically operated thermostat which opens a spring-loaded check in the cold water inlet, allowing for efficient mixing of cold and hot water. The entire assembly is designed for easy maintenance and replacement.

Product Information

Standard Information

• Brand: Watts
• MPN: 0559133

Technical Specifications

• Type: Mixing Valve
• Material: Lead Free Brass
• Flow Rate: 0.5 to 9 GPM
• Connection Size: 3/4
• Connection Type: Socket
• Max Temperature: 160 degrees F
• Min Temperature: 120 degrees F
• Max Pressure: 150 psi
