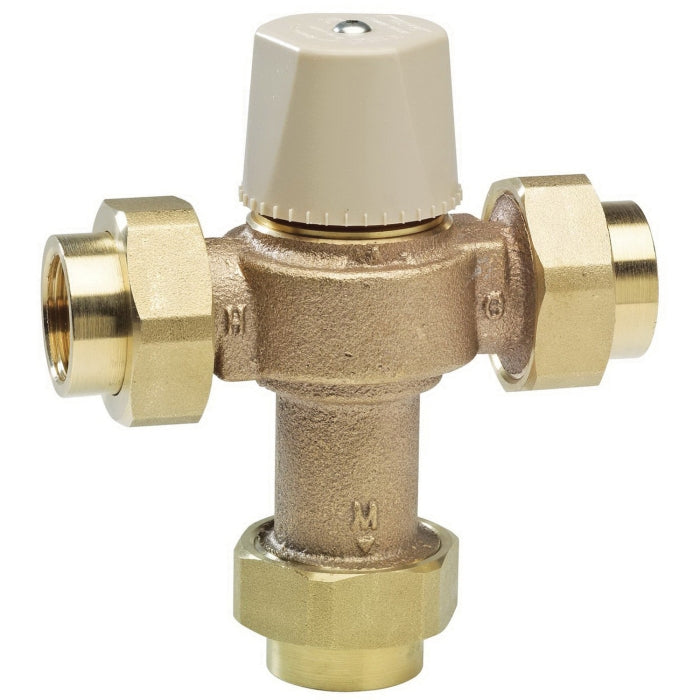

WATTS 0559119 LFMMV-UT-M1 Thermostatic Mixing Valve 3/4 Inch Union Thread Lead-Free

Product Description

Watts model LFMMV-UT-M1 is a 3/4 inch thermostatic mixing valve, perfect for both residential and commercial applications requiring tempered water. This valve features a solid wax hydraulic thermostat for dependable mixing of hot and cold water, ensuring safety and efficiency.

• Double throttling control for precise temperature management.
• Constructed from lead-free cast copper silicon alloy, ensuring compliance with health standards.
• Includes integral filter washers and check valves for reliability and performance.

Product Information

Standard Information

• Applications: Suitable for residential, commercial, or institutional use.
• Temperature Rating: Adjustable from 80 to 120 degrees Fahrenheit.
• Pressure Rating: Up to 150 psi.

Technical Specifications

• Connection Size: 3/4 inch.
• Connection Type: Union thread.
• Material: Cast copper silicon alloy.
• Flow Rate: 0.5 - 20 gallons per minute.
• Standards/Certifications: ASSE 1017, 1069, 1070; NSF 61-G certified; UPC listed.
