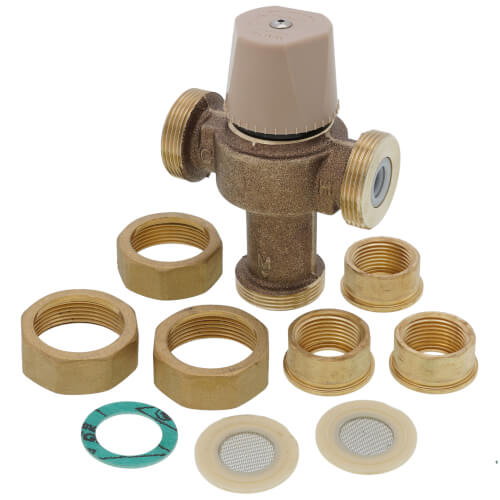

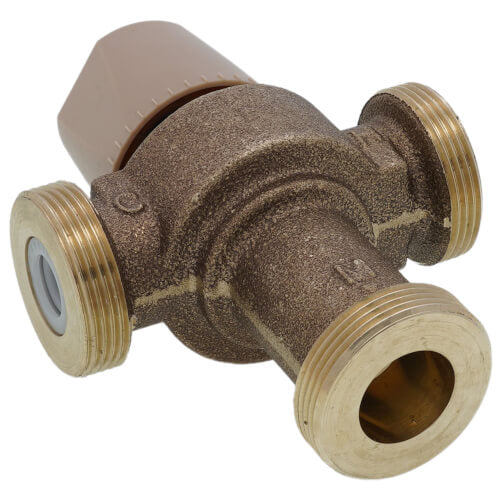

Watts 0559119 / 3/4LFMMVM1-UT lfmmv-m1-ut Lead Free Mixing Valve (Threaded)

Product Description

The WATTS 0559119 / 3/4LFMMVM1-UT Lead Free Mixing Valve can be set between 80°F and 120°F with flow rates from 0.5 gpm to 20 gpm. It features a double throttling design to control both hot and cold water supply. Integral inlet filter washers and check valves protect against cross flow. Maximum pressure is 150psi.

• FNPT x FNPT Connection
• Thermostat controls both hot and cold water
• Integral filter washers and check valves

Product Highlights

Lead-free mixing valve with adjustable temperature range and integral check valves for reliable performance in residential, commercial, and institutional settings.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0559119 / 3/4LFMMVM1-UT
• Country of Origin: Domestic

Technical Specifications

• Size: 3/4"
• Lead Free: Yes
• Standards Met: ASSE 1070, ASSE 1017, ASSE 1069
• Application: Point of Source, Point of Use, Heating
• Max Temp (F): 120°F
• Material: Copper Silicon Alloy
• Connection Type: FNPT x FNPT
• Connection Method: Threaded
• Max Pressure (PSI): 150
• Min Temp (F): 80°F
• Temperature Range (F): 80°F - 120°F
• Exterior Finish: Copper
• Inlet Connection Size: 0.75 Inches
• Inlet Connection Type: threaded
• Outlet Connection Type: Threaded
• Maximum Operating Pressure: 150 Pound per Square Inch
• Number of Ports: 1
• Manufacturer: WATTS
• Part Number: LFMMVM1-UT
• Item Package Quantity: 1
• Inlet Port: 3/4 inch
• Max GPM: 20
• Max PSI: 150
• Cold Water Inlet Connection Size: 3/4" FNPT
• Hot Water Inlet Connection Size: 3/4" FNPT
• Maximum Pressure Rating: 150 PSI
• Body Material: Copper Silicon Alloy
• Body Finish: Rough Bronze
• Capacity: 13 GPM at 45 PSI
• Maximum Working Pressure: 150 PSI
• Field Adjustable Range: 80 to 120° Fahrenheit
• Maximum Flow Rate: 20 GPM at 125 PSI
• Minimum Flow Rate: .5 GPM
• Maximum Pressure Differential: 25%
• Minimum Differential Temperature: 5° Fahrenheit
• Outlet Temperature Accuracy: +/- 7° Fahrenheit
• Minimum Static Pressure: 30 PSI
• Series: LFMMV
• Domestic/Import: Domestic
• End Style: FNPT
• Flow Capacity: 0.5 to 20 gpm
• Media: Hot/Cold Water
• Nominal Size: 3/4 In
• Pressure Rating: 150 psi
• Softgoods Material: Buna-N®/EPDM O-Ring
• Temperature Rating: 80 to 120 deg F
• MPN: 0559119, WLFMMVM1UTF
• Shape: Tee
• Compatible Brand: Watts
• Item Length: 2.63 in
• Item Height: 6.31 in
• Item Width: 4.5 in
