Watts 0559118 vlv mxg thm 3/4 in sldr 150 psi lf

Product Description

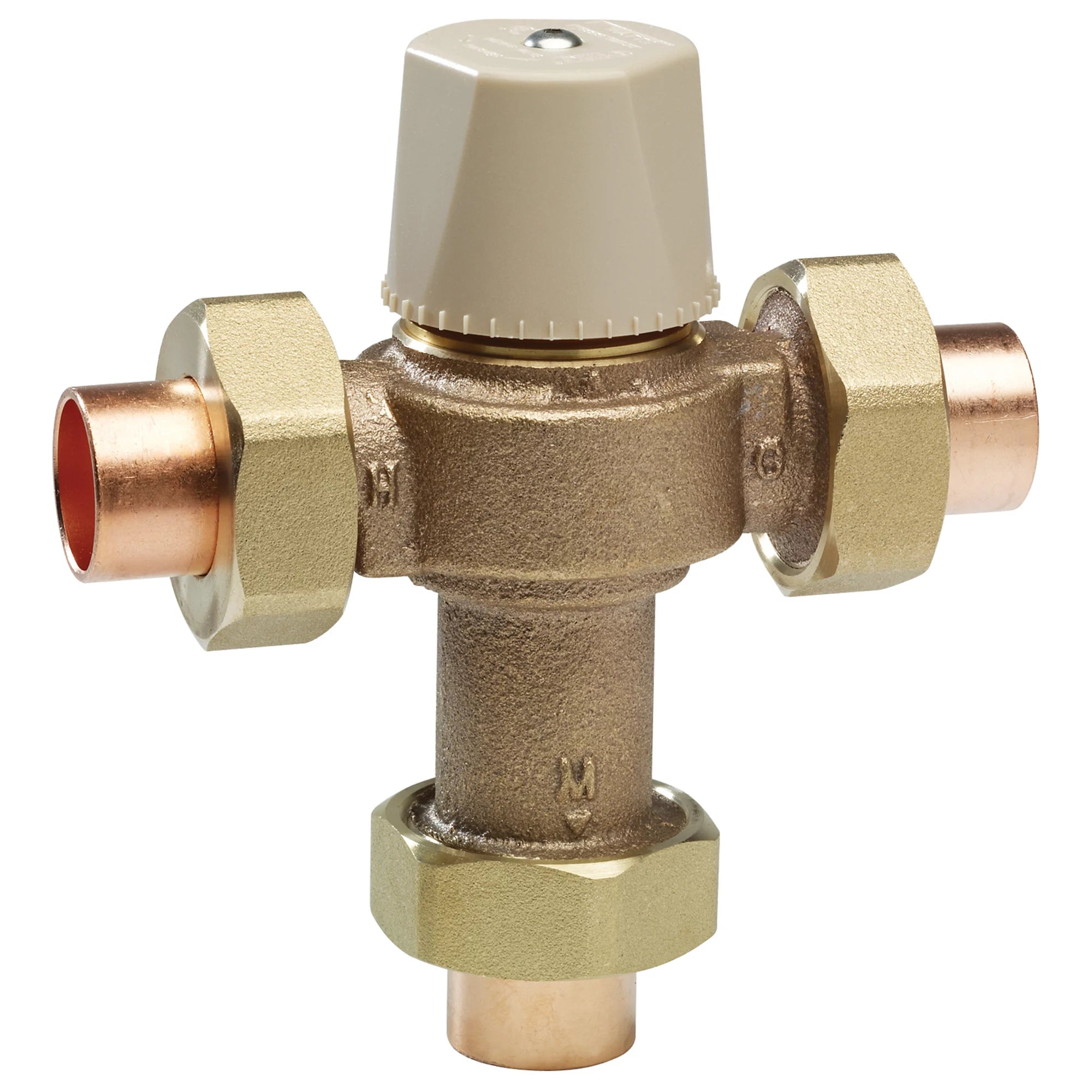

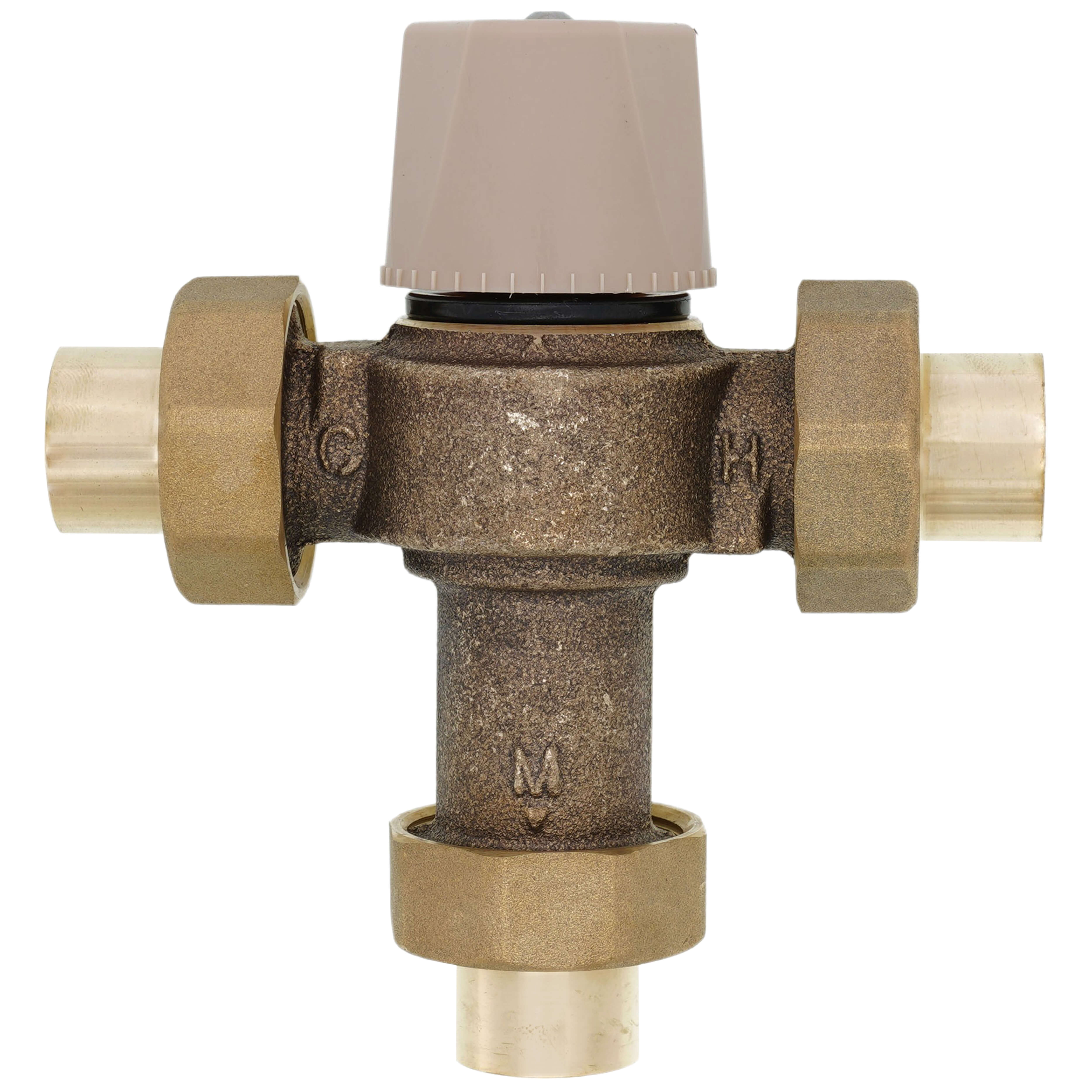

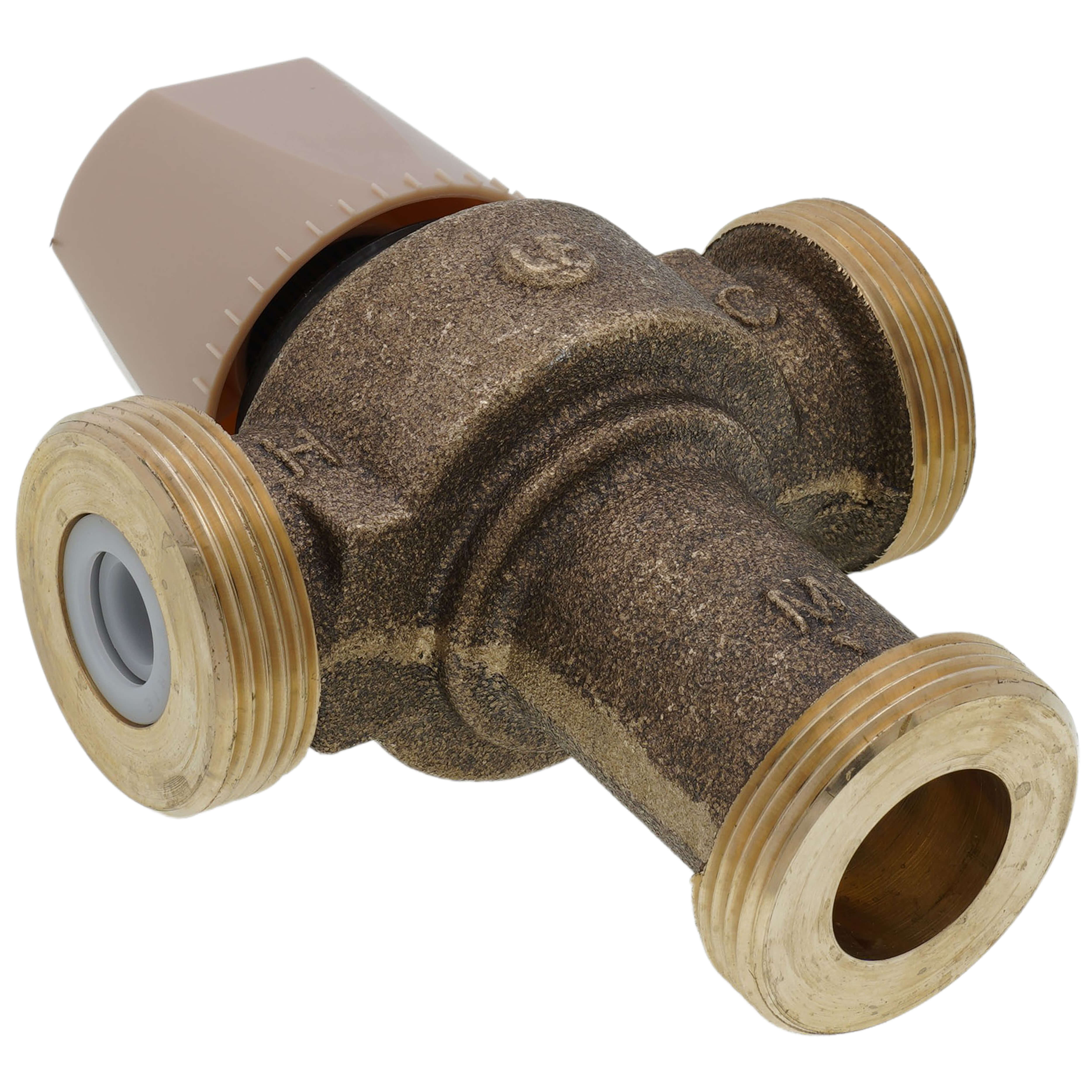

The Watts 0559118 thermostatic mixing valve, from the LFMMVM1-US series, maintains and limits mixed hot water to a desired temperature. It can be set between 80 to 120 deg F, with flow rates from 0.5 to 20 gpm. This valve features lead-free construction and a double throttling design to control hot and cold water supply.

• Thermal actuation technology for precise temperature control
• Lead free cast copper silicon alloy body construction

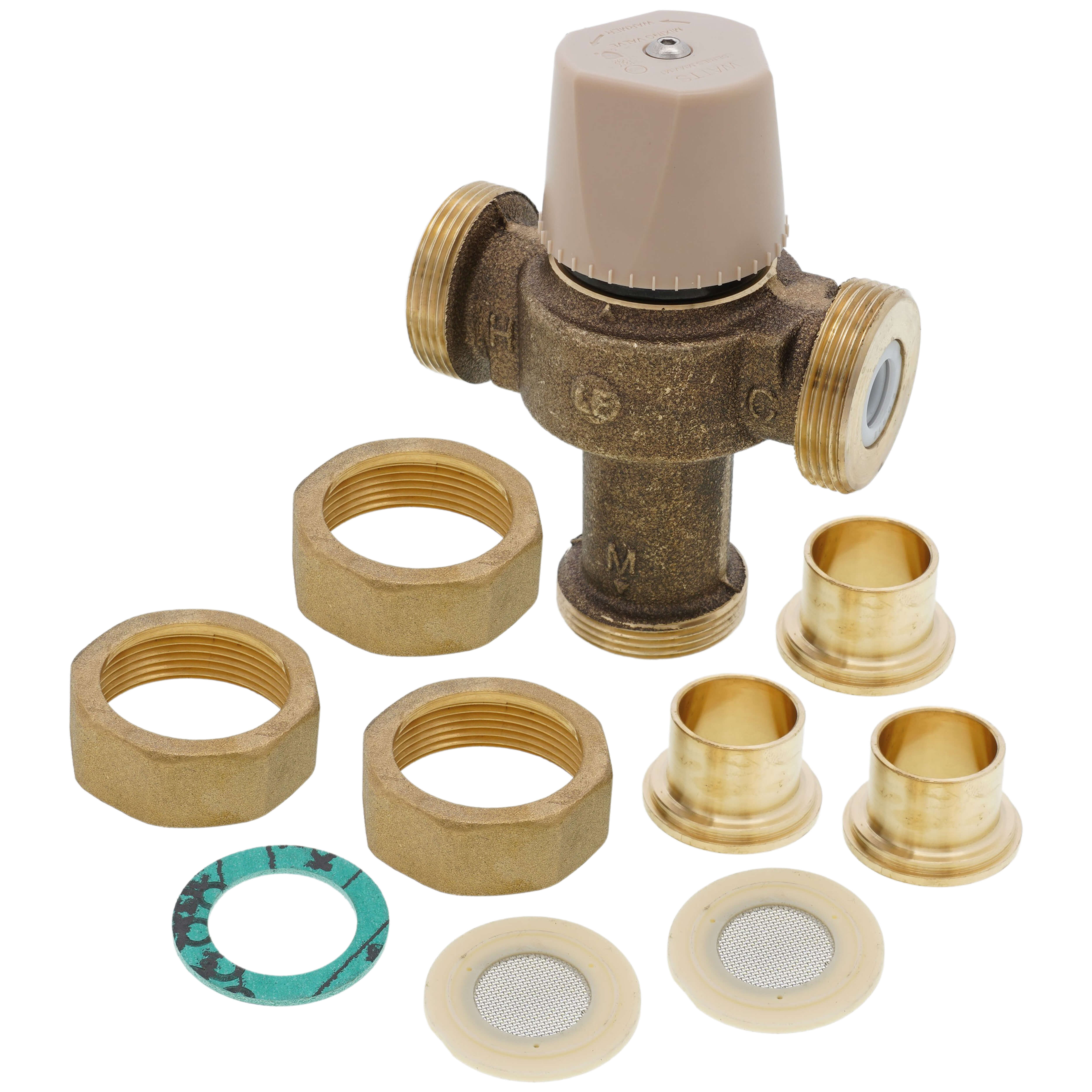

• Integral filter washers and check valves

Product Highlights

Thermostatic mixing valve with precise temperature control and lead-free construction.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0559118
• Country of Origin: United States

Technical Specifications

• Media: Hot/Cold Water
• Series: LFMMVM1-US
• Manufacturer: Watts Water Technologies
• Nominal Size: 3/4 in
• Body Material: Copper Silicon Alloy
• Flow Capacity: 0.5 to 20 gpm
• Pressure Rating: 150 psi
• Softgoods Material: Buna-N /EPDM O-Ring
• Temperature Rating: 80 to 120 deg F
• Vendor: Watts
• Category: Valves
• Product UPC: 098268451818
• Model Number: LFMMVM1-US
• Product Type: Mixing Valve
• Product Category: PVF
• Connection Size: 3/4 in
• Connection Type: Union Solder
• Finish: Rough Bronze
• Height: 5-5/8 in
• Model: LFMMVM1-US
• Applications: For residential, commercial and institutional
• Standards/Certifications: ASSE 1017, 1069, 1070, NSF 61-G certified, UPC listed
• Brand: Watts
• Valve Application: Tempered Domestic Potable Water
• Valve Connection: Sweat
• Inlet Connection Size: 3/4"
• Outlet Connection Size: 3/4 IN
• Minimum Flow GPM: 0.5 GPM
• Minimum Outlet Temperature: 80
• Maximum Outlet Temperature: 120
• Max Pressure: 150 psi
• Point-of-Use Certified: Yes
• Point-of-Source Certified: Yes
• ASSE Classification: 1017, 1069, 1070
• Weight: 2.30
• Size: 3/4"
• Lead Free: Yes
• Standards Met: ASSE 1069, ASSE 1017, ASSE 1070
• Application: Point of Source, Point of Use, Heating
• Max Temp (F): 120 °F
• Material: Bronze
• Connection Method: Sweat
• Body Pattern: 3-Way
• Min Temp (F): 80 °F
• Temperature Range (F): 80 °F - 120 °F
• Composition: Body - Lead Free cast copper silicon alloy; Disc - Stainless steel; Thermostat Assembly - Copper; O-rings - Buna-N, EPDM; Pistons - Polysulfone (PSU); Springs - Stainless Steel
• Prop 65: true
• Cubic Measurement: 0.0432
• Length: 6.313
• Width: 4.5
• Country of Origin: USA
• Body Finish: Rough Bronze
• Buy American Act Compliant: YES
• Capacity: 20 GPM at 125 PSI
• Cold Inlet Temperature Range: 39 to 85 degree F
• Cold Water Bypass: No
• Cold Water Inlet Connection Size: 3/4 IN
• Cold Water Inlet Connection Type: Socket
• Cold Water Inlet Thread Type: Does Not Apply To Product
• EAN: 098268451818
• Factory Set Temperature-Fahrenheit: 105
• Flow Rate: 0.5 to 20 GPM
• Hot Inlet Temperature Range: 120 to 180 degree F
• Hot Water Inlet Connection Size: 3/4 IN
• Hot Water Inlet Connection Type: Socket
• Hot Water Inlet Thread Type: Does Not Apply To Product
• Maximum Pressure Differential: 25 Percent
• Maximum Working Pressure-PSI: 150
• Minimum Differential Temperature-Fahrenheit: 5
• Minimum Static Pressure-PSI: 30
• Outlet Connection Size-Metric: 20 MM
• Outlet Connection Type: Socket
• Outlet Temperature Accuracy: +/- 7 degree F
• Outlet Thread Type: Does Not Apply To Product
• Part Number: 0559118
• Temperature Adjustment Range: 80 to 120 degree F
• Wi-Fi Enabled: No
• End Style: Solder
• O-Ring Material: Buna-N /EPDM
• Domestic/Import: Domestic
