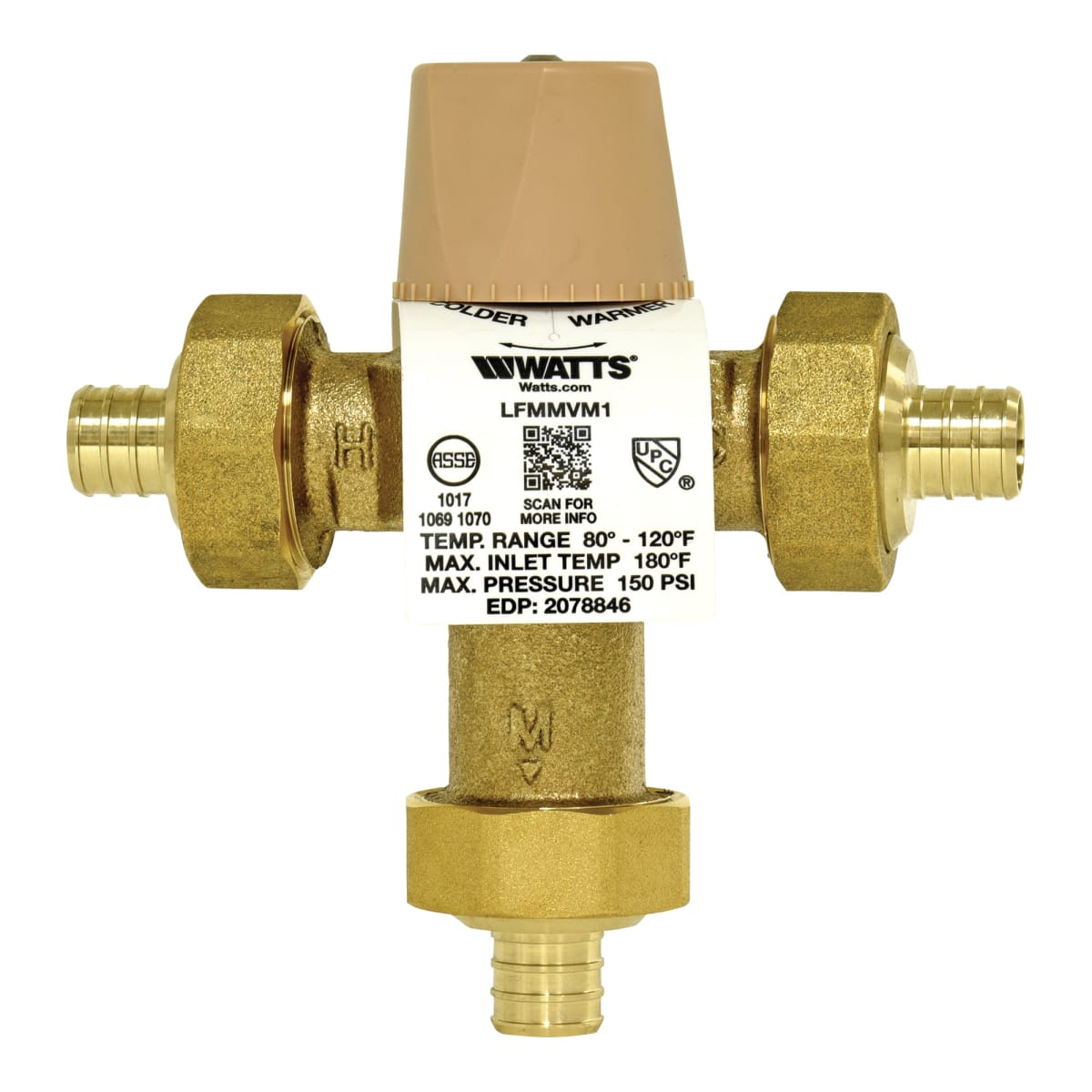

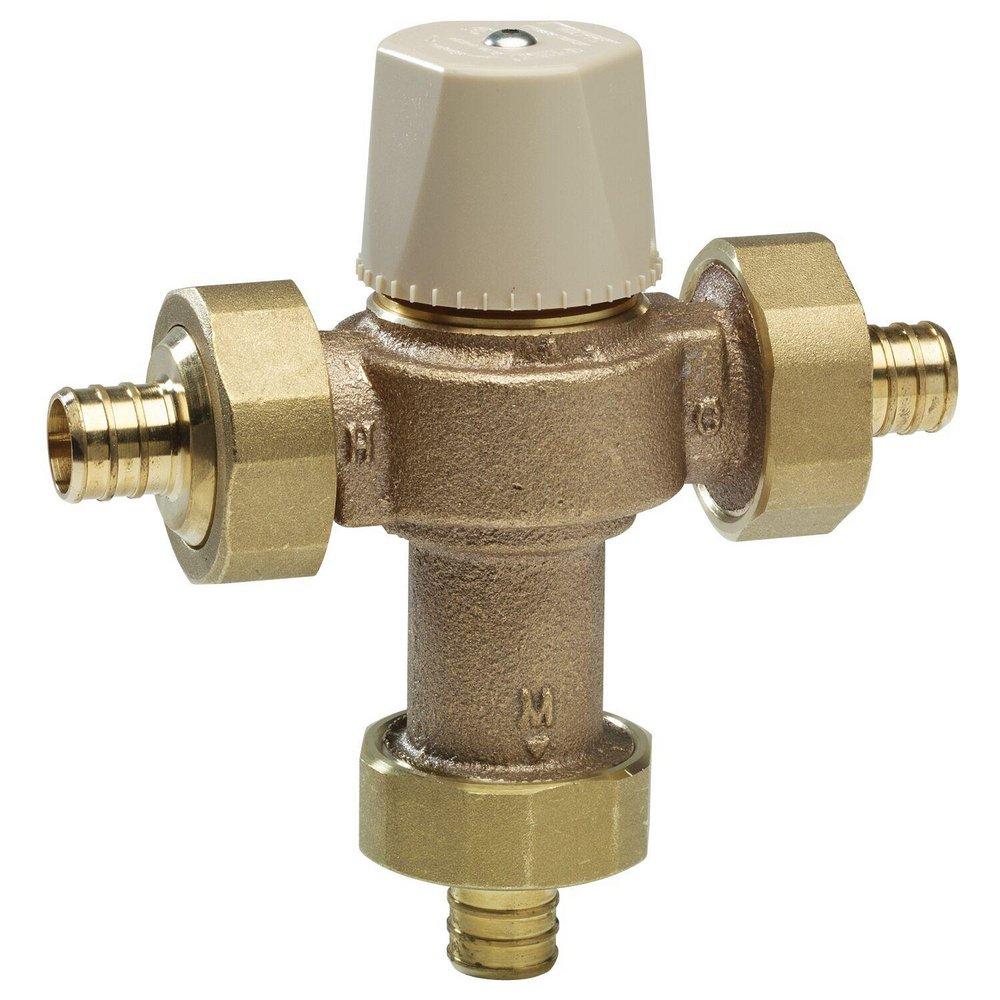

Watts 0559117 Series LFMMV 3/4 in. PEX Thermostat Mixing Valve

Product Description

The Watts Series LFMMV 3/4 inch PEX Thermostat Mixing Valve, part number 0559117, is suitable for commercial, residential, and institutional applications. It provides a reliable supply of tempered water to baths and lavatories. This valve features a double throttling design to precisely manage both hot and cold water supply to the mixed outlet. The body is made of lead-free brass and includes crimp end connections for PEX tubing, integral filter washers, and check valves with a secure locking mechanism for temperature settings.

• Lead-free brass construction for safety
• Adjustable temperature range from 80 to 120 degrees Fahrenheit
• Maximum pressure rating of 150 psi

Product Highlights

This valve is designed for safe and effective temperature control in plumbing systems.

Product Information

Standard Information

• Brand: Watts
• MPN: 0559117

Technical Specifications

• Material: Lead Free Copper Silicon Alloy
• Flow Rate: 0.5 to 20 GPM
• Connection Size: 3/4 inch
• Connection Type: Crimped
• Maximum Outlet Temperature: 120 degrees Fahrenheit
• Minimum Outlet Temperature: 80 degrees Fahrenheit
• Max Pressure: 150 psi
• Certification: ASSE 1017, ASSE 1069, ASSE 1070
