Product Description

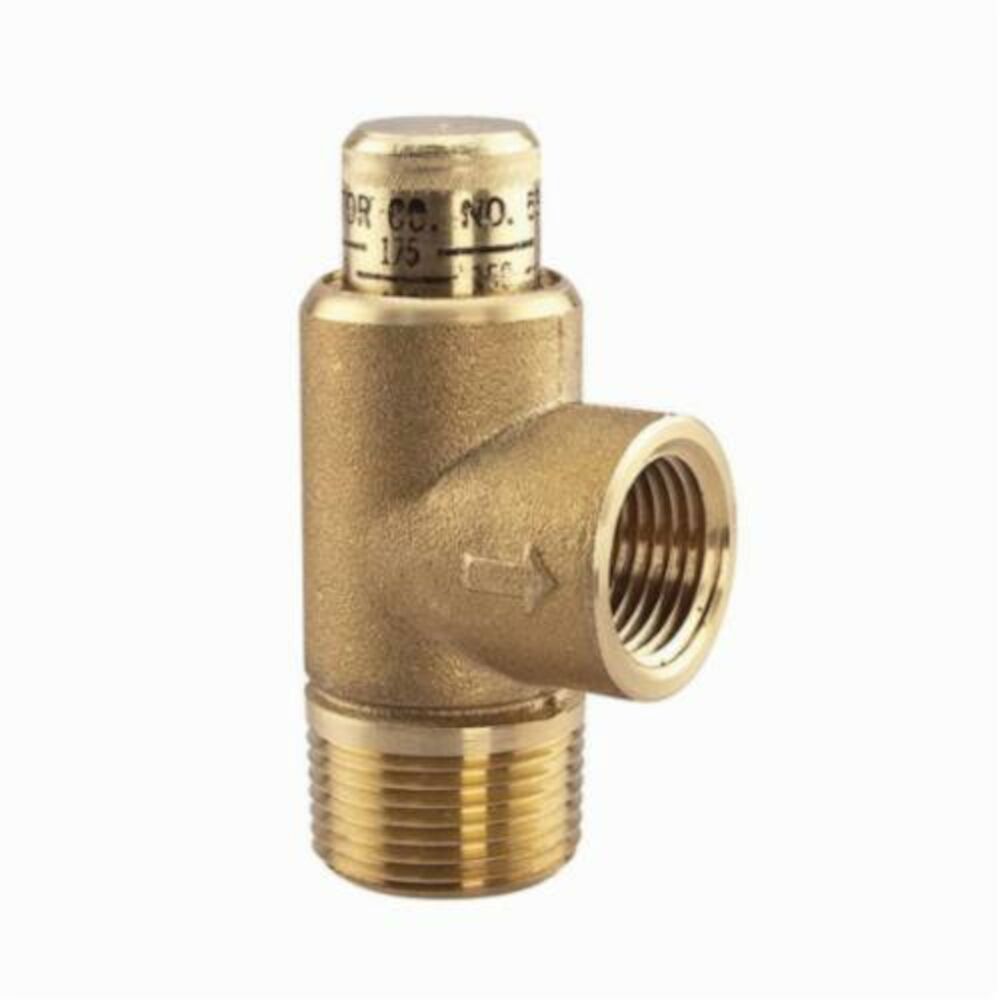

The Watts 0556036 Series LF530C is a 3/4 inch brass and rubber pressure relief valve. It offers male threaded x female threaded connections and operates within a 50 to 175 psi range. This valve is ideal for commercial and residential applications to safeguard against excessive pressure in systems containing water, oil, or air.
- Lead-free brass construction
- Supports pressures from 50 to 175 psi
- Calibrated adjustment feature
Product Highlights
This is a spring-operated pressure relief valve, designed for use in non-ASME system applications. It excels in providing protection against thermal expansion and overpressure in various fluid systems.
Product Information
Standard Information
-
Brand: Watts
-
Model: 0556036
Technical Specifications
-
Connection Size: 3/4 inch
-
Connection Type: Male NPT x Female NPT
-
Dimension: 3 inches high x 1-5/8 inches wide
-
Disc Material: Buna-N
-
Material: Brass
-
Pressure Rating: 50 - 175 psi
-
Series: LF530C
-
Temperature Rating: 180 degrees Fahrenheit
-
Type: Calibrated
-
Applications: For commercial and residential use
