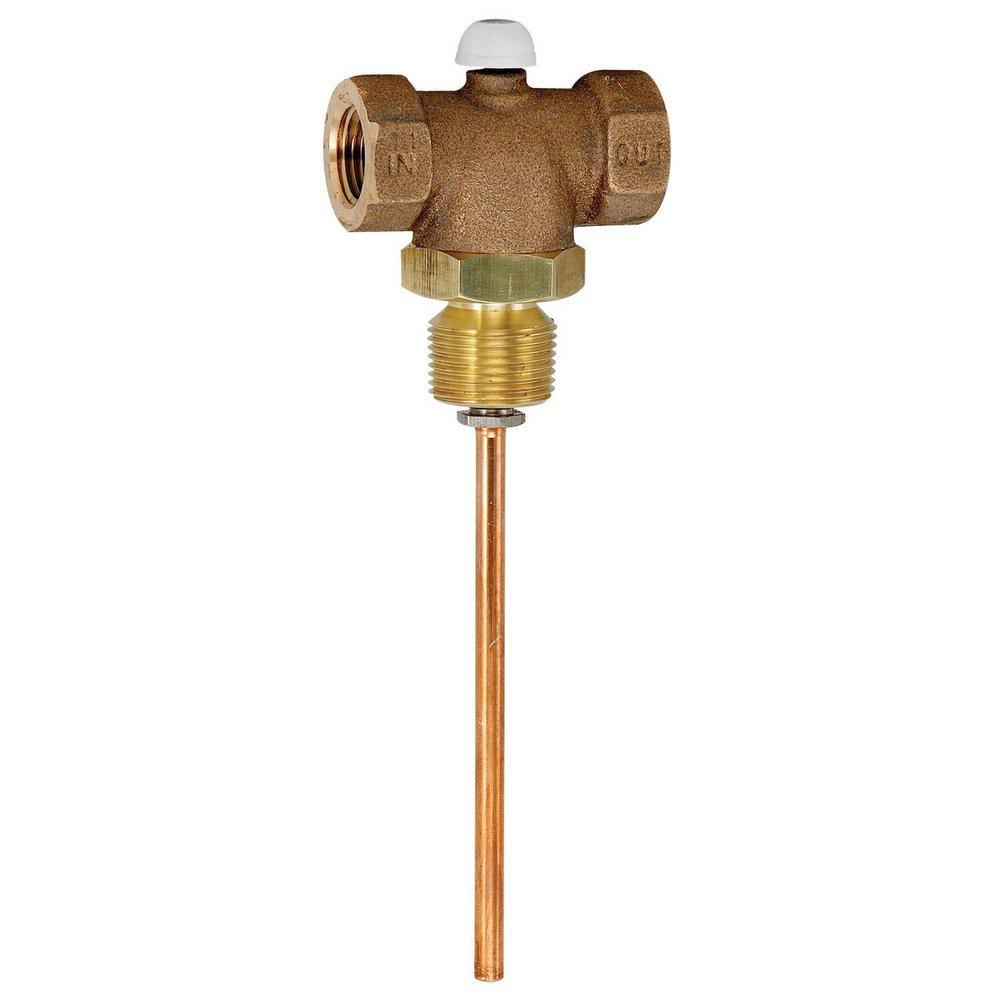

Watts 0556025 Series LF210-5 3/4 in Bronze Male x Female Shut Off Valve

Product Description

The Watts 0556025 Series LF210-5 is a 3/4 inch bronze male x female shut off valve designed for gas water heater applications. This valve plays a critical role in preventing overheating of the water supply by automatically cutting off the gas flow if the temperature exceeds two hundred and ten degrees Fahrenheit. The valve features a manual reset option for restoration of service after a trip, ensuring safety in hot water scenarios.

• Constructed with Buna-N disc to metal seating for a reliable seal.
• Manual reset button allows for convenient restoration of gas flow after a shut off.
• Designed to accommodate water heaters with insulation up to three-quarter inch thick.

Product Highlights

The LF210-5 valve is ideal for emergency temperature protection in gas water heaters, safeguarding systems by reacting swiftly to dangerously high temperatures.

Product Information

Standard Information

• Brand: Watts
• MPN: 0556025

Technical Specifications

• Application: Gas Water Heater
• Country of Origin: US
• Domestic/Import: Domestic
• Inlet to Outlet Length: 2.5 inches
• Media: Gas/Liquid
• Mfg Standards/Approvals: CSA Certified
• Nominal Size: 3/4 inch
• Package Height: 2.81 inches
• Package Length: 8.25 inches
• Package Weight: 1.01 lb
• Package Width: 1.5 inches
• Series: LF210-5
• Softgoods Material: Buna-N Disc
• Temperature Rating: 210 degrees F
• Top to Inlet Center: 8 inches
• Warranty: Limited
