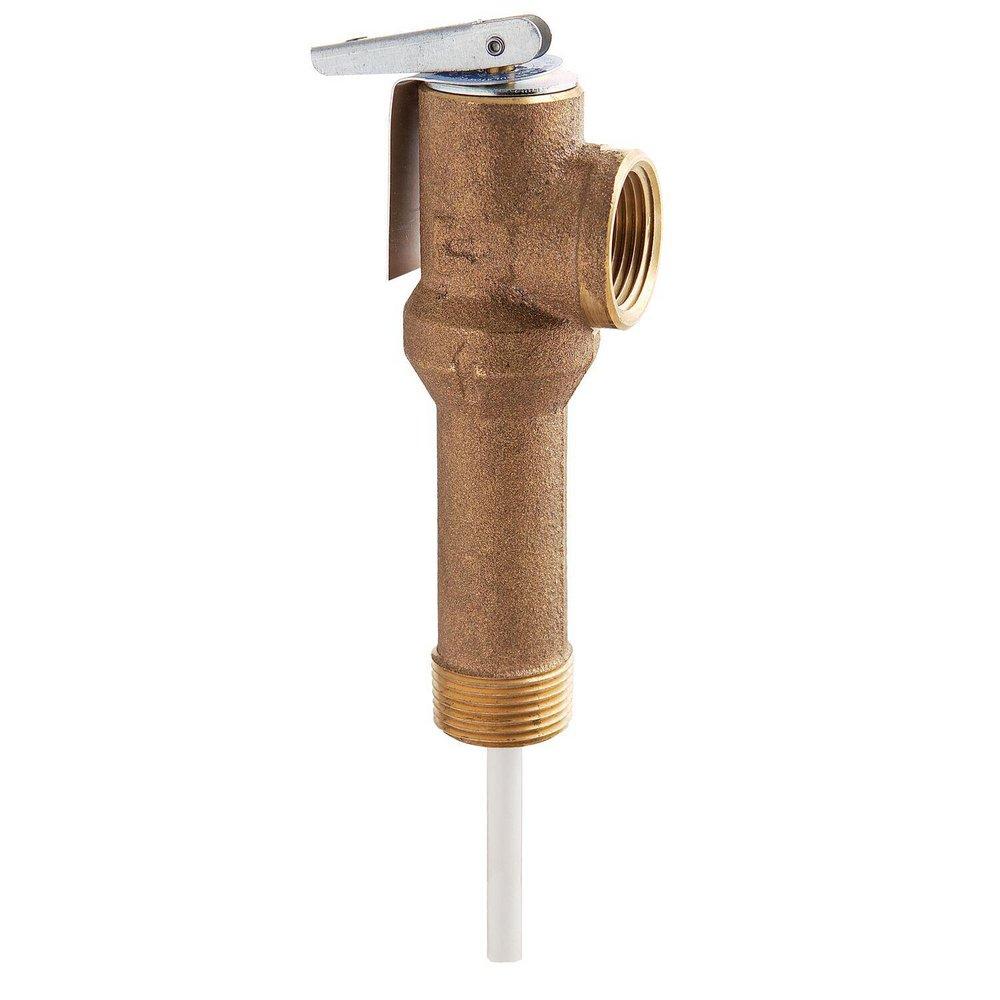

Watts 0556004 LF100XL 3/4 Inch Bronze Temperature and Pressure Relief Valve 150 PSI 210 Degrees Replacement 0556004

Product Description

The Watts LF100XL Relief Valve, model number 0556004, is an essential component designed for efficient temperature and pressure regulation. Crafted from lead-free brass, this valve meets the NSF/ANSI standards 372 and 67 ensuring safety and quality.

• Extended inlet shanks suitable for modern water heaters with thick insulation.
• Lead-free construction complies with health safety regulations.
• Durable stainless steel spring for reliable operation.

Product Highlights

Featuring a CSA rating, the Watts LF100XL is a self-closing T&P Relief Valve suitable for water heaters up to 105,000 BTU/Hr. It is equipped with an extra extended inlet, designed for use with up to three inches of insulation around water heaters.

Product Information

Standard Information

• Brand: Watts
• MPN: 0556004

Technical Specifications

• Size: 3/4 inch
• Connection Type: MNPT x FNPT
• Material: Brass
• Pressure Set Point: 150 psi
• Temperature Rating: up to 210°F
• Weight: 0.7222 pounds
• CSA Rating: 105,000 BTU/Hr
