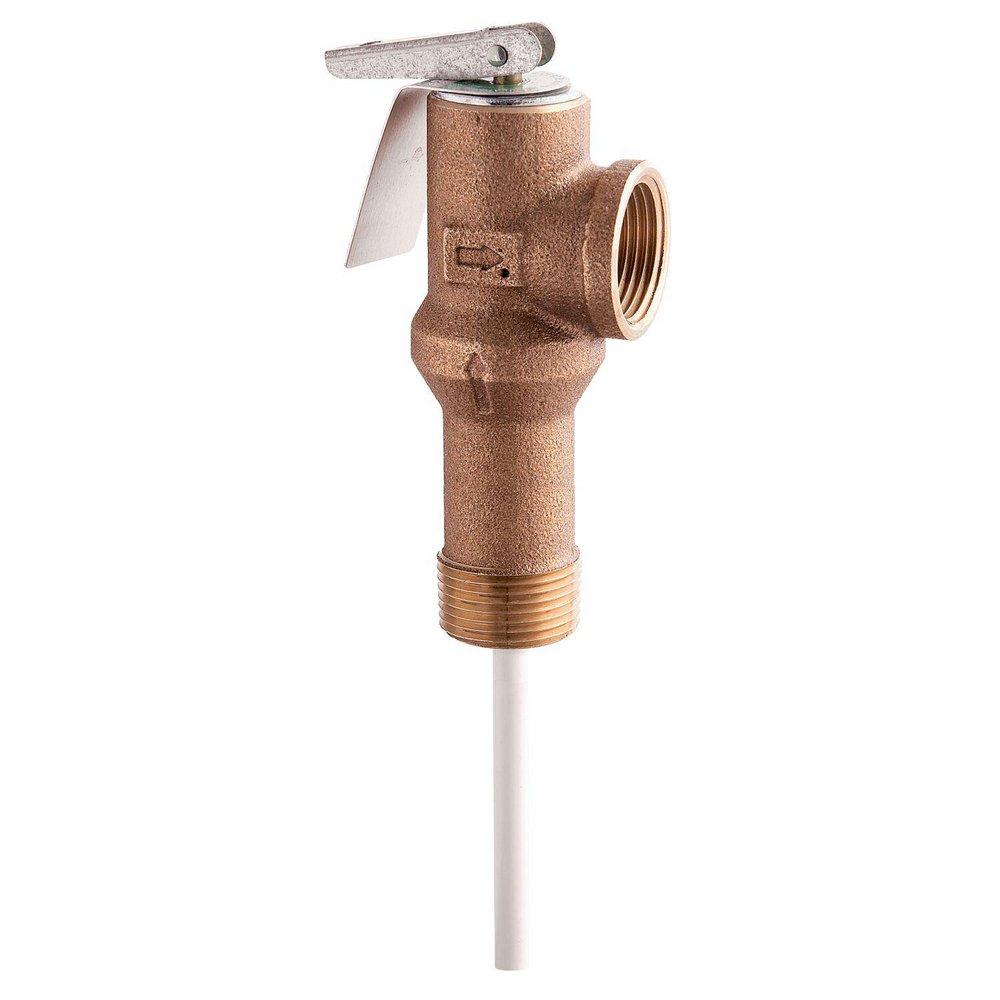

Watts 0556003 Temp/Press Relief Valve 150 3/4

Product Description

The Watts 0556003 Temp/Press Relief Valve 150 3/4 is essential for water heater and hot water storage tank applications. It provides automatic temperature and pressure protection for hot water supply tanks and heaters up to 105,000 BTU/hr. It features an extended shank for installation on water heaters with thick insulation, a bronze body with male NPT inlet and female NPT outlet connections, and a test lever for easy operation.

• Automatic temperature and pressure protection
• Extended shank for thick insulation installations
• Bronze body with NPT connections

Product Highlights

Designed to offer maximum safety, this Watts Temp/Press Relief Valve is suitable for water supply systems, ensuring they operate within safe temperature and pressure limits. Ideal for use in residential and commercial heating systems.

Product Information

Standard Information

• Brand: Watts
• MPN: 0556003
• Applications: Water heaters, hot water storage tanks
• Inlet Connection Size: 3/4 inch

Technical Specifications

• Material: Lead Free Copper Silicon Alloy
• Certification: CSA
• Pressure Relief Range: 75 to 150 psi
• Standard Pressure Settings: 75, 100, 125, or 150 psi
• Temperature Range (F): 210°F Max
• Thermostat Length: 3 inches
• BTU/hr: 105000
• Weight: 0.615 lbs
