Watts 0555135 3 LFFBVS-4 Ball Valve 400 psi WOG

Product Description

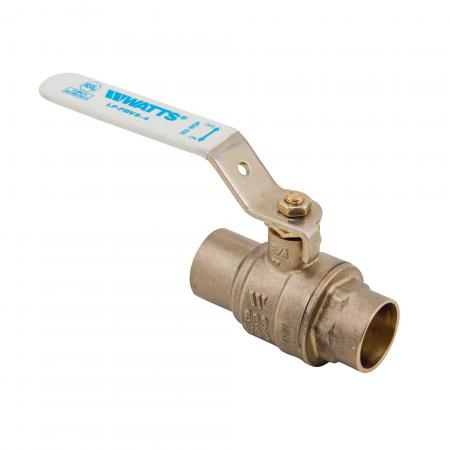

The Watts Regulator Company 0555135 is a two-piece ball valve designed for plumbing applications. It is built to handle nominal three-inch sizes and operates at a pressure rating of four hundred psi water over gas.

• Lead-free construction
• Full port design for optimal flow
• Solder end connection for secure fittings

Product Highlights

This ball valve is suitable for both commercial and residential use. It features a chrome-plated brass ball for durability and includes a fluorocarbon elastomer stem O-ring to prevent leaks. The adjustable stem packing gland extends the product's service life.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Type: 2-Piece

Technical Specifications

• Ball Material: Brass
• Body Material: Brass
• End Style: Solder
• Pressure Rating: 400 psi WOG
• Nominal Size: 3 in
• Orifice Size: 3 in
• Temperature Rating: -40 to 400 deg F
• Inlet to Outlet Length: 7-1/4 in
• Top to Inlet Center: 4-1/2 in
• Trim Material: Brass Stem and PTFE Seat
• Domestic/Import: Import
• Series: LFFBVS-4
• Softgoods Material: PTFE
• Finish: Polished Chrome
• Port Type: Full
