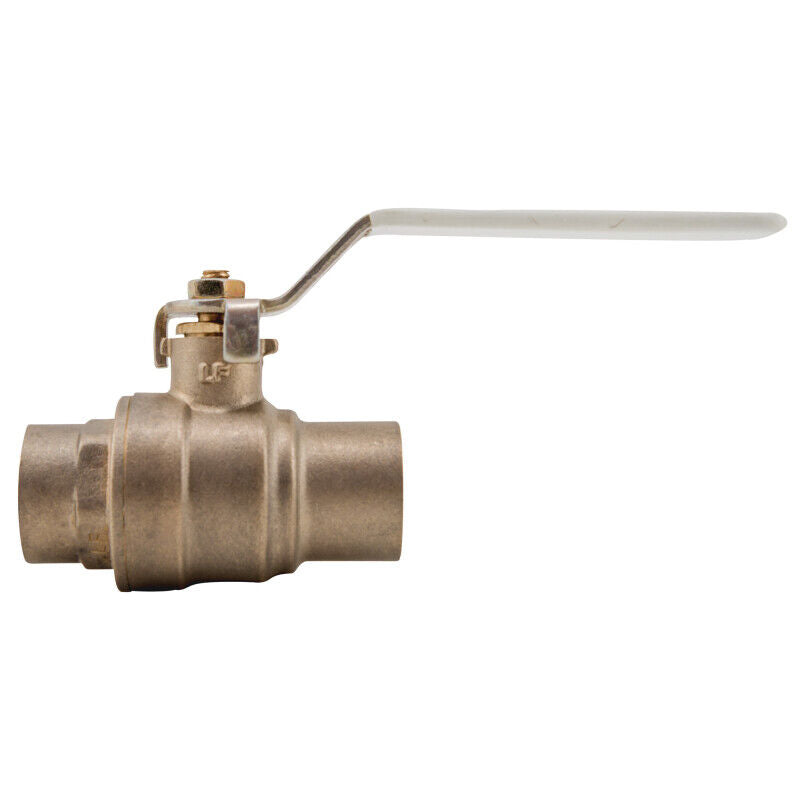

Watts 0555128 1/2 LFFBVS-4 Ball Valve Lead-Free

Product Description

The Watts 0555128 is a 1/2 inch lead-free ball valve designed for plumbing applications. This valve is made of brass and features a solder end connection for easy installation. It operates under a pressure rating of 600 psi WOG and can withstand temperatures ranging from -40 to 400 degrees Fahrenheit.

• Lead-free construction
• Full port for maximum flow
• Bottom loaded, blow-out proof stem

Product Highlights

The Watts ball valve is suitable for both commercial and residential applications. It meets NSF/ANSI 61-G standards and is cCSAus certified.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Standard Pack: Order quantity must be in multiples of 120

Technical Specifications

• Ball Material: Brass
• Body Material: Brass
• End Style: Solder
• Nominal Size: 1/2 inch
• Orifice Size: 1/2 inch
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Temperature Rating: -40 to 400 degrees Fahrenheit
• Inlet to Outlet Length: 2-1/16 inches
• Top to Inlet Center: 1-13/16 inches
• Trim Material: Brass Stem and PTFE Seat
