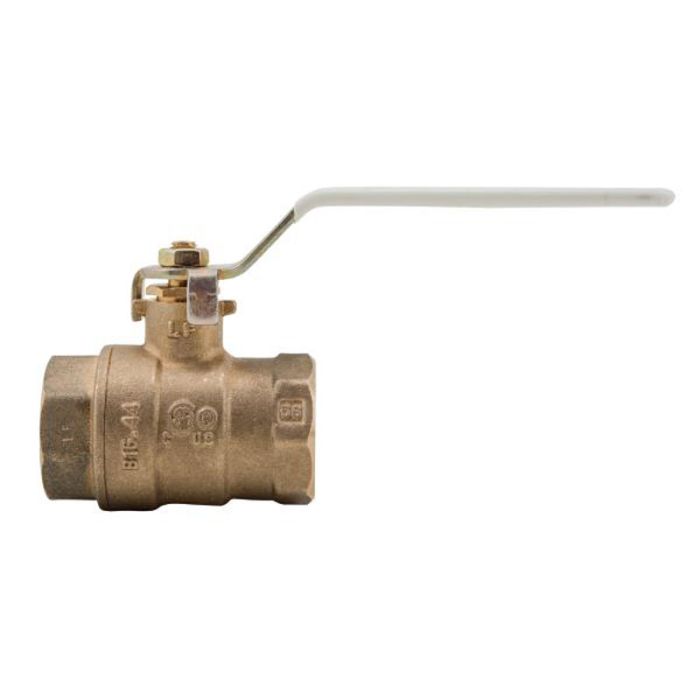

Watts 0555124 1 1/2 LFFBV-4 Lead-Free Full-Port Ball Valve

Product Description

The Watts Regulator Company offers the 0555124 model, a one and one-half inch (1-1/2 in) lead-free full-port ball valve. This ball valve features threaded end connections and is built to handle pressures up to six hundred psi WOG. The product operates effectively in temperatures ranging from negative forty to four hundred degrees Fahrenheit.

• Lead-free construction
• Full port for maximum flow
• Adjustable stem packing for longer service life

Product Highlights

This model is ideal for both commercial and residential applications. It is certified to NSF/ANSI 61-G for safe water usage, making it suitable for use in plumbing systems.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Model: 1-1/2 LFFBV-4

Technical Specifications

• Ball Material: Brass
• Body Material: Brass
• End Style: FNPT
• Pressure Rating: 600 psi WOG
• Temperature Rating: -40 to 400 deg F
• Inlet to Outlet Length: 3-7/16 in
• Orifice Size: 1-7/16 in
• Softgoods Material: PTFE
• Series: LFFBV-4
• Trim Material: Brass Stem and PTFE Seat
