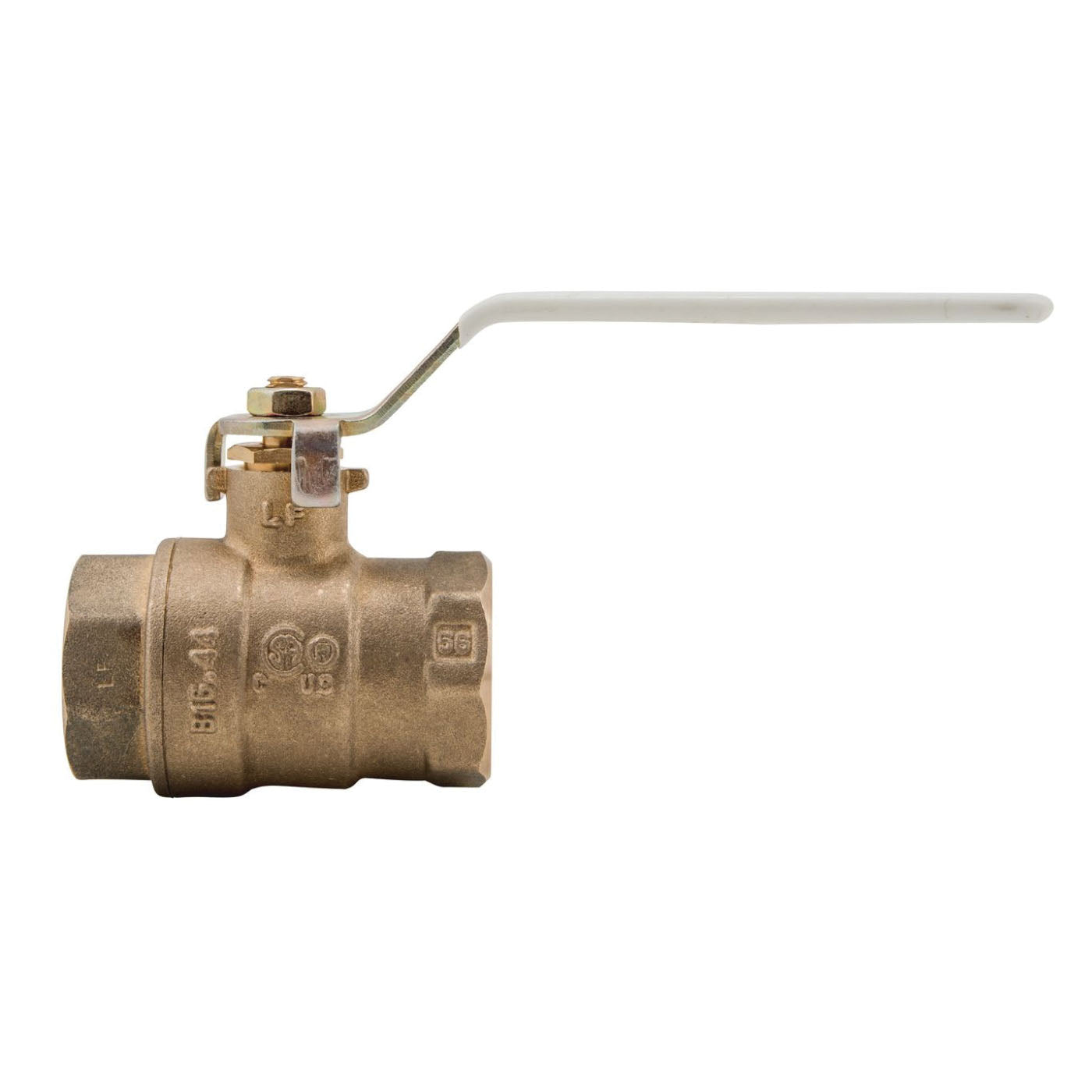

Watts 0555123 1 1/4 LFFBV-4 Full Port Ball Valve

Product Description

The Watts Regulator Company 0555123 1 1/4 LFFBV-4 is a two-piece lead-free ball valve designed for plumbing applications. It features a nominal size of one and one-fourth inches with NPT end style and is suitable for gases and liquids. This valve operates under a pressure rating of six hundred psi and can withstand temperatures from negative forty to four hundred degrees Fahrenheit.

• Lead-free construction
• Full port for improved flow
• Adjustable stem packing for extended service life

Product Highlights

This valve is ideal for both commercial and residential uses and is designed to be soft soldered into lines without disassembly.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Series: LFFBV-4

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Forged Copper Silicon Alloy
• Orifice Size: 1-3/16 inches
• Pressure Rating: 600 psi
• Temperature Rating: -40 to 400 degrees Fahrenheit
• Inlet to Outlet Length: 3-1/8 inches
• Top to Inlet Center: 2-1/2 inches
• Softgoods Material: PTFE/FKM
