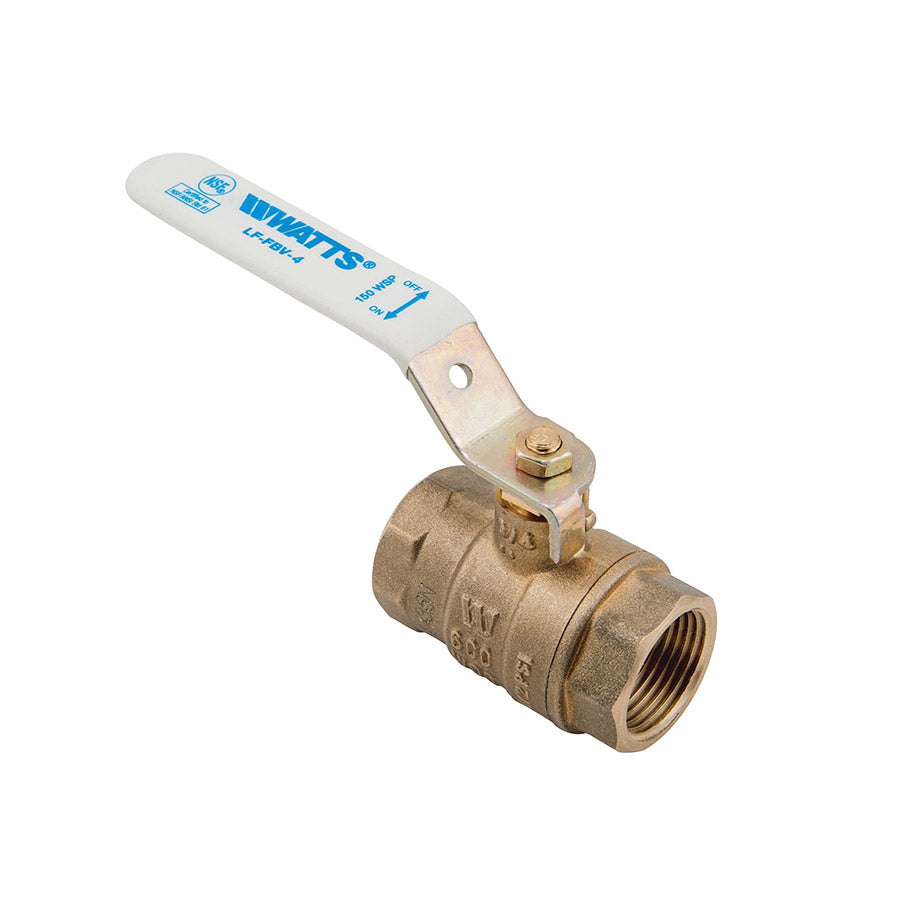

Watts 0555121 3/4 LFFBV-4 Lead-Free NPT Full Port Ball Valve

Product Description

The Watts Regulator Company 0555121 is a 3/4 inch LFFBV-4 ball valve. This two-piece valve features NPT end style and is designed for high-pressure applications up to 600 psi. It can handle temperatures ranging from -40 to 400 degrees Fahrenheit. This valve is suitable for gas and liquid media and has a full port design for optimal flow.

• Lead-free construction for safe drinking water applications.
• Full port design allows for maximum flow with minimal pressure drop.
• Threaded end connections for easy installation.

Product Highlights

This ball valve is ideal for residential and commercial plumbing needs. The valve can be easily soldered into pipelines without disassembly using low-temperature solder.

Product Information

Standard Information

• Brand: Watts Regulator Company
• MPN: 0555121

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Forged Copper Silicon Alloy
• End Style: NPT
• Port Type: Full
• Pressure Rating: 600 psi
• Nominal Size: 3/4 inch
• Orifice Size: 11/16 inch
• Temperature Rating: -40 to 400 degrees Fahrenheit
• Inlet to Outlet Length: 2-1/4 inch
• Softgoods Material: PTFE/FKM
• Series: LFFBV-4
