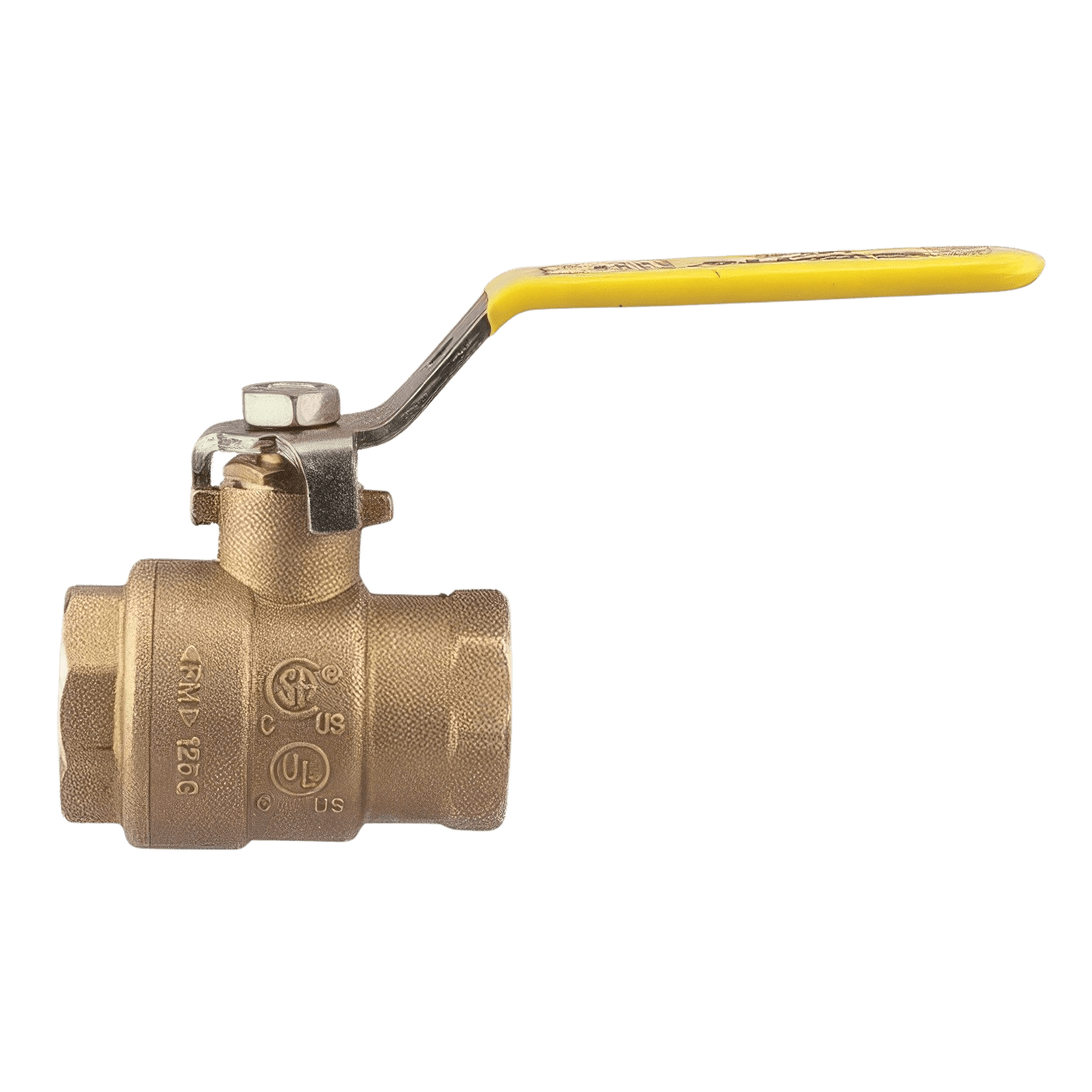

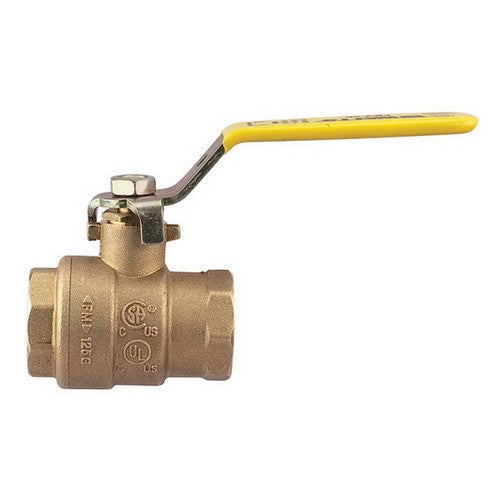

Watts 0555114 Watts LFFBVS-3C Full Port Brass Ball Valve 1-1/2 inch Sweat x Sweat

Product Description

The Watts Water Technologies 0555114 is a full port brass ball valve designed for various commercial and industrial applications. This valve features a nominal size of one and a half inches with a sweat x sweat connection. It operates under a maximum pressure of six hundred psi and up to one hundred fifty psi for steam applications. Ideal for water, oil, and gas media, it includes two ports with a one point twenty-five inch opening. The durable brass body and chrome plated lead free brass ball ensure longevity and safety in use.

• Lead free material for safe use with drinking water
• Temperature range from negative forty to four hundred degrees Fahrenheit
• Standard lever handle for easy operation

Product Highlights

This ball valve combines durability and safety, making it suitable for a range of fluids and gases.

Product Information

Standard Information

• Brand: Watts Water Technologies
• Part Number: 0555114

Technical Specifications

• Series: LFFBVS-3C
• Type: Full Port, Lead Free
• Nominal Size: 1-1/2 inch
• Connection Type: Sweat x Sweat
• Media: Water, Oil, and Gas
• Opening Size: 1.25 inch
• Body Material: Brass
• Seat: Virgin PTFE
• Ball Material: Chrome Plated Lead Free Brass
• Stem: Brass
• Packing: Virgin PTFE
• Construction: 2-Piece
• Actuation/Operator: Standard Lever Handle
• Dimensions: C: 3-3/16 inch; H1: 5-5/16 inch; L1: 4-1/4 inch
• Temperature Rating: -40 to 400 Deg F
