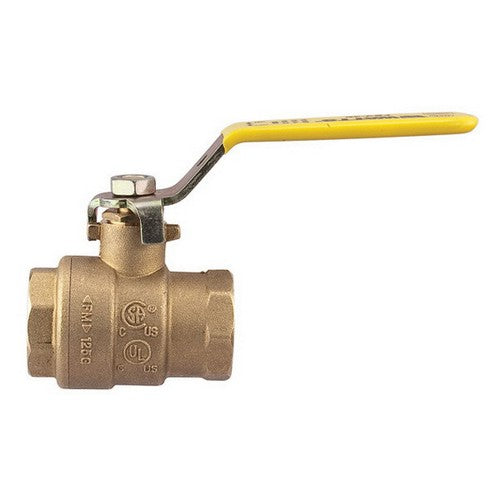

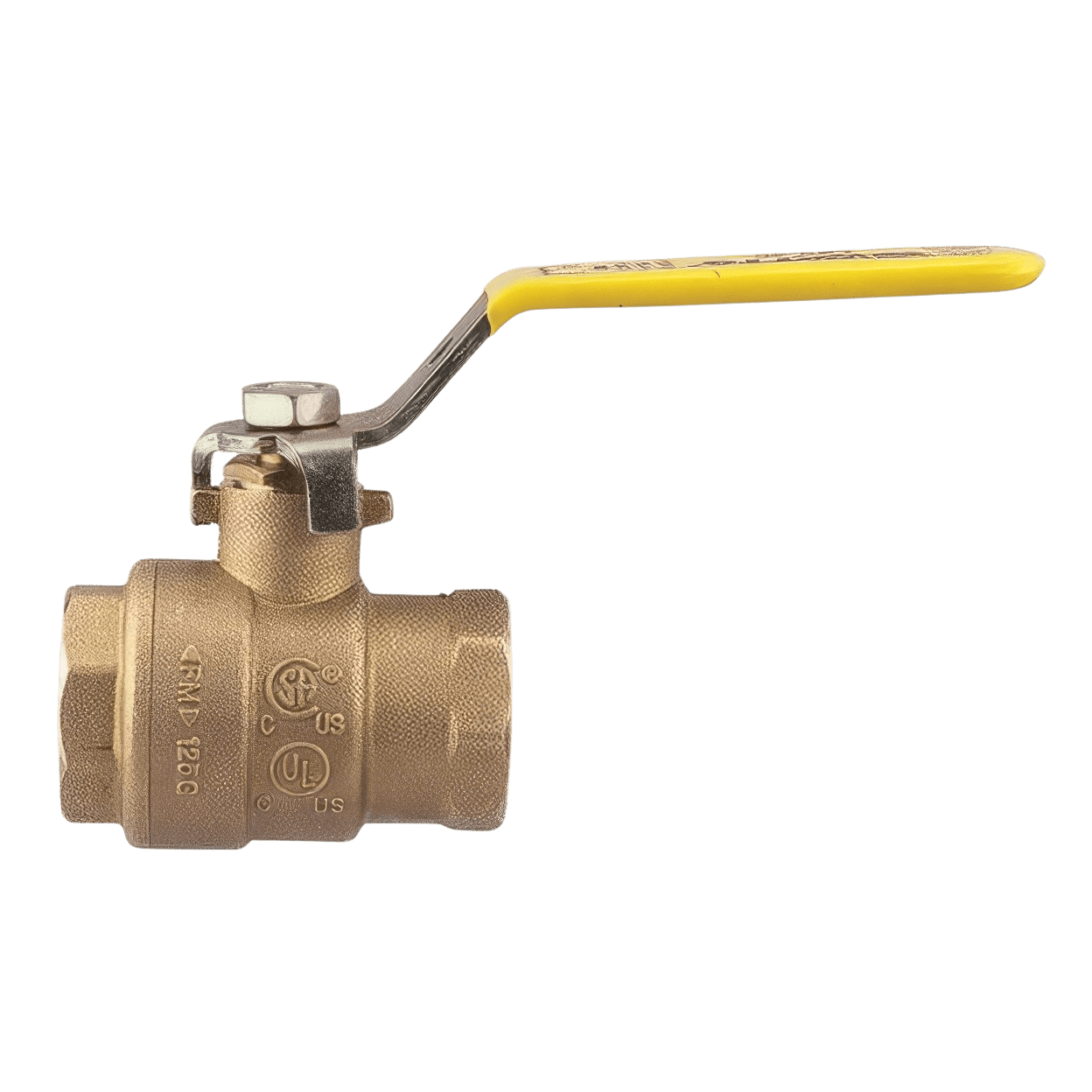

Watts 0555113 LFFBVS-3C Full Port Brass Ball Valve 1-1/4 inch Sweat x Sweat

Product Description

The Watts Water Technologies LFFBVS-3C is a full port brass ball valve with MPN 0555113. It features a sweat x sweat connection suitable for various applications involving water, oil, and gas. The valve can withstand a maximum pressure of 600 psi CWP and a steam pressure of 150 psi WSP, making it reliable for different industrial needs.

• Two-piece construction ensures strong durability.
• Lead-free brass body promotes safety and environmental standards.
• Temperature range spans from -40 to 400 degrees Fahrenheit.

Product Highlights

This valve is perfect for controlling the flow of liquids and gases in plumbing systems. It includes a standard lever handle for easy operation.

Product Information

Standard Information

• Brand: Watts Water Technologies
• MPN: 0555113

Technical Specifications

• Series: LFFBVS-3C
• Type: Full Port, Lead Free
• Nominal Size: 1-1/4 inch
• Connection Type: Sweat x Sweat
• Media: Water, Oil, and Gas
• Opening Size: 1.25 inch
• Body Material: Brass
• Seat: Virgin PTFE
• Ball Material: Chrome Plated Lead Free Brass
• Stem: Brass
• Packing: Virgin PTFE
• Construction: 2-Piece
• Actuation/Operator: Standard Lever Handle
• Dimensions: Dimension C: 2-13/16 inch; Dimension H1: 4-1/4 inch; Dimension L1: 3-11/16 inch
• Temperature Rating: -40 to 400 degrees Fahrenheit
