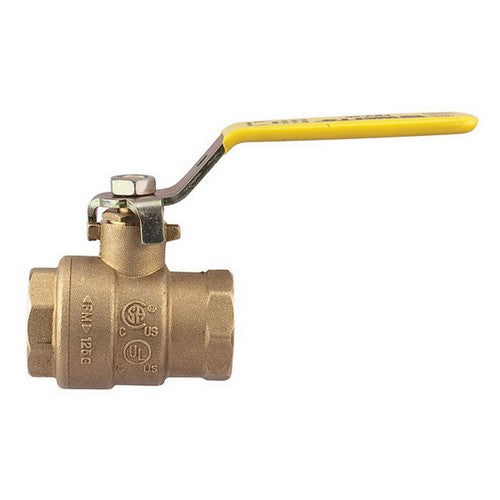

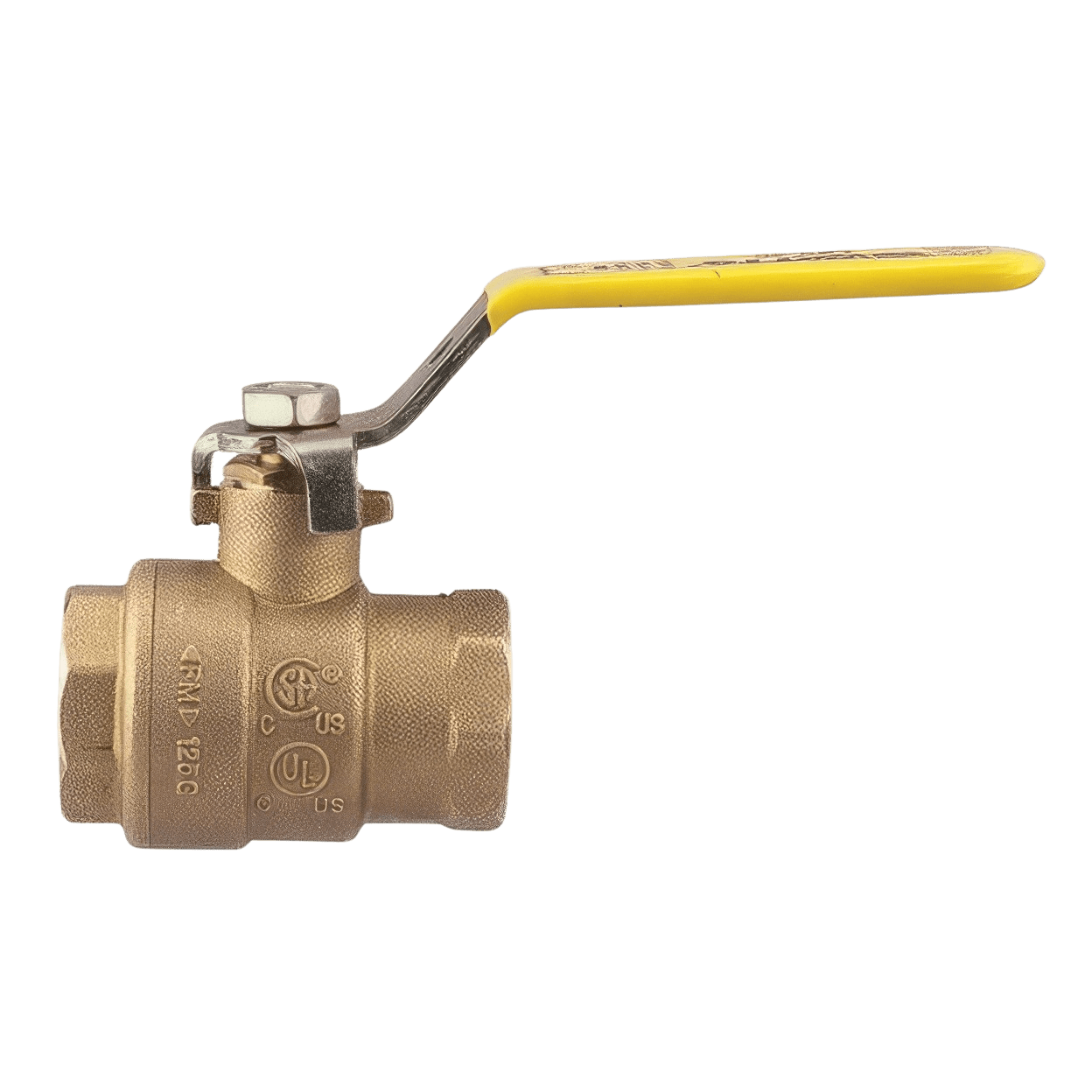

Watts 0555109 LFFBV-3C Full Port Brass Ball Valve 3 inch FIP x FIP

Product Description

The Watts Water Technologies LFFBV-3C, MPN 0555109, is a full port brass ball valve designed for various applications. This valve features a three inch nominal size and uses FIP x FIP connections.

• Lead free construction
• Rated for maximum pressures of four hundred psi non-shock and one hundred twenty-five psi for steam
• Temperature range from minus forty to four hundred degrees Fahrenheit

Product Highlights

The valve is made of a brass body with a chrome plated lead free brass ball.

Product Information

Standard Information

• Manufacturer: Watts Water Technologies
• Part Number: 0555109

Technical Specifications

• Series: LFFBV-3C
• Type: Full Port, Lead Free
• Nominal Size: 3 inch
• Connection Type: FIP x FIP
• Media: Water, Oil, and Gas
• Opening Size: 3 inch
• Body Material: Brass
• Seat: Virgin PTFE
• Ball Material: Chrome Plated Lead Free Brass
• Stem: Brass
• Packing: Virgin PTFE
• Construction: 2-Piece
• Actuation/Operator: Standard Lever Handle
• Dimensions: Dimension C: 4.5 inch; Dimension H: 7.75 inch; Dimension L: 6.06 inch
• Temperature Rating: -40 to 400 degrees Fahrenheit
