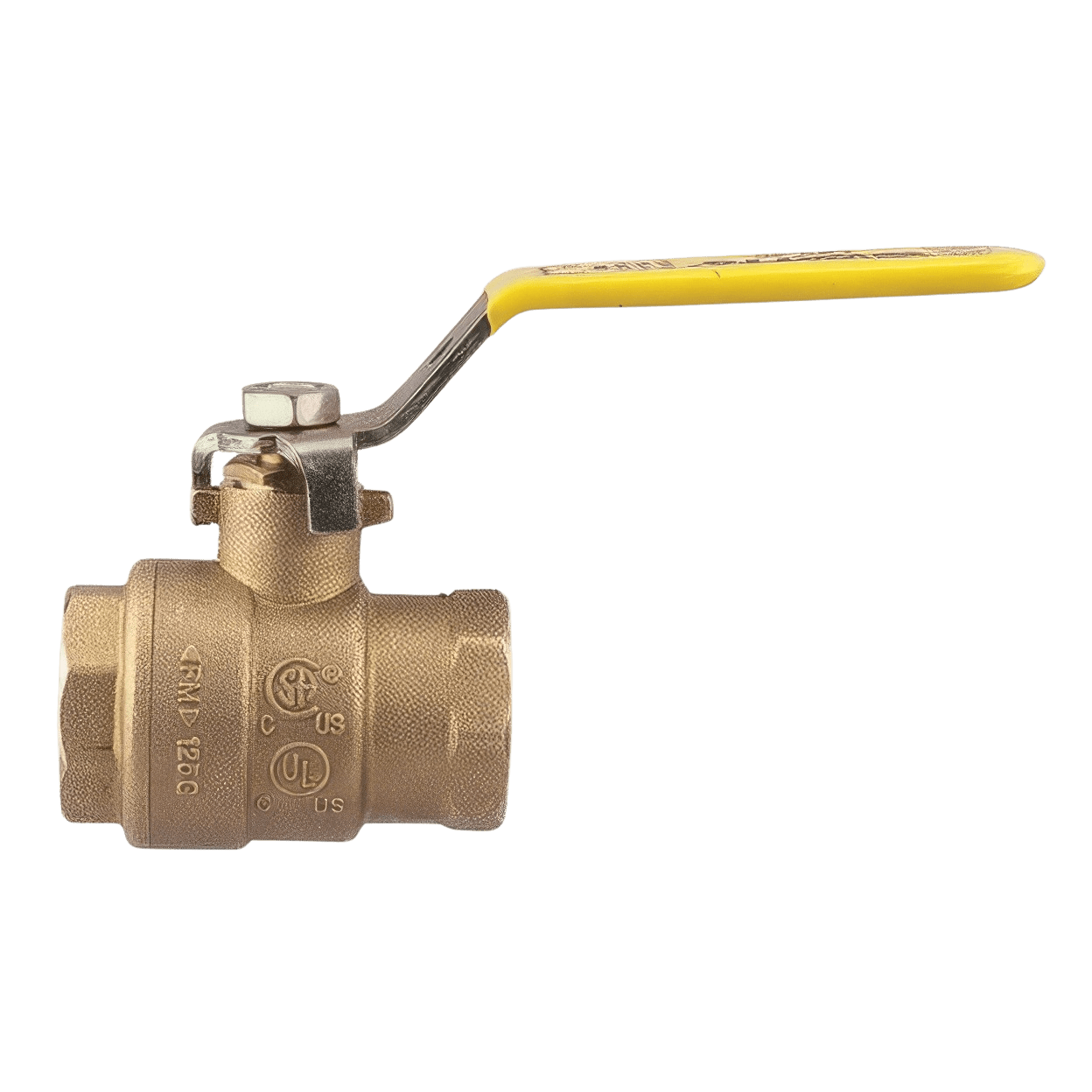

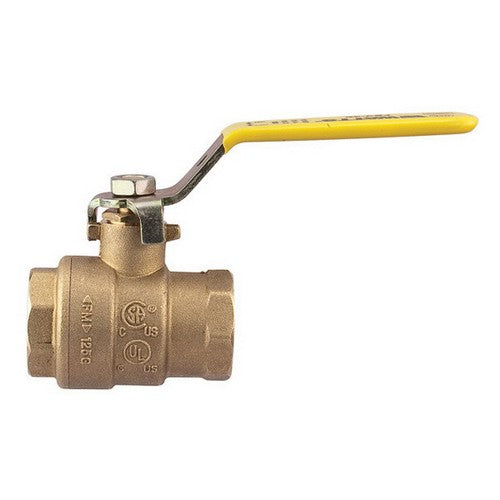

Watts 0555108 LFFBV-3C Full Port Brass Ball Valve, 2-1/2 inch, FIP x FIP

Product Description

The Watts Water Technologies LFFBV-3C Full Port Brass Ball Valve, MPN 0555108, is designed for plumbing systems requiring efficient control of water, oil, and gas. This valve features a two-and-a-half-inch size with FIP x FIP connections. The full port design allows for unrestricted flow, making it suitable for commercial and industrial applications.

• Lead-free brass construction ensures safety and compliance with drinking water standards.
• Operates at a maximum pressure of four hundred psi and steam pressure of one hundred twenty-five psi.
• Temperature rated from minus forty to four hundred degrees Fahrenheit.

Product Highlights

This valve is built with a chrome-plated lead-free brass ball and features a virgin PTFE seat and packing for durability. The bottom-loaded, blowout-proof stem design enhances reliability.

Product Information

Standard Information

• Brand: Watts Water Technologies
• Part Number: 0555108

Technical Specifications

• Series: LFFBV-3C
• Type: Full Port, Lead Free
• Nominal Size: 2-1/2 inch
• Connection Type: FIP x FIP
• Media: Water, Oil, and Gas
• Opening Size: 2.5 inch
• Body Material: Brass
• Seat: Virgin PTFE
• Ball Material: Chrome Plated Lead Free Brass
• Stem: Brass
• Packing: Virgin PTFE
• Construction: 2-Piece
• Actuation/Operator: Standard Lever Handle
• Dimensions: Dimension C: 4-1/16 inch; Dimension H: 7-3/8 inch; Dimension L: 5-5/16 inch
• Temperature Rating: -40 to 400 Deg F
