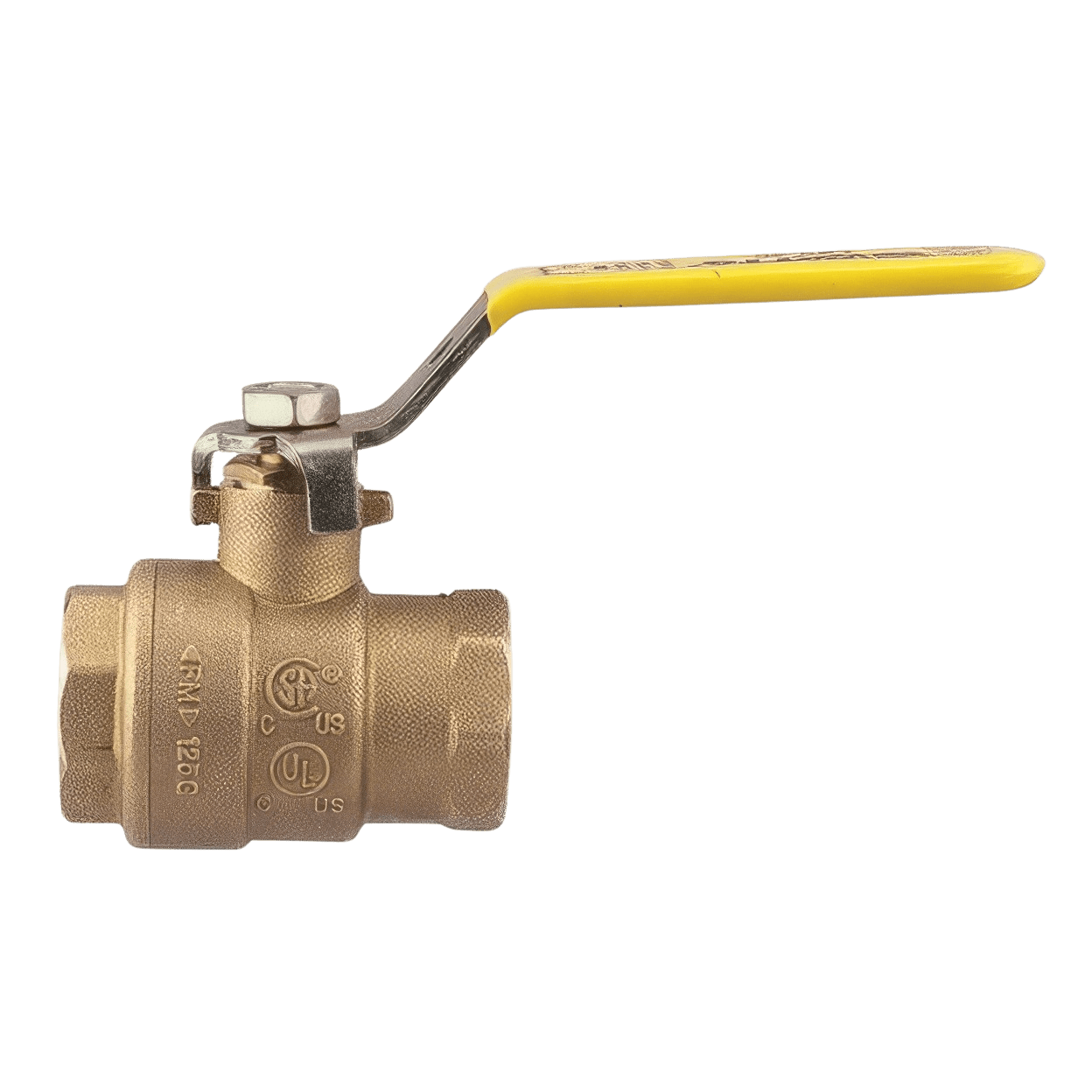

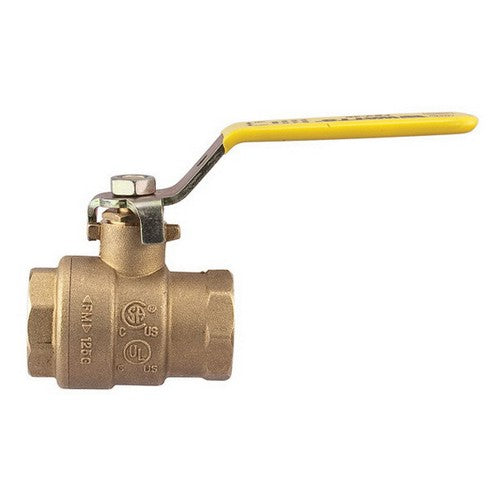

Watts 0555107 LFFBV-3C Full Port Brass Ball Valve, 2 inch, FIP x FIP

Product Description

Watts Water Technologies presents the MPN 0555107, a Full Port Brass Ball Valve in a two-inch size. This valve features Female Iron Pipe (FIP) connections, making it ideal for a variety of plumbing and industrial applications. It offers a maximum pressure of six hundred psi for cold water and one hundred fifty psi for steam. Constructed from lead-free brass, it is suitable for use with water, oil, and gas media.

• Full port design for optimal flow
• Lead-free construction for safety
• Temperature rating of negative forty to four hundred degrees Fahrenheit

Product Highlights

The Watts LFFBV-3C valve is designed for reliability and durability in demanding environments. Its two-piece construction and standard lever handle ensure ease of operation while maintaining superior performance.

Product Information

Standard Information

• Brand: Watts Water Technologies
• MPN: 0555107

Technical Specifications

• Nominal Size: 2 inch
• Connection Type: FIP x FIP
• Media: Water, Oil, and Gas
• Opening Size: 2 inch
• Body Material: Brass
• Ball Material: Chrome Plated Lead Free Brass
• Stem: Brass
• Packing: Virgin PTFE
• Construction: 2-Piece
• Actuation/Operator: Standard Lever Handle
• Temperature Rating: -40 to 400 Deg F
• Max. Pressure: 600 psi CWP
• Max. Steam Pressure: 150 psi WSP
