Watts 0555106 LFFBV-3C Full Port Brass Ball Valve 1-1/2 inch FIP x FIP

Product Description

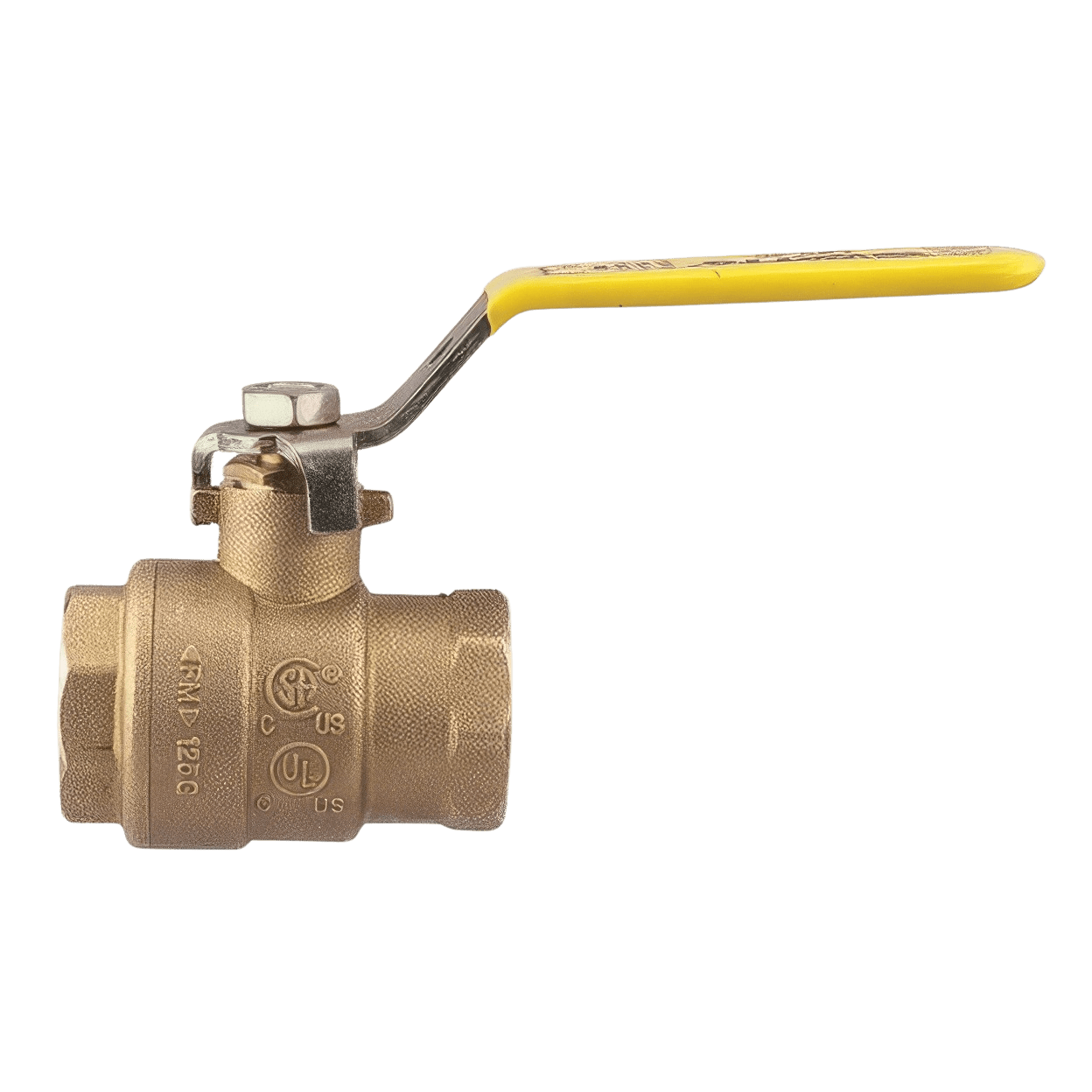

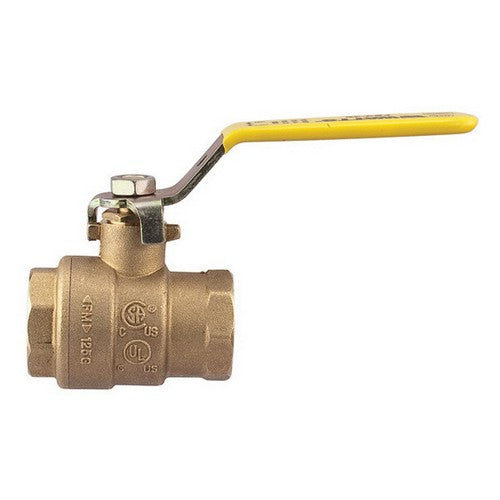

The Watts LFFBV-3C is a full port brass ball valve identified by MPN 0555106. This valve features a nominal size of one and one-half inches with female iron pipe end connections.

• Constructed from lead-free brass for safe water and gas handling
• Maximum pressure ratings of six hundred psi for non-shock and one hundred fifty psi for steam
• Operates over a temperature range of minus forty to four hundred degrees Fahrenheit

Product Highlights

This valve is suitable in various plumbing applications for controlling flow in systems using water, oil, or gas.

Product Information

Standard Information

• Brand: Watts Water Technologies
• MPN: 0555106

Technical Specifications

• Series: LFFBV-3C
• Type: Full Port, Lead Free
• Nominal Size: 1-1/2 inch
• Connection Type: FIP x FIP
• Media: Water, Oil, and Gas
• Opening Size: 1.25 inch
• Body Material: Brass
• Seat Material: Virgin PTFE
• Ball Material: Chrome Plated Lead Free Brass
• Stem: Brass
• Packing: Virgin PTFE
• Construction: 2-Piece
• Actuation/Operator: Standard Lever Handle
• Temperature Rating: -40 to 400 Deg F
