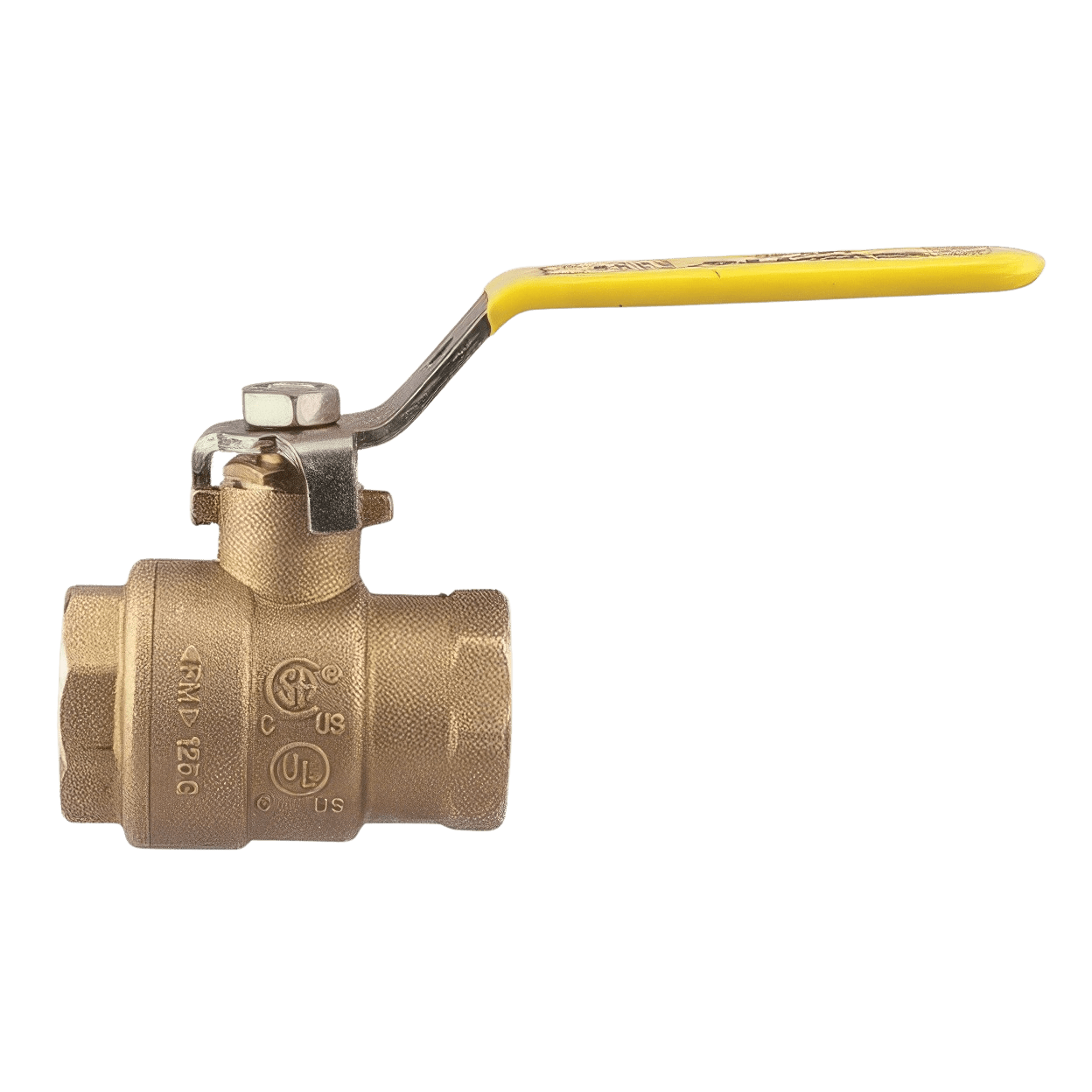

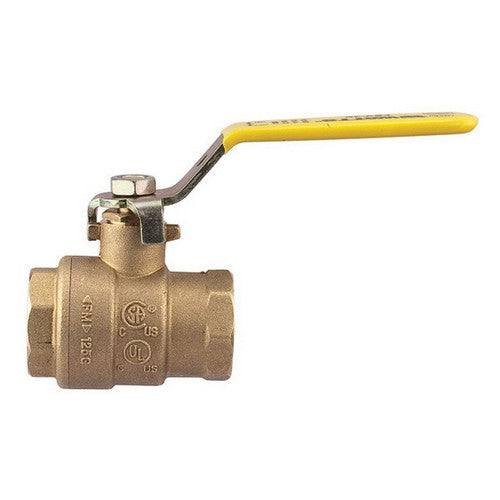

Watts 0555105 LFFBV-3C Full Port Brass Ball Valve 1-1/4 inch FIP x FIP

Product Description

The Watts LFFBV-3C Full Port Brass Ball Valve, MPN 0555105, is designed for reliable control of fluids in various plumbing applications. This valve has a nominal size of one and one-fourth inch with female iron pipe connections. It supports a maximum pressure of six hundred psi CWP and a steam pressure of one hundred fifty psi WSP. It is suitable for use with water, oil, and gas media.

• Full port design allows for maximum flow.
• Lead-free construction for safe use in potable water applications.
• Standard lever handle for easy operation.

Product Highlights

The LFFBV-3C series is ideal for commercial and industrial applications, featuring a two-piece brass body and virgin PTFE seats, ensuring durability and long service life.

Product Information

Standard Information

• Brand: Watts Water Technologies
• Part Number: 0555105

Technical Specifications

• Nominal Size: 1-1/4 inch
• Connection Type: FIP x FIP
• Max Pressure: 600 psi CWP
• Max Steam Pressure: 150 psi WSP
• Body Material: Brass
• Seat Material: Virgin PTFE
• Ball Material: Chrome Plated Lead Free Brass
• Stem: Brass
• Packing: Virgin PTFE
• Construction: 2-Piece
• Actuation/Operator: Standard Lever Handle
• Temperature Rating: -40 to 400 Deg F
• Dimensions: Dimension C: 2-13/16 inch; Dimension H: 4-1/4 inch; Dimension L: 3-3/16 inch
